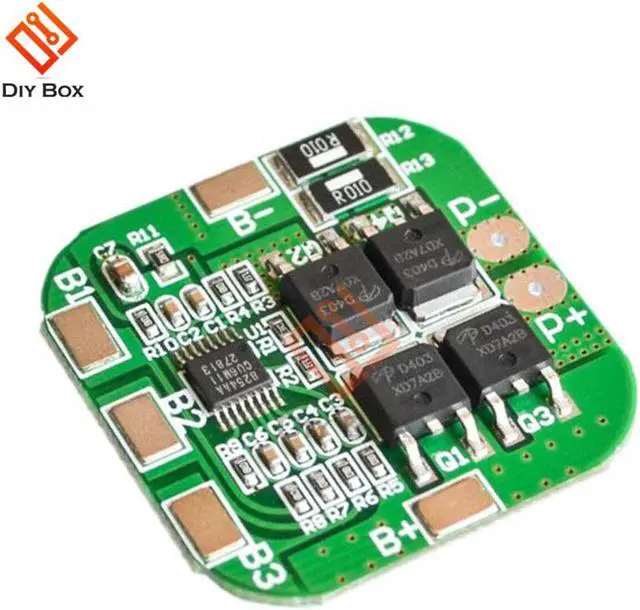

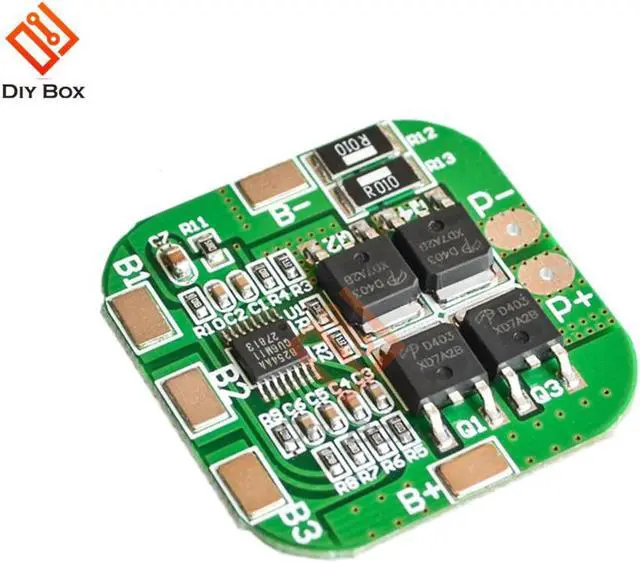

5 pcs/lot BMS 4S 14.8V/16.8V 20A 18650 Li-ion Charge Protection Board Balancer for LicoO2 Limn2O4 Charging

Certification:NONE
Accessory Type:Charger Accessories
Origin:CN(Origin)
Model Number:18650 Lithium protection board

5 pcs/lot BMS 4S 14.8V/16.8V 20A 18650 Li-ion Charge Protection Board Balancer for LicoO2 Limn2O4 Charging
4 series 18650 16.8V 16V 14.8V
14.8V (Li-ion 18650 or li-ion rated voltage)
16.8V (Li-ion full charge voltage)
14.4V ( Lipo pack rated voltage)
NOTE:
1) this board is not suit high power electronic tools, if use for screwdrier and drill, please don't buy
2)Above 3A device,means the battry discharge rate is more than 3C.
1C rated , 2000mah equals 2ah*1=2A max working current.
3C rated means 2ahx3=6A Max working current.
Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the charge and discharge;
5) low standby current consumption.
4S LI-ION BMS ParameterS:
Over Charge Voltage:4.25-4.35v±0.05v
Over Discharge Voltage: 2.3-3.0v±0.05v
Max working current:10A
Max Peak current:20A
Working Temperature:-40--- 50
Storage Temperature:-40-- 80
Small current:6uA
Life cycle:50000hours
Resistance:45m
Short cut Protection:Protectable ,change for repair Size:35*35*3.0mm

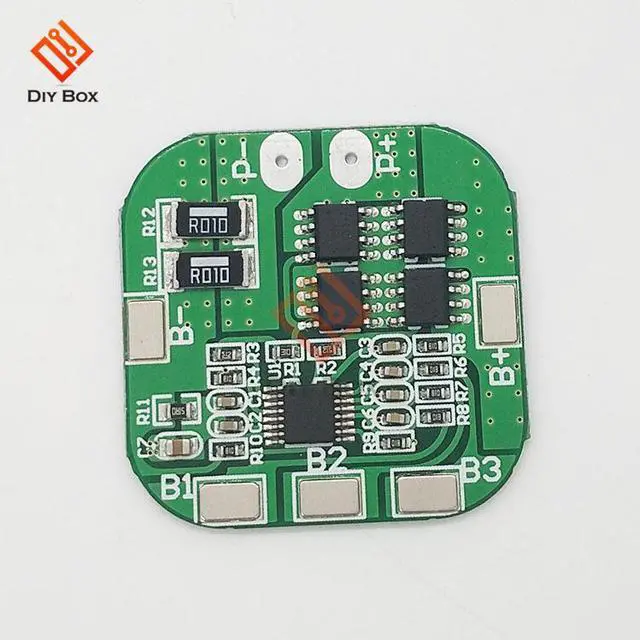

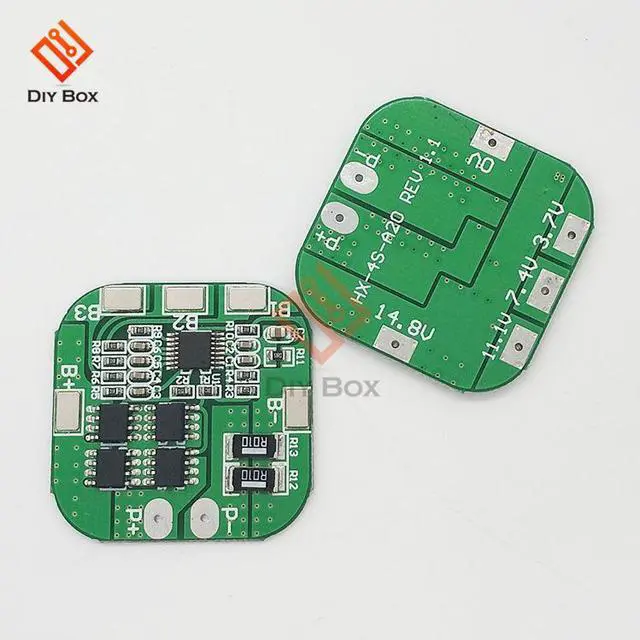

BMS solder instruction:
B connected positive;
B1 the connect point between 1 and 2
B2 connect the point between 2 and 3
B3 Connect the point between 3 and 4
B- connect to negative end
P- connection charge / discharge positive;
P- connection charge / discharge negative
Package Include:
1*5 pcs/lot BMS 4S 14.8V/16.8V 20A 18650 Li-ion Charge Protection Board
Note:It does not include .
