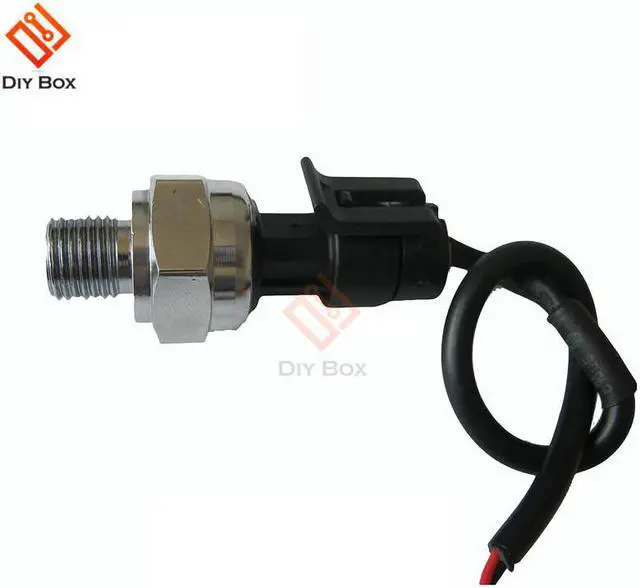

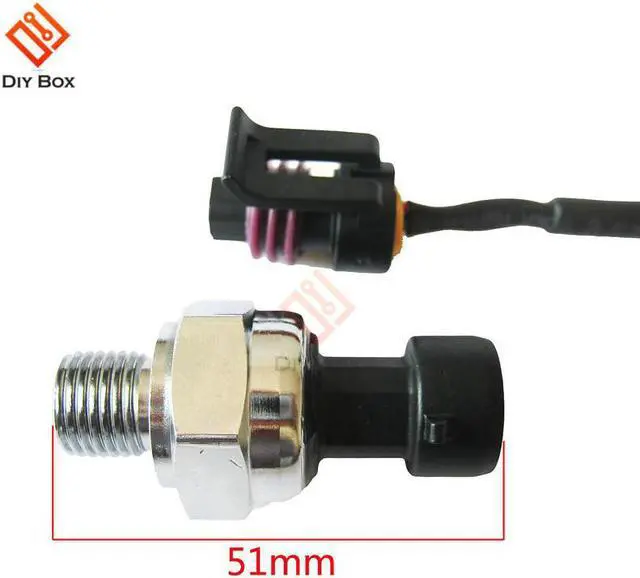

DC 5V G1/4 Pressure Sensor Transmitter Pressure Transducer 1.2 MPa 174 PSI For Water Gas Oil
- DC 5V G1/4 Pressure Sensor Transmitter Pressure Transducer 1.2 MPa 174 PSI For Water Gas Oil
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:DC 5V G1/4 Transmitter Pressure Transducer
DC 5V G1/4 Pressure Sensor Transmitter Pressure Transducer 1.2 MPa 174 PSI For Water Gas Oil

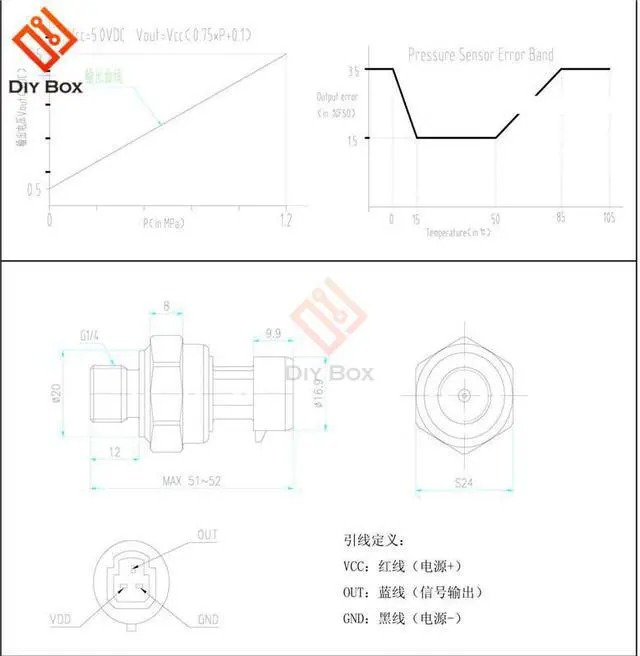

Parameter:
Operating voltage: 5.0 VDC
Output voltage: 0.5-4.5 VDC
Working current:
Working pressure range: 0-1.2 MPa
Maximum pressure: 2.4 MPa
Breaking pressure: 3.0 MPa
Operating temperature range: 0-85 degrees Celsius
Storage temperature range: 0-100 degrees Celsius
Measurement error: + _ 1.5% FSO
Temperature range error: + _3.5% FSO
Response time:
Cycle life: 500,000
Model Number:DC 5V G1/4 Transmitter Pressure Transducer
DC 5V G1/4 Pressure Sensor Transmitter Pressure Transducer 1.2 MPa 174 PSI For Water Gas Oil
Parameter:
Operating voltage: 5.0 VDC
Output voltage: 0.5-4.5 VDC
Working current:
Working pressure range: 0-1.2 MPa
Maximum pressure: 2.4 MPa
Breaking pressure: 3.0 MPa
Operating temperature range: 0-85 degrees Celsius
Storage temperature range: 0-100 degrees Celsius
Measurement error: + _ 1.5% FSO
Temperature range error: + _3.5% FSO
Response time:
Cycle life: 500,000
