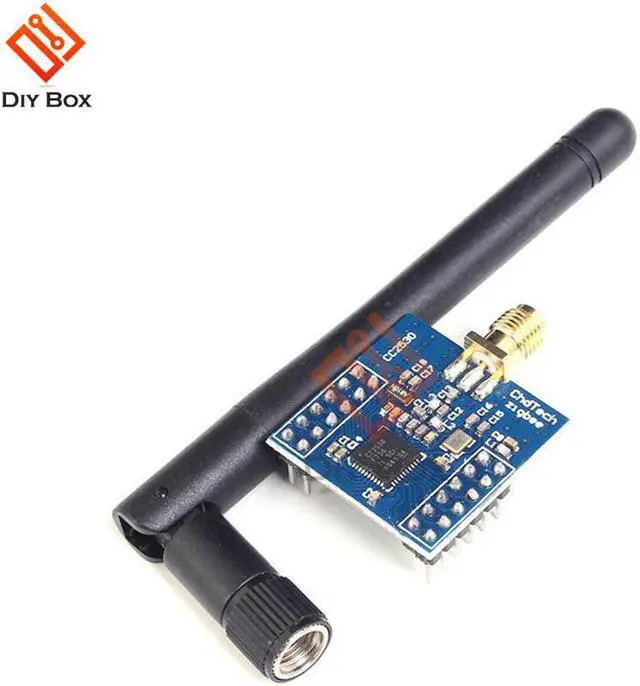

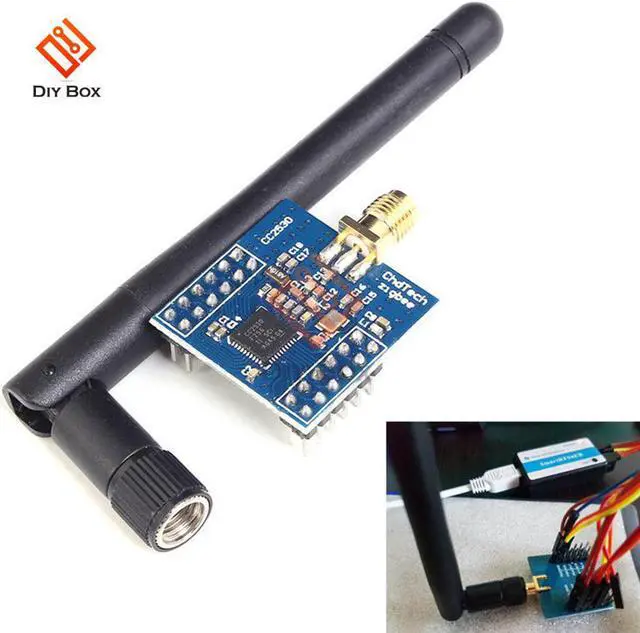

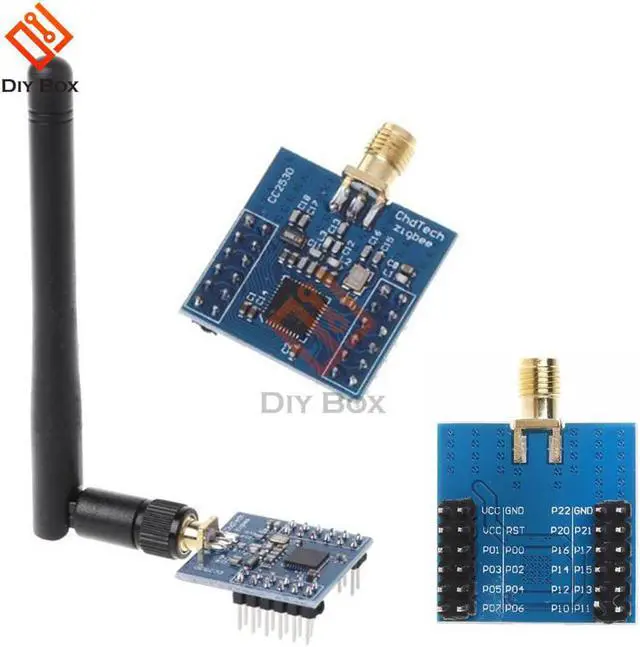

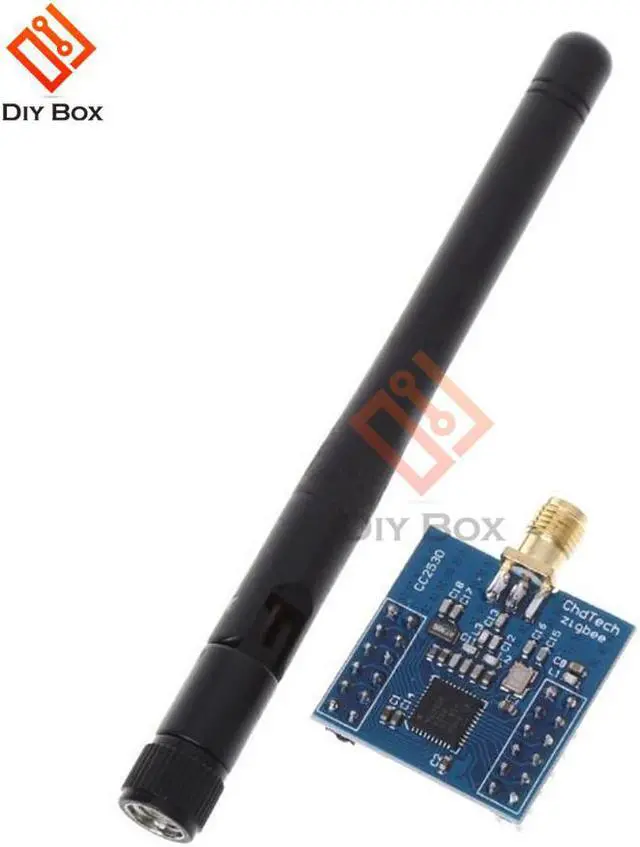

Zigbee CC2530 Zigbee Module UART Wireless Core Board Development Board CC2530F256 Serial Port Wireless Module 2.4GHz

Demo Board Type:FPGA
Certification:NONE
Origin:CN(Origin)
Model Number:Zigbee module Ti CC2530 Wireless Module
Intergrated Feature:WiFi 802.11b/g/n

Product Introduction:
1.Frequency:24MHz
2.Flash:Up to 256KB
3.SRAM:8kB
4.GPIO:21
5.SPI:1
6.UART:1
7.ADC:12-bit,8 channel
8.Min VCC:2V
9.Max VCC:3.6V
10.Standby Power:0.4uA
11.Wakeup Time From Standby:500us
12.Operating Temperature Range:-40~125
13.RF Standard Supported:ZigBee/6LoWPAN/802.15.4 MAC
14.CPU Core:8051
15.Security:128-bit AES
16.Antenna Connection:yes
17.RX Current:20.5mA (Lowest)
18.Frequency Bands:2394-2507MHz
Features:
1.RF/Layout
2.2.4-GHz IEEE 802.15.4 Compliant RF Transceiver
3.Excellent Receiver Sensitivity and Robustness to Interference
4.Programmable Output Power Up to 4.5 dBm
5.Very Few External Components
Key Applications:
1.2.4-GHz IEEE 802.15.4 Systems
2.RF4CE Remote Control Systems (64-KB Flash and Higher)
3.ZigBee Systems (256-KB Flash)
4.Home/Building Automation
5.Lighting Systems
6.Industrial Control and Monitoring
7.Low-Power Wireless Sensor Networks
8.Consumer Electronics
9.Health Care
