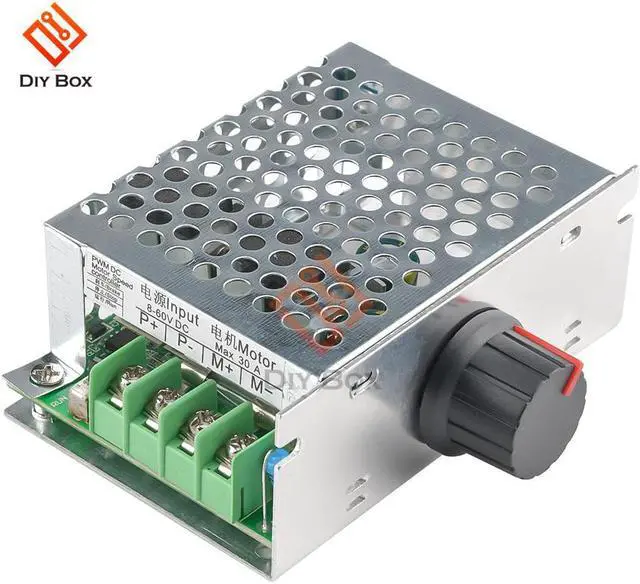

DC 8-60V PWM DC Brush Motor Speed Controller LED Dimming Control 30A Motor Governor with Aluminum Shell

Origin:CN(Origin)
Model Number:PWM Brushed Motor Speed Controller

Product selling point:
1. Wide voltage 8-60V high current peak value 30A design, wide application range
2. With run, stop and brake function is different
3. The circuit is optimized for the design, the duty cycle adjustment range is wide, the adjustment motor is smooth, there is no shower noise, and there is no vibration
4. With power indicator, the circuit design is stable and suitable for long-term work.

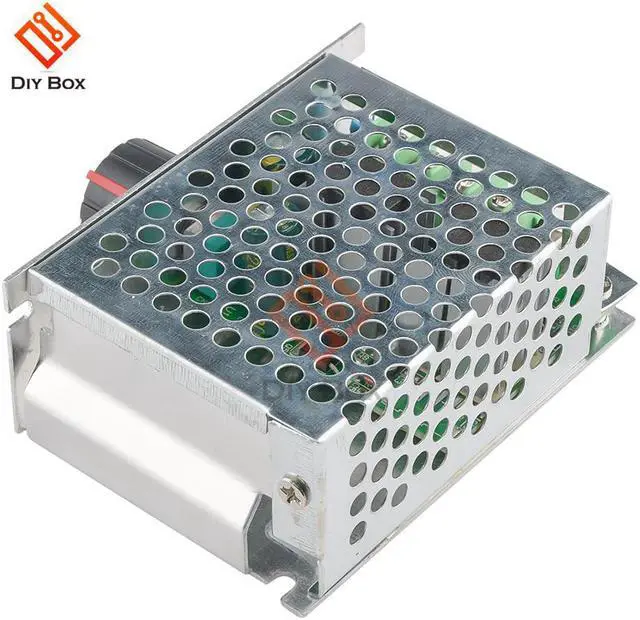

5. Adopt imported high-voltage MOS tube with fuse, standard aluminum shell to protect internal circuits and components for long-term durability
Product holding parameters:
Applicable voltage range: DC 8-60V (60V is the highest working voltage, please leave a margin)
Driving current: the maximum peak value is 30A (the working voltage and high current should be relatively reduced, please use it with the power)
Control power: recommended 12V 250W, 24V 300W, 36V 360W, 48V 400W
Duty cycle adjustable range: about 1%-100%
PWM frequency: 12KHZ

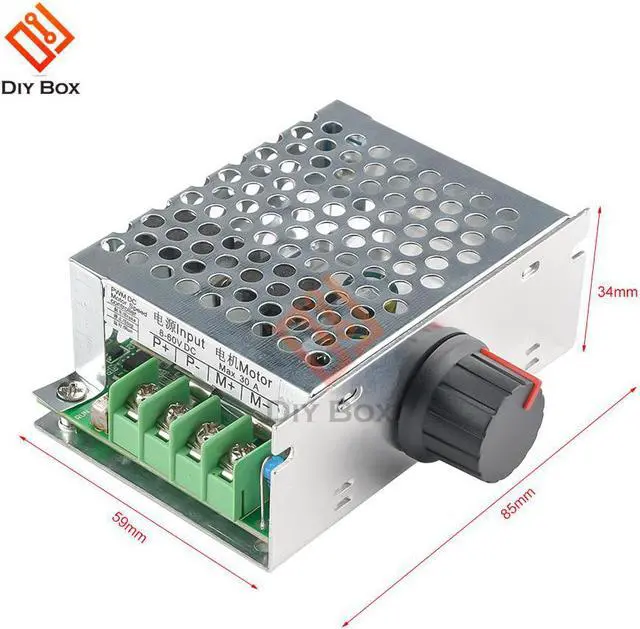

Shell size: 85MM*59mm*34MM Adjust potentiometer opening 8MM button protruding height 16MM
Full instructions and precautions:
1. Please understand the product parameters first, if you have any questions, please contact us as soon as possible.
2. This product is a DC brush motor speed controller. It needs to be equipped with a DC power supply to supply power to the speed controller. It cannot be connected to AC power and cannot drive a brushless motor.

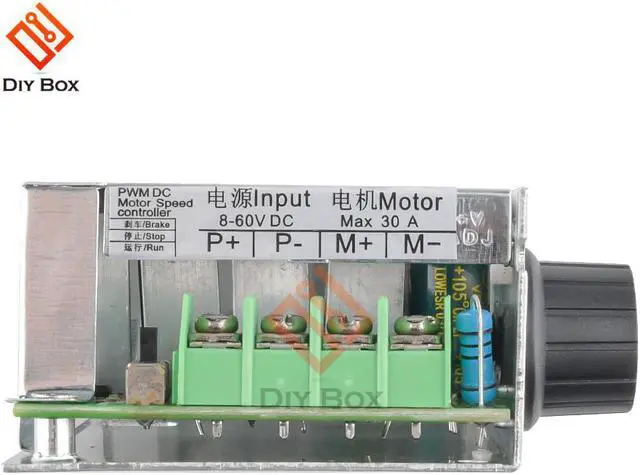

3. Before powering on the wiring, please read the wiring label clearly, the input is direct current, the positive and negative poles can not be mistaken, remember! ! ! The output connection to the motor (motor) does not need to be positive or negative. If the running direction is wrong, please exchange the two wires of the motor.
Package Included:
1* Motor governor
