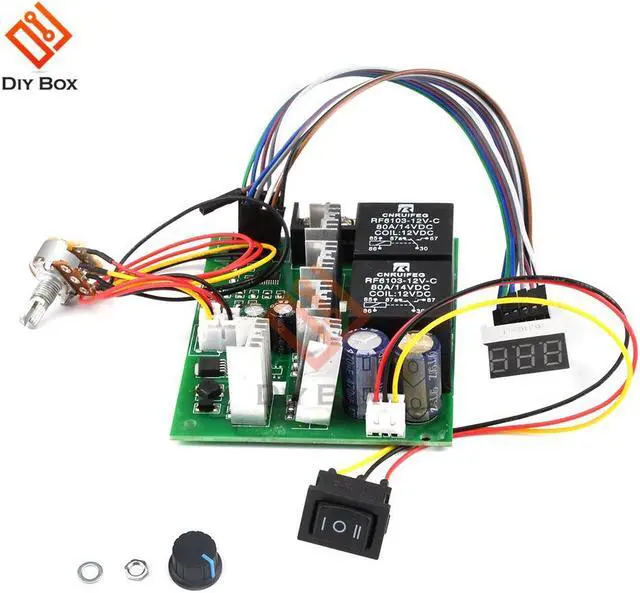

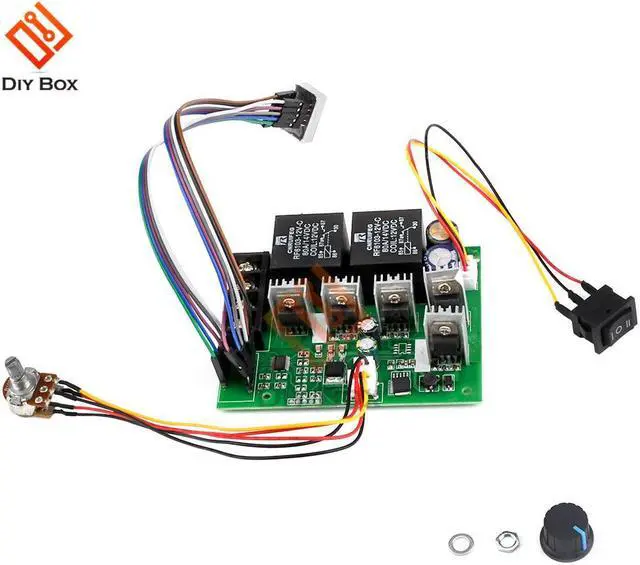

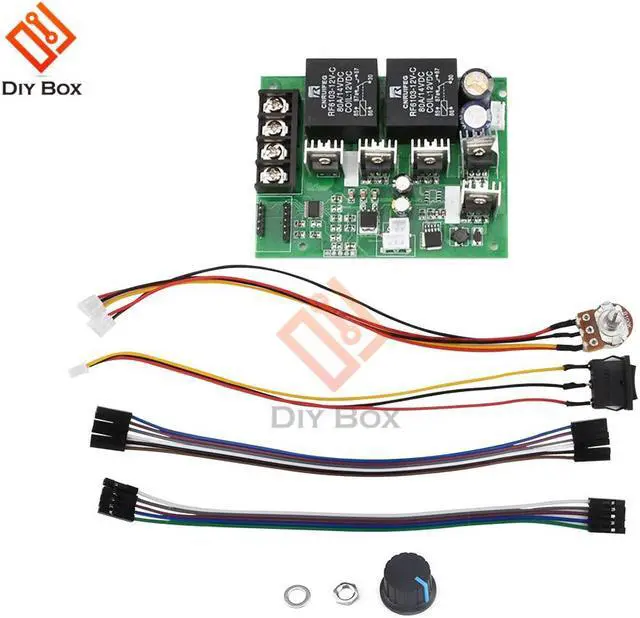

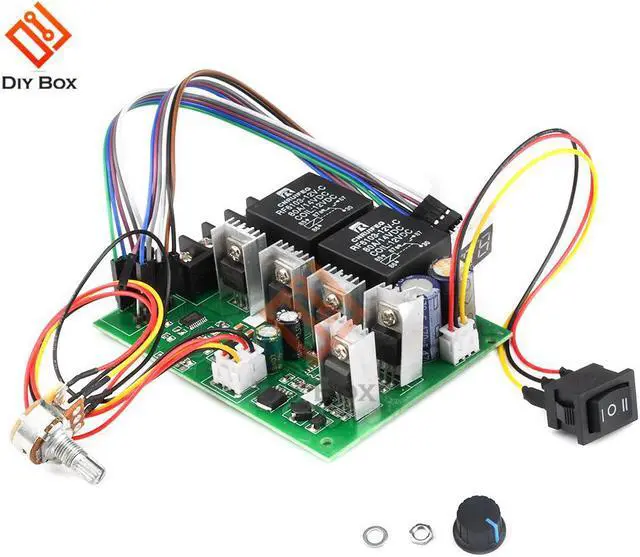

DC 10-50V PWM Speed Controller DC Motor Governor LED Digital Display 40A 12V/24V/36V/48V Adjustable Switch Drive Board Module
- DC 10-50V PWM Speed Controller DC Motor Governor LED Digital Display 40A 12V/24V/36V/48V Adjustable Switch Drive Board Module
+
+
Overview
Specs
Reviews
Certification:NONE
Smart home platform:NONE
Origin:CN(Origin)
Model Number:DC 10-50V PWM Speed Controller
model:DC Motor PWM Speed Controlle
Maximum current:60A
Continuous current:40A
Speed range:0-100%
Control frequency:15KHZ
DC 10-50V PWM Speed Controller DC Motor Governor LED Digital Display 40A 12V/24V/36V/48V Adjustable Switch Drive Board Module
Description:
Input voltage: DC10-55V (equal to the rated voltage of the motor)
Output voltage: linear under load
Maximum current: 60A
Continuous current: 40A
Speed regulation type: current regulation
speed regulation mode: potentiometer (linear)
Support motor: DC brush motor
Forward rotation reverse: Support
Speed range: 0--100%
Control frequency: 15KHZ
Wiring type: terminal Knob
specification: 100K (with switch)
Wiring type: fence terminal block
Product weight: 170g
Motherboard size: 100MM*76MM*28MM
Package include:
1*PWM DC Motor Speed Controller
Smart home platform:NONE
Origin:CN(Origin)
Model Number:DC 10-50V PWM Speed Controller
model:DC Motor PWM Speed Controlle
Maximum current:60A
Continuous current:40A
Speed range:0-100%
Control frequency:15KHZ
DC 10-50V PWM Speed Controller DC Motor Governor LED Digital Display 40A 12V/24V/36V/48V Adjustable Switch Drive Board Module
Description:
Input voltage: DC10-55V (equal to the rated voltage of the motor)
Output voltage: linear under load
Maximum current: 60A
Continuous current: 40A
Speed regulation type: current regulation
speed regulation mode: potentiometer (linear)
Support motor: DC brush motor
Forward rotation reverse: Support
Speed range: 0--100%
Control frequency: 15KHZ
Wiring type: terminal Knob
specification: 100K (with switch)
Wiring type: fence terminal block
Product weight: 170g
Motherboard size: 100MM*76MM*28MM
Package include:
1*PWM DC Motor Speed Controller
