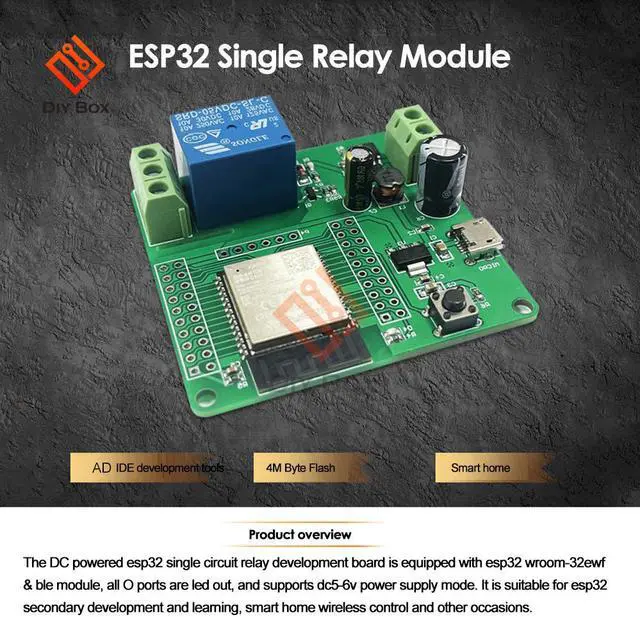

ESP32-WROOM-32E Development Board 1 Channel Relay Module DC 7-60V Micro USB 5V Output Switch Signal 4M Byte Flash

Demo Board Type:FPGA
Certification:NONE
Origin:CN(Origin)
Model Number:ESP32-WROOM Development Board Single Relay Module DC7-60V

Features:
1: Widely used
2: Suitable for ESP32 secondary development learning, smart home wireless control and other occasions
3: Onboard mature and stable ESP32-WROOM-32E module, large capacity 4M Byte Flash;
4: Power supply mode supports DC7-60V and micro USB 5V;
5: Simple to use, with operating instructions

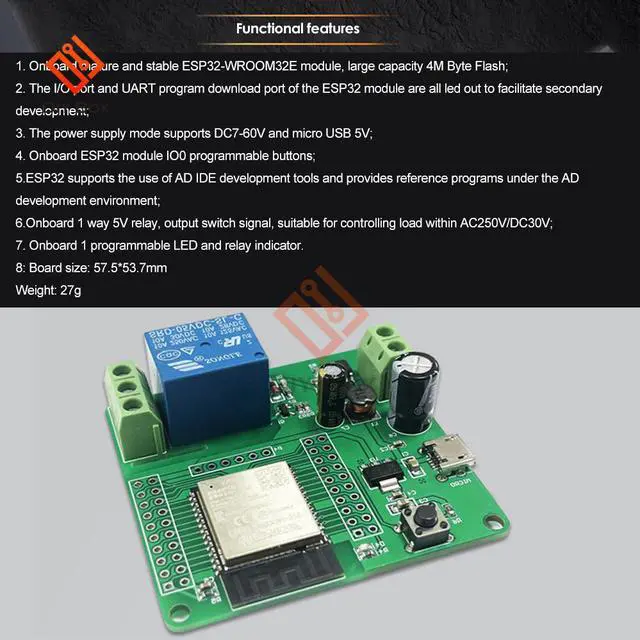

Function:
1. On-board mature and stable ESP32-WROOM-32E module, large capacity 4M Byte Flash;

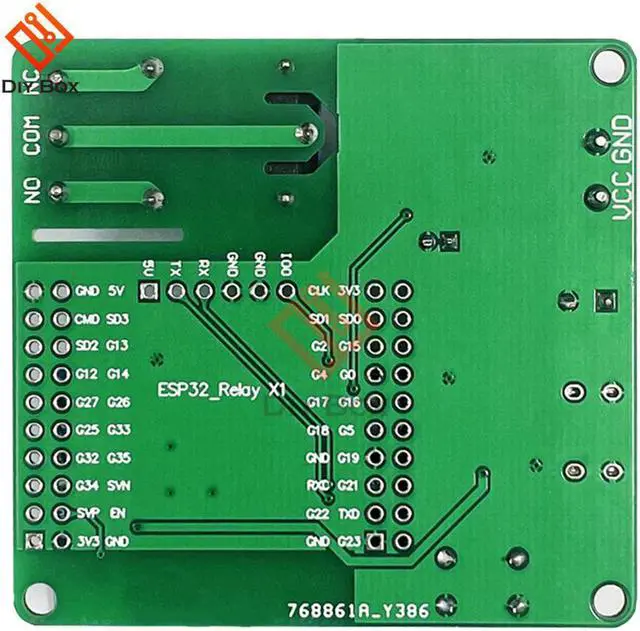

2. The I/O port and UART program download port of the ESP32 module are all led out to facilitate secondary development;
3. The power supply mode supports DC7-60V and micro USB 5V;
4. Onboard ESP32 module IO0 programmable buttons;
5.ESP32 supports the use of AD IDE development tools and provides reference programs under the AD development environment;
6.Onboard 1 5V relay, output switch signal, suitable for controlling loads with working voltage within AC 250V/DC30V;
7. Onboard 1 programmable LED and relay indicator.
8. Board size: 57.5*53.7mm weight: 27g
Package Included:
1* ESP32-WROOM development board
