FPM10A Fingerprint Reader Sensor Board Module Optical Fingerprint Fingerprint For Arduino Locks Serial Communication Interface

Origin:CN(Origin)
Model Number:FPM10A Fingerprint Reader Sensor Module

Power supply voltage: DC 3.6~6.0V/3.3V supply
Supply Current: Current:
Peak current:
Fingerprint image time:
Window size: 1418mm
match pattern: match pattern (1:1)
search pattern (1:N)
Signature file: 256 bytes
Template file: 512 bytes
Storage capacity: 1000
Security Level: Five (Low to High: 1,2,3,4,5)
False Recognition Rate (FAR):
Authenticity Rejection Rate (FRR):
Search time:
PC interface: UART (TTL logic level) or USB2.0/USB1.1
Communication baud rate (UART): (9600N) bps, where N=1~12 (default N=6, ie 57600bps)
working environment:
Temperature: -20 - +50
Relative humidity: 40%RH-85%RH (non-condensing)
Storage environment:
Temperature: -40 - +85
Relative humidity:
Dimensions (lengthwidthheight):
Barge: Fingerprint Sensor: 562021.5mm
- Ketone: 562021.5mm
Hardware connection:
Through the serial communication interface module, directly communicate with the microcontroller with 3.3V or 5V power supply: the module data transmission foot (2-pin TD) is connected to the data bit machine receiver (RXD), connected to the data transmitter bit machine (TXD) Data Receiving Module feet (3 feet RD).
For RS-232 level (eg: PC), it is suitable for PC communication, add a level conversion circuit between the module and the host (eg: MAX232 circuit)
Package Included:

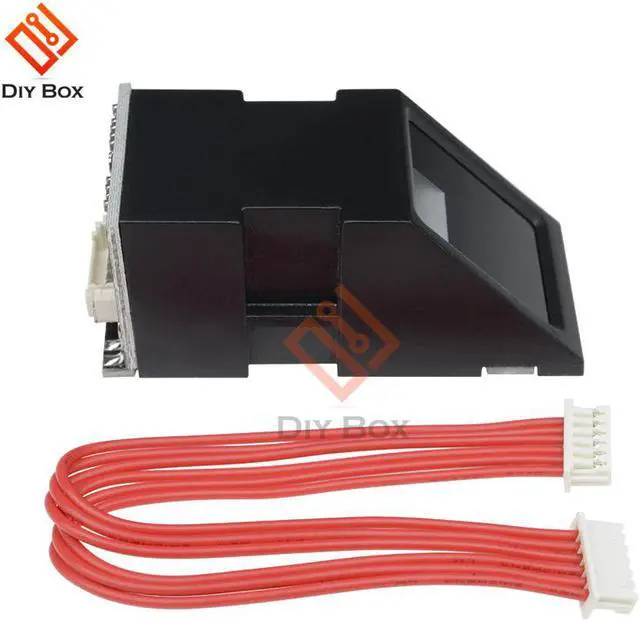

1PCS Optical Fingerprint Reader Sensor Module Sensor ALL-IN-ONE FOR Arduino Lock
