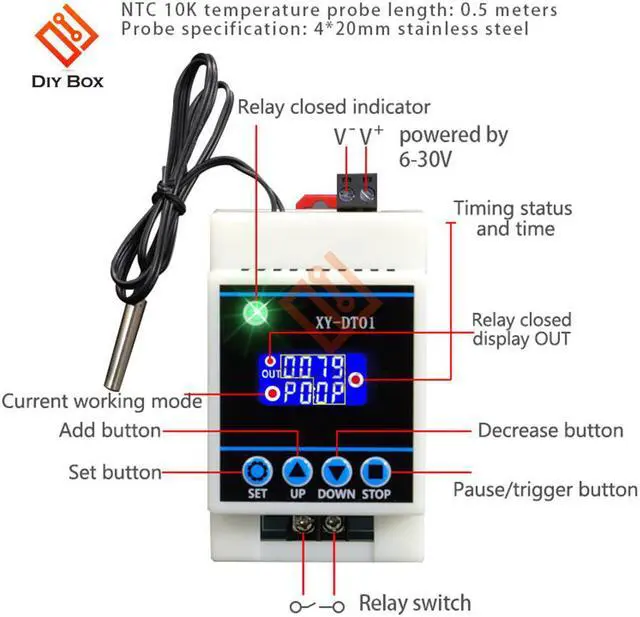

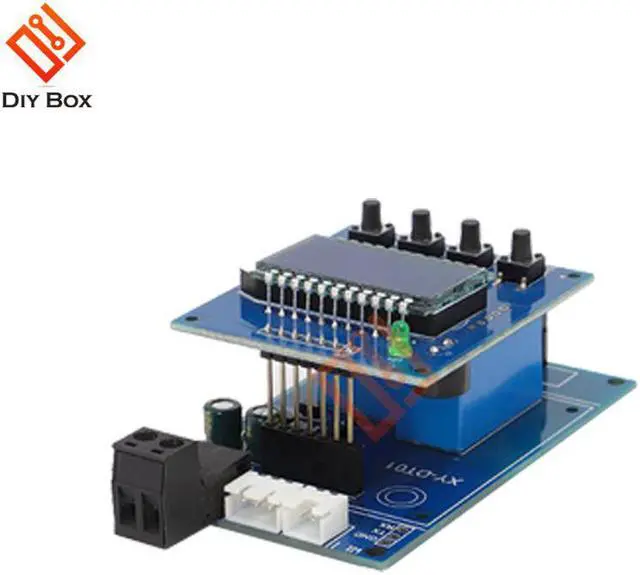

DT01 High-precision Digital Display Temperature Controller Module 30A NTC 10K Probe Cable Length 0.5M

Smart home platform:NONE
Certification:NONE
Origin:CN(Origin)
Model Number:DT01 High-precision digital display temperature controller module 30A

Features:
1: Widely used
2: High current 30A relay

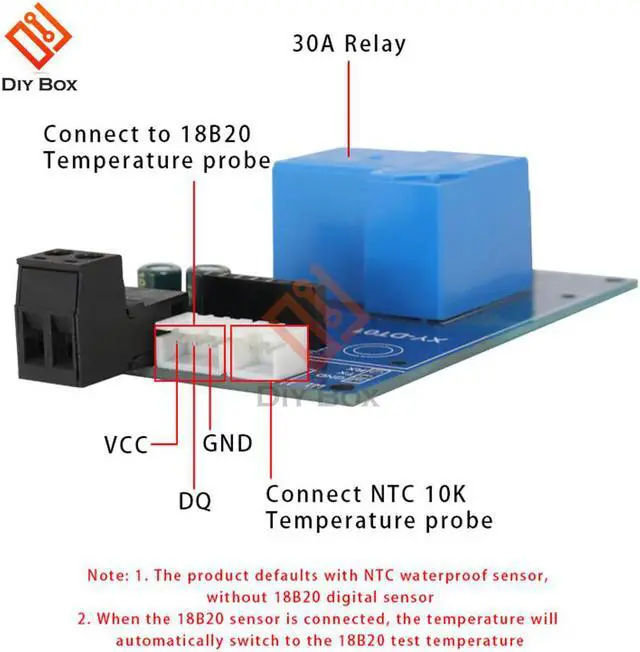

3: It supports 18B20 sensor, and the default NTC 10K temperature probe is shipped
4: Simple operation

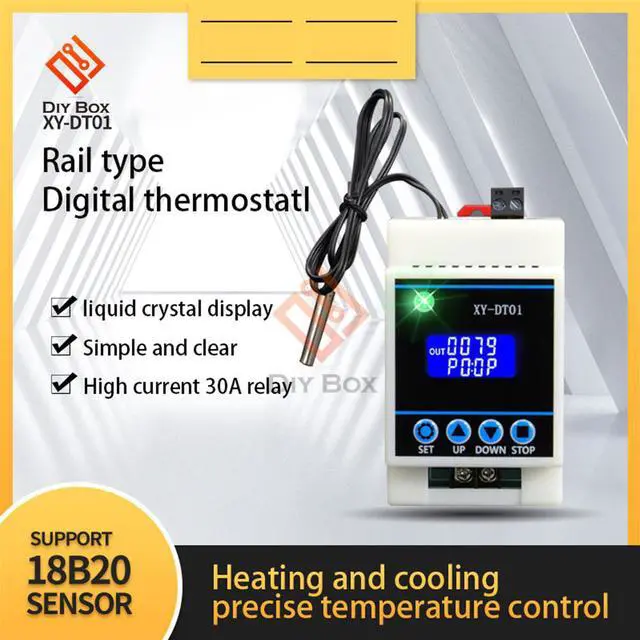

5: Guide rail type digital temperature controller
Product functions:
1. Heating mode 'H':
When the detection temperature the set temperature - return difference temperature, the relay is turned on and the heating equipment starts to work;
When the detection temperature is the set temperature, the relay is disconnected and the heating equipment stops working;
2. Cooling mode 'C':
When the detection temperature is the set temperature + return difference temperature, the relay is turned on and the refrigeration equipment starts to work;
When the detection temperature is the set temperature, the relay is disconnected and the refrigeration equipment stops working;
3. High temperature alarm function ala:
When the actual temperature the alarm temperature, the system starts the audible and visual alarm, disconnects the relay, and any key stops the audible and visual alarm;
4. Delayed start of OPH:
After completing a normal heating or cooling work, the system starts to count T. only when t OPH, the system can carry out the next round of heating or cooling work;
5. Temperature correction function ofe (- 10.0 ~ 10.0 ):
If the system works for a long time, there may be deviation. Through this function, the actual temperature = measured temperature + calibrated value;
6. Relay enable (default on):
If the relay is enabled, the relay remains disconnected;
7. Restore factory settings:
Press stop and set for more than 3S at the same time to restore the factory setting;
Operating mode / setting temperature / return difference temperature setting:
1. In the operation interface, briefly press the set key to enter the quick setting interface
2. After entering the quick setting interface, briefly press the set key to switch the parameters to be set (working mode / set temperature / return difference temperature);
3. Use the up down key to modify the parameter value, and support short press / long press;
4. Press and hold set for more than 3S or for 6S without any key operation, exit the quick setting interface and save the parameters;
Alarm temperature / delay start setting / temperature correction:
1. In the operation interface, long press set for more than 3S to enter the parameter setting interface;
2. After entering the parameter setting interface, briefly press the set key to switch the parameters to be set (alarm temperature / delay start setting / temperature correction);
3. Use the up down key to modify the parameter value, and support short press / long press;
4. Press and hold set for more than 3S or for 6S without any key operation, exit the parameter setting interface and save the parameters;
How to turn on the high temperature alarm (off by default):
Enter the parameter setting interface, switch to the alarm parameter ala interface, and turn on or off the high temperature alarm function by short pressing the stop key; If the high temperature alarm function is off, ALA displays' ---- 'as a reminder;
How to turn on delayed start (off by default):
Enter the parameter setting interface, switch to the alarm parameter OPH interface, and turn on or off the high temperature alarm function by short pressing the stop key; If the high temperature alarm function is off, OPH displays' ---- 'as a reminder;
Package Include:
1 * guide rail type digital temperature controller
