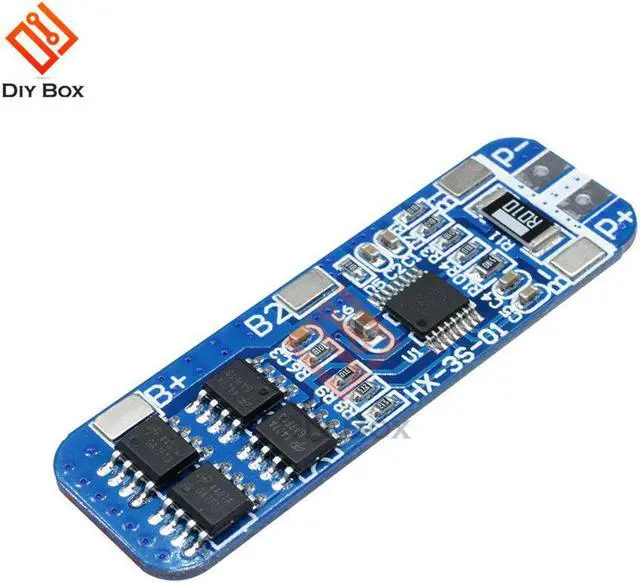

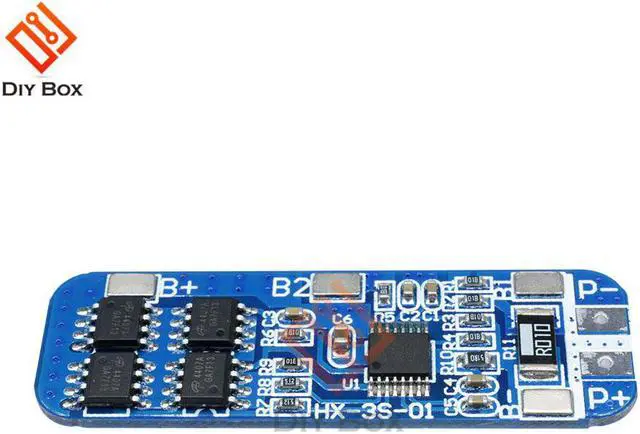

5pcs/lot BMS 3S 10.8V 11.1V 12.6V 10A 18650 Li-ion Lithium Charge Protection Board with Overcharge Protect

Certification:NONE
Accessory Type:Charger Accessories
Origin:CN(Origin)
Model Number:BMS 3S 10.8V 11.1V 12.6V 10A

5pcs/lot BMS 3S 10.8V 11.1V 12.6V 10A 18650 Li-ion Lithium Charge Protection Board with Overcharge Protect
Specification:

Size: appro.50x16x1mm
Maximum discharge current: 10A
Overcharge detection voltage: 4.25-4.35V Positive and negative 0.05V
Over-discharge detection voltage: 2.3-3.0V Positive and negative 0.05V
Maximum working current: 5A-8A
Transient current: 9A-10A
Operating temperature: -40~50 Degrees Celsius
Storage temperature: -40~80 Degrees Celsius
Quiescent current: less than 6 microampere
Internal resistance: less than 60 Cents
Service life: more than 30,000 hours
Feature:
Short circuit protection.
Overcharge protection.
Over-discharge protection.
Overcurrent protection.
Can be applied to various 3.7V lithium core.
Compact size and lightweight.
Fine workmanship and durable.
Ensure the security of pack.
Suitable for:
10.8V (Rated voltage of polymer )
11.1V (18650 or 3.7V lithium rated voltage)
12.6V (Lithium full charge voltage)
Note:
Please allow 1-5mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Package inlcude:
5 x lithium Protection Board
