3A 4CH 4.5-30V to 3.3V 5V 12V DC DC Step-Down Buck Converter Module LM2596 AMS1117 7805 7812 MP2307 MP1584
- 3A 4CH 4.5-30V to 3.3V 5V 12V DC DC Step-Down Buck Converter Module LM2596 AMS1117 7805 7812 MP2307 MP1584
+
+
Overview
Specs
Reviews
Certification:NONE
Origin:CN(Origin)
State of Assembly:Almost Ready
Model Number:3A 4CH 4.5-30V to 3.3V 5V 12V DC DC Step-Down Buck Converter Module
Compatibility:Others
Camera Equipped:No
Features:
1: With reverse connection protection
2: Overcurrent protection
3: Over temperature protection
4: Simple to use and easy to understand
5: High security
Description:

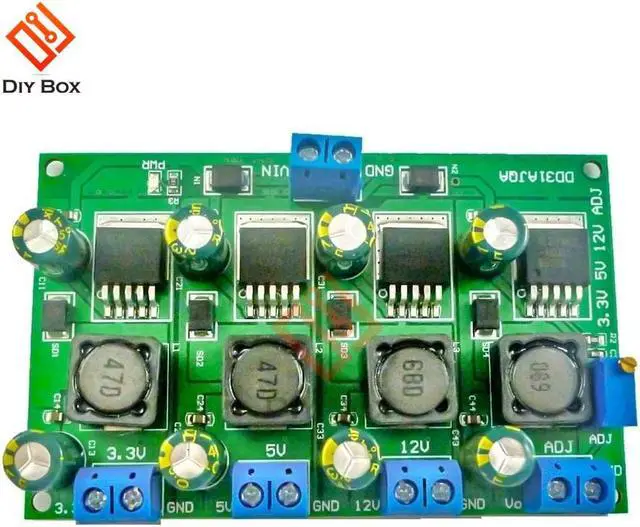

4-channel step-down power module

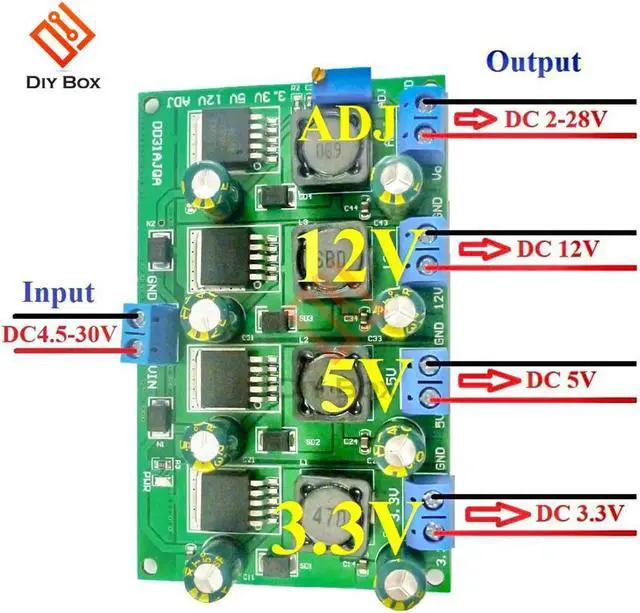

3.3V output: Input 4.5-30V, output 3.3V (±3%)
5V output: input 6.5-30V, output 5V (±3%)
12V output: Input 13.5-30V, output 12V (±3%)
Adjustable output: input 4.5-30V, output 2V-28V adjustable
Maximum output current capacity of single channel: 3A
Total maximum output power: 50 watts
With reverse connection protection, over current protection, over temperature protection
Size: 88 x 55 x 15mm
Weight: 57g
Package Included:
1* buck power module
Origin:CN(Origin)
State of Assembly:Almost Ready
Model Number:3A 4CH 4.5-30V to 3.3V 5V 12V DC DC Step-Down Buck Converter Module
Compatibility:Others
Camera Equipped:No
Features:
1: With reverse connection protection
2: Overcurrent protection
3: Over temperature protection
4: Simple to use and easy to understand
5: High security
Description:
4-channel step-down power module
3.3V output: Input 4.5-30V, output 3.3V (±3%)
5V output: input 6.5-30V, output 5V (±3%)
12V output: Input 13.5-30V, output 12V (±3%)
Adjustable output: input 4.5-30V, output 2V-28V adjustable
Maximum output current capacity of single channel: 3A
Total maximum output power: 50 watts
With reverse connection protection, over current protection, over temperature protection
Size: 88 x 55 x 15mm
Weight: 57g
Package Included:
1* buck power module
