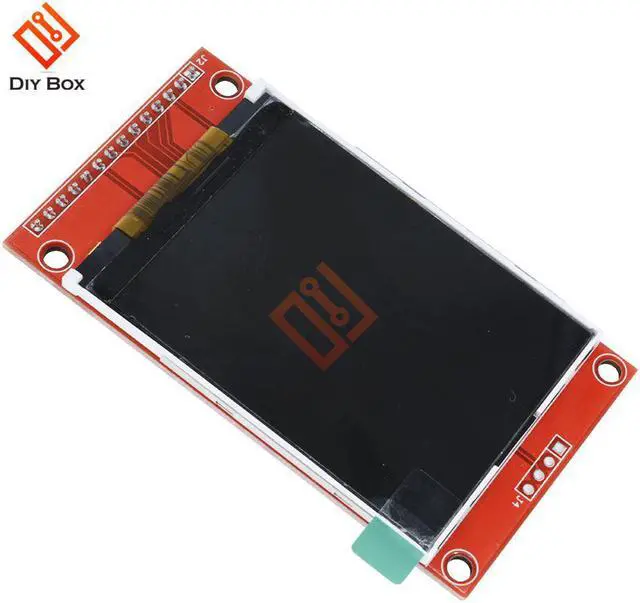

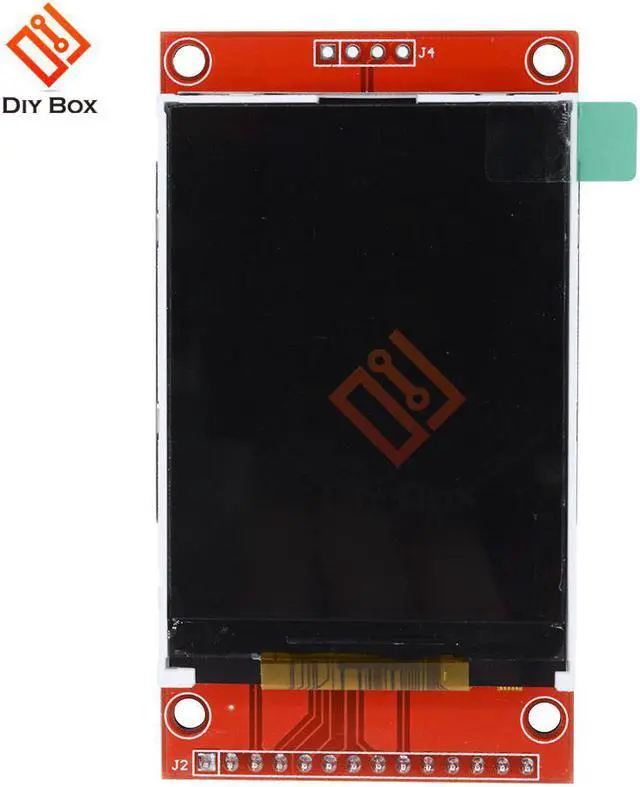

2.4" 2.4 inch 240x320 SPI TFT LCD Serial Port Module 5V/3.3V PBC Adapter ILI9341 White LED RGB Vertical Stripe No Touch
- 2.4" 2.4 inch 240x320 SPI TFT LCD Serial Port Module 5V/3.3V PBC Adapter ILI9341 White LED RGB Vertical Stripe No Touch
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:2.4 LCD Display Module
100% and
Type: without touch panel
Size:2.4" SPI Serial
Display area:36.72(W)X48.96(H)mm
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o'clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots
5V compatible, use with 3.3V or 5V logic
Need at least 4 IOs from your MCU

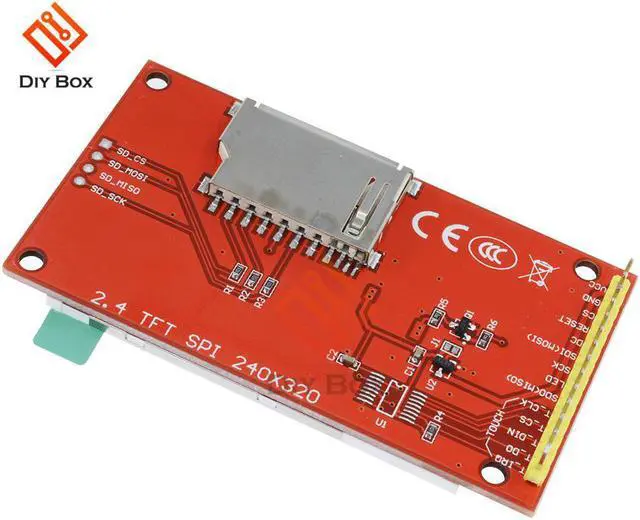

With PCB plate (including power supply IC), compatible with 5110 interface
Package included:
1 x 2.4" 240x320 SPI TFT LCD Serial Port Module+5V/3.3V PBC Adapter ILI9341
Model Number:2.4 LCD Display Module
100% and
Type: without touch panel
Size:2.4" SPI Serial
Display area:36.72(W)X48.96(H)mm
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o'clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots
5V compatible, use with 3.3V or 5V logic
Need at least 4 IOs from your MCU
With PCB plate (including power supply IC), compatible with 5110 interface
Package included:
1 x 2.4" 240x320 SPI TFT LCD Serial Port Module+5V/3.3V PBC Adapter ILI9341
