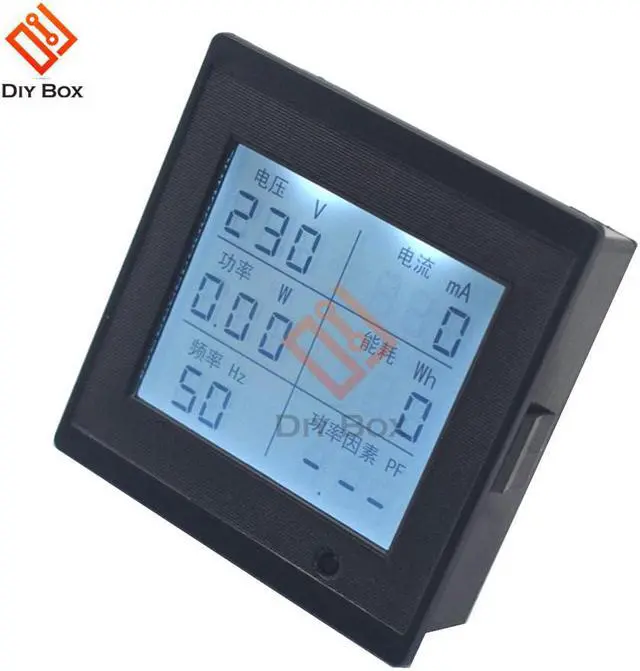

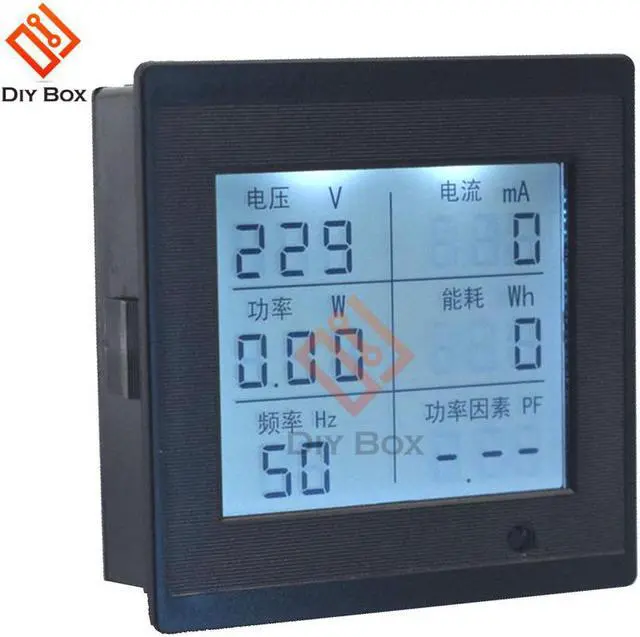

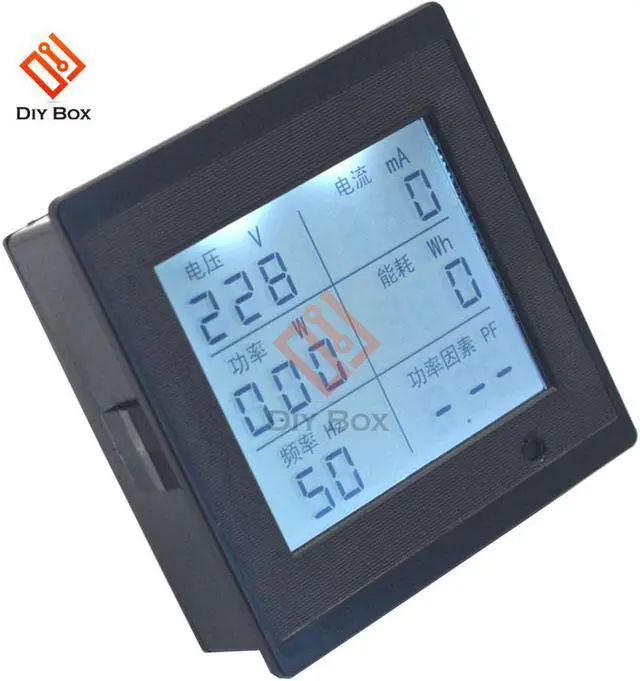

AC80-300V LCD Digital Display Voltage Current 20A Electricity Meter 0-999KW Frequency Meter Multi-function Power Factor Tester

Certification:NONE
Origin:CN(Origin)
State of Assembly:Ready-to-Go
Model Number:AC Digital Display Power Monitor Household Multi-function Voltage Curr
Compatibility:Others
Camera Equipped:No

AC80-300V LCD Digital Display Voltage Current 20A Electricity Meter 0-999KW Frequency Meter Multi-function Power Factor Tester
Features:
1: With backlight function
2: Electrical parameter measurement function (voltage, current, power, energy consumption, frequency, power factor)
3: Voltage alarm function (over voltage alarm threshold, backlight and voltage flashing prompt)
4: Overload alarm function (exceeding the power alarm threshold, backlight and power flashing prompt)
5: The power button reset function.
6: Power-down data saving function.
Parameter:
Measuring voltage: AC80-300V
Measuring current: within 0-20A
Measuring power: 0-4.4KW
Measuring energy consumption: 0-999KW
Measuring frequency: 40-65HZ
Power factor: 0-1PF
Overload alarm: can be set
Voltage alarm: settable overvoltage and undervoltage

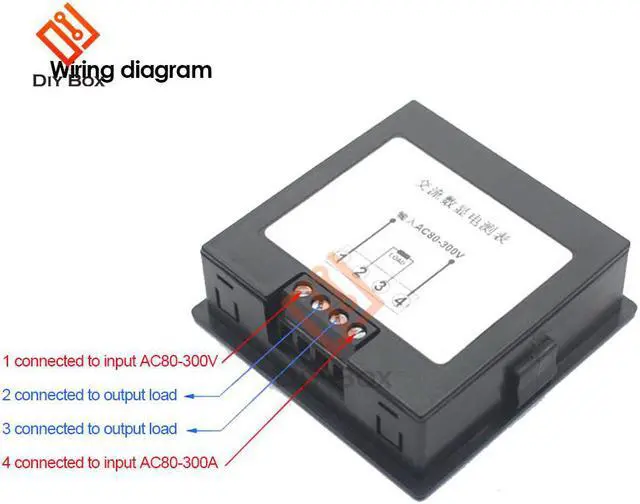

Wiring type: Barrier terminal block
Module size: mm*63mm*22mm
Product net weight: 58 grams
Key Description:
1. Long press for 5 seconds to enter the setting mode.
2. Long press for 3 seconds to move to the next group.
3. If the key is not released, each group stays for 1 second and automatically jumps to the next group.
4. Without any operation, exit after 10 seconds and save the data.
5. The backlight can be turned on or off by short pressing the button, and the backlight state will be automatically saved after power failure.
Packing list
1* AC voltage and current taster
