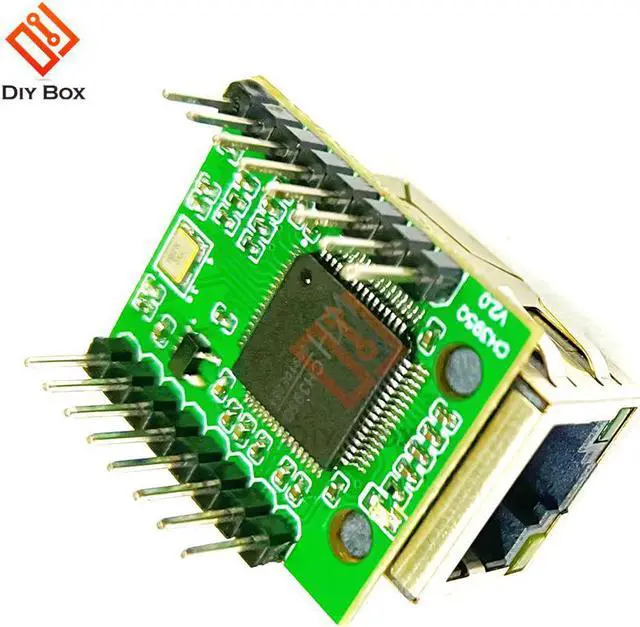

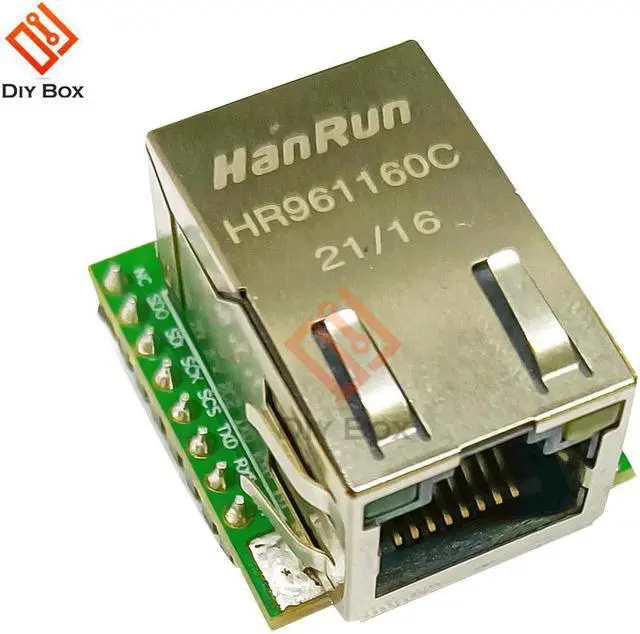

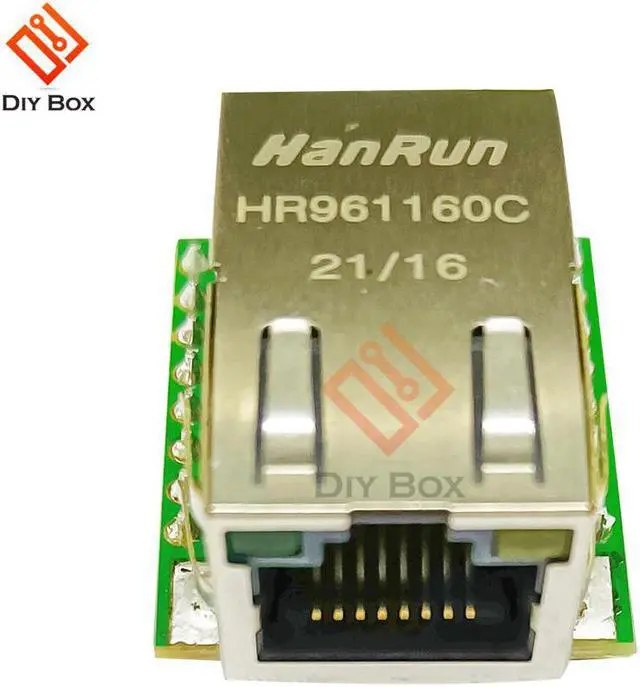

CH395Q Module Hardware TCP/IP Protocol Stack UART Serial Port Transparent Transmission/SPI Interface Instead Of W5500

Origin:CN(Origin)
Model Number:CH395Q module

Description:
1. 100% and high-quality products.
2. Made of high-quality materials, durable and practical.
3. Simple and convenient to use.
4. Wide application range.
5. It has the characteristics of stable work, low power consumption, energy saving, and no noise.
Parameter:
CH395 is an Ethernet protocol stack management chip, which is used in the single-chip microcomputer system for Ethernet communication.
CH395 chip comes with 10/100M Ethernet media transmission layer (MAC) and physical layer (PHY), fully compatible with IEEE802.3
10/100M protocol, built-in Ethernet protocol stack firmware such as PPPOE, IP, DHCP, ARP, ICMP, IGMP, UDP, and TCP.
The single-chip microcomputer system can easily carry out network communication through the CH395 chip.
CH395 supports three communication interfaces: 8-bit parallel port, SPI (up to 30MHz) interface or asynchronous serial port (up to 3MHz). Controllers such as single-chip microcomputer/DSP/MCU/MPU can control CH395 chip for Ethernet through any of the above communication interfaces. Network communication.
Provide 8 independent SOCKETs, which can send and receive data at the same time.
Support low power consumption mode.
Built-in 24K RAM is used for Ethernet data transmission and reception, and each SOCKET transmission and reception buffer can be ly configured.
Built-in 4K EEPROM.
Package included:
CH395Q module*1
