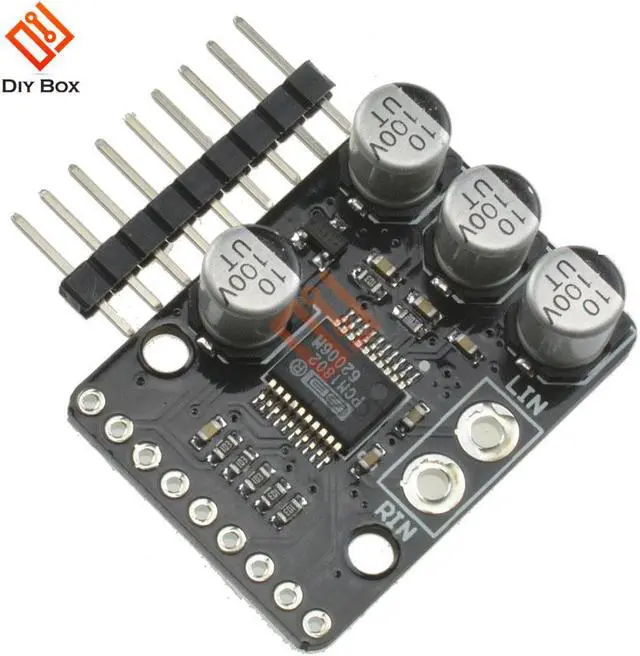

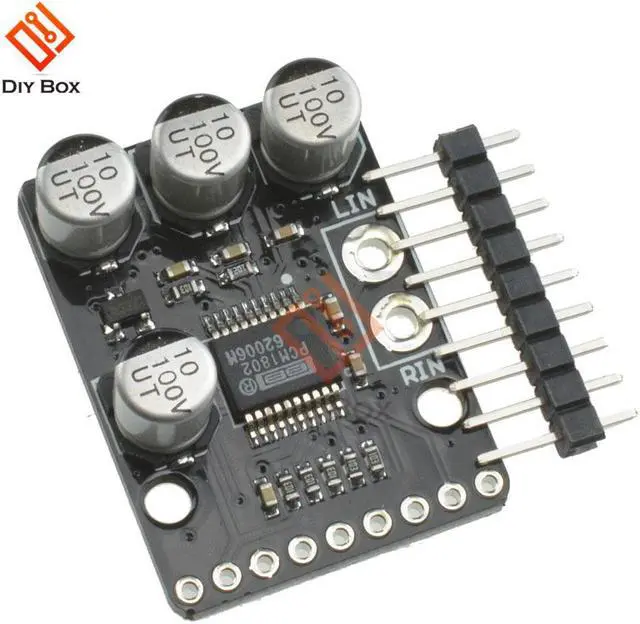

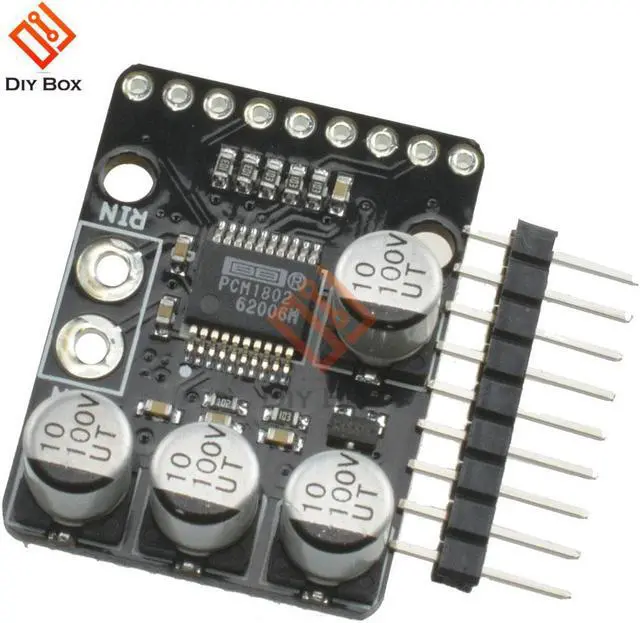

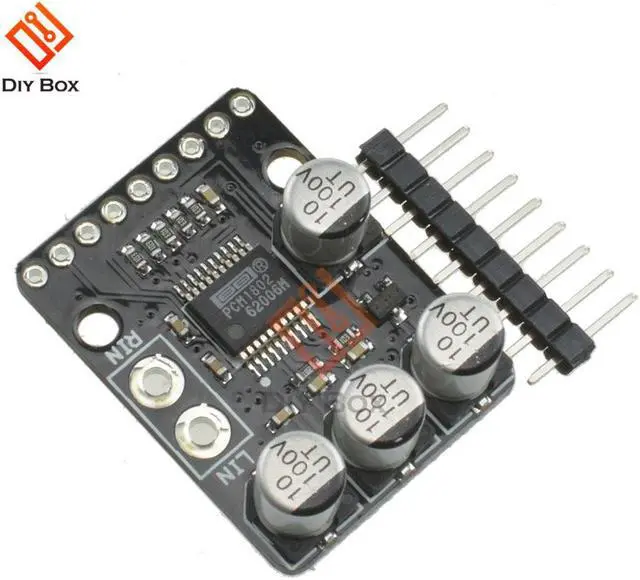

PCM1802 Stereo sound amplifier board 24-Bit 96-kHz 3.3V/5V A/D Converter Decoder Digital AMP Audio Player amplifier board

Certification:NONE
Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Amplifier
Model Number:PCM1802
Bundle:Bundle 1
Dimensions (WxHxD)):x
Weight:5g
Package:Yes

PCM1802 Stereo sound amplifier board 24-Bit 96-kHz 3.3V/5V A/D Converter Decoder Digital AMP Audio Player amplifier board
Description:
PCM1802
SINGLE-ENDED ANALOG-INPUT
24-BIT, 96-kHz STEREO A/D CONVERTER
24-Bit Delta-Sigma Stereo A/D Converter · AV Amplifier Receiver
Single-Ended Voltage Input: 3 V p-p · MD Player
Antialiasing Filter Included · CD Recorder
Oversampling Decimation Filter · Multitrack Receiver
Oversampling Frequency: ´64, ´128 · Electric Musical Instrument
Pass-Band Ripple: ±0.05 dB
Stop-Band Attenuation: -65 dB
The PCM1802 is a high-performance, low-cost,
On-Chip High-Pass Filter (HPF): 0.84 Hz single-chip stereo analog-to-digital converter with  (44.1 kHz) single-ended analog voltage input. The PCM1802
High Performance uses a delta-sigma modulator with 64- or 128-times
THD+N: 96 dB (Typical) oversampling, and includes a digital decimation filter
and high-pass filter (HPF), which removes the dc
SNR: 105 dB (Typical) component of the input signal. For various appli-
Dynamic Range: 105 dB (Typical) cations, the PCM1802 supports master and slave
PCM Audio Interface modes and four data formats in serial interface.
The  PCM1802 is suitable for a wide variety of cost-
Master/Slave Mode Selectable sensitive consumer applications where good perform-
Data Formats: 24-Bit Left-Justified; 24-Bit ance, 5-V analog supply, and 3.3-V digital supply
I2S; 20-, 24-Bit Right-Justified operation is required. The PCM1802 is fabricated
Sampling Rate: 16 kHz to 96 kHz using a highly advanced CMOS process and is available in the DB 20-pin SSOP package.
System Clock: 256 fS, 384 fS, 512 fS, 768 fS
Dual Power Supplies: 5 V for Analog, 3.3 V for  Digital
Package inculde:
1 x  PCM1802 Audio Stereo Amplifier Board
