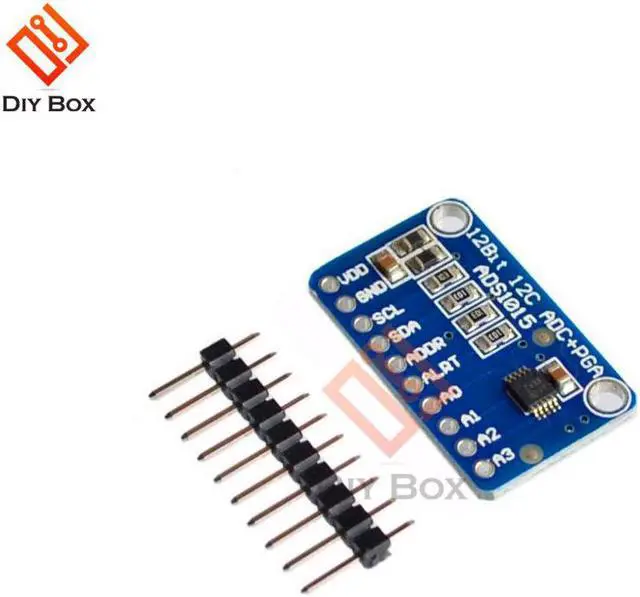

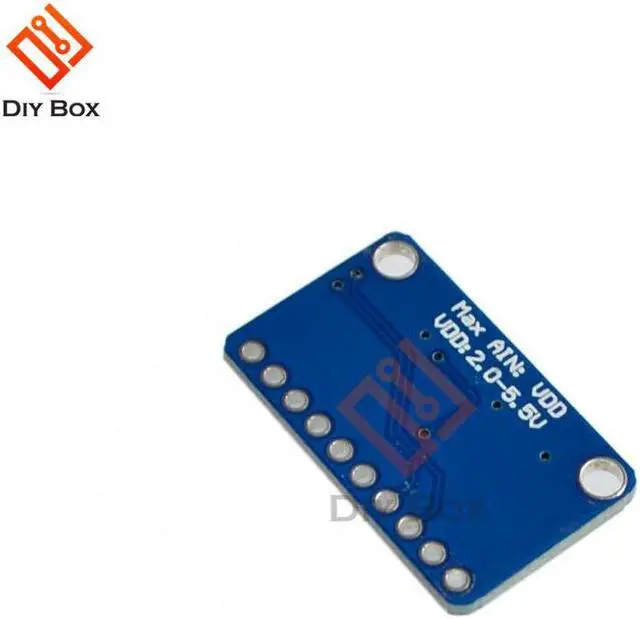

ADS1015 Ultra Small 12 Bit Precision Analog-to-digital Converter ADC Module Development Board For Arduino

Origin:CN(Origin)
With USB:NO
is_customized:.
Model Number:ADS1015 analog-to-digital conversion module

Product parameters:
Power/logic level: 2.0V to 5.5V
Low current consumption: continuous mode: only 150A single-shot mode: automatic shutdown
Resolution: 12 bits
Programmable sampling rate: 128 to 3300 samples/sec
Internal low drift voltage reference
Internal oscillator
Internal: PG×16
I2C interface: 4-pin optional address
Four single-ended or 2 differential inputs
Programmable comparator

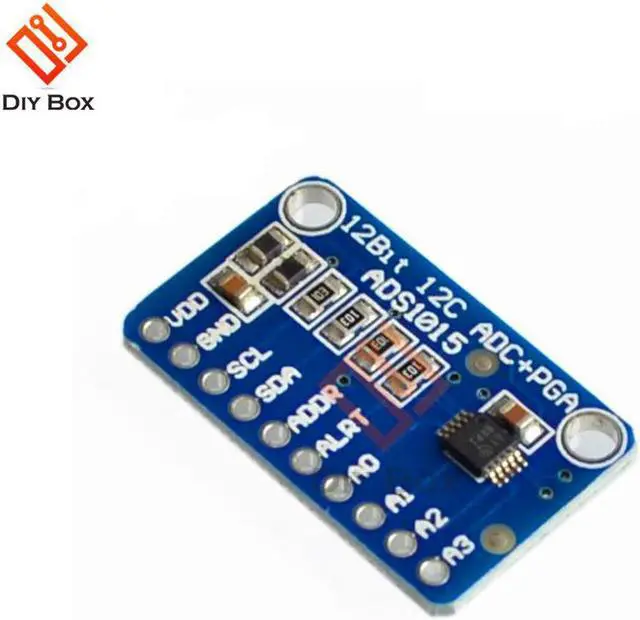

Pin description:
VDD: Positive power supply (3.3V/5V)
GND: ground, power negative
SCL: IIC clock line
SDA: IIC data cable
ADDR: Determine the IIC slave address
ALRT: Digital comparator output or conversion ready
A0: Differential channel 1, positive input or single-ended channel 1 input
A1: Differential channel 1, negative input or single-ended channel 2 input
A2: Differential channel 2, positive input or single-ended channel 3 input
A3: Differential channel 2, negative input or single-ended channel 4 input
Instructions for use:
The module's IIC bus has a pull-up resistor, and users do not need to pull it up. The default 7-bit IIC address of the module is 0x48 (1001000), and the chip uses a clever addressing method that allows one address pin (ADDR) to achieve four different the address of
When ADDR is grounded, the IIC address is 0x48 (1001000)
When ADDR is connected to VDD, the IIC address is 0x49 (1001001)
When ADDR is connected to SDA, the IIC address is 0x4A (1001010)
When ADDR is connected to SCL, the IIC address is 0×4B (1001011)
Package Included:
Modular module X1
Single row pin X1
