18650 LCD Display Capacity Tester Module With Charging Function Type-C Port 5V

Certification:NONE
Accessory Type:Accessories
Origin:CN(Origin)
Model Number:18650 LCD Display Capacity Tester Module With Charging Functio

Features:
1: Widely used
2: Added charging function
3: Exquisite and compact appearance
4: LCD display
5: Preset three working modes

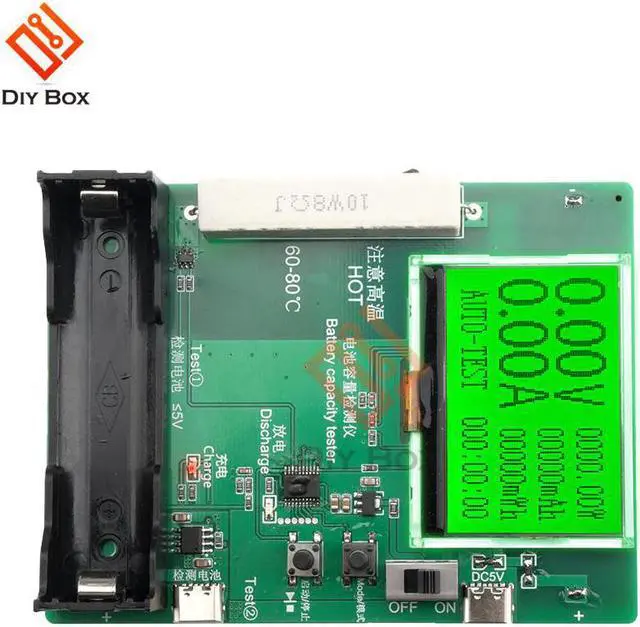

18650 capacity tester LCD display (with charging function) type-C port
Test voltage: 5V

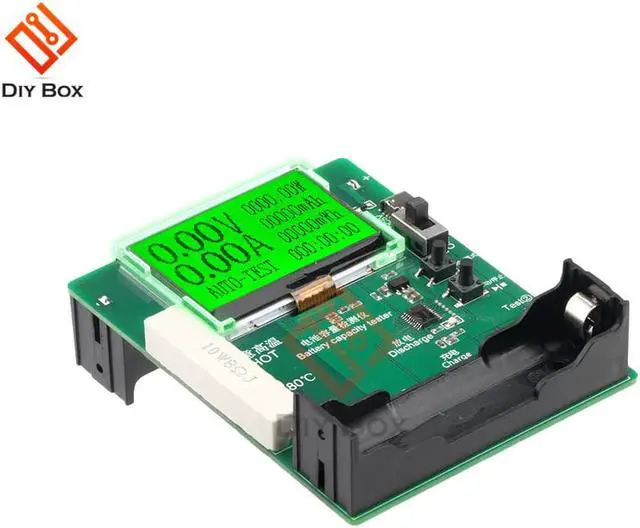

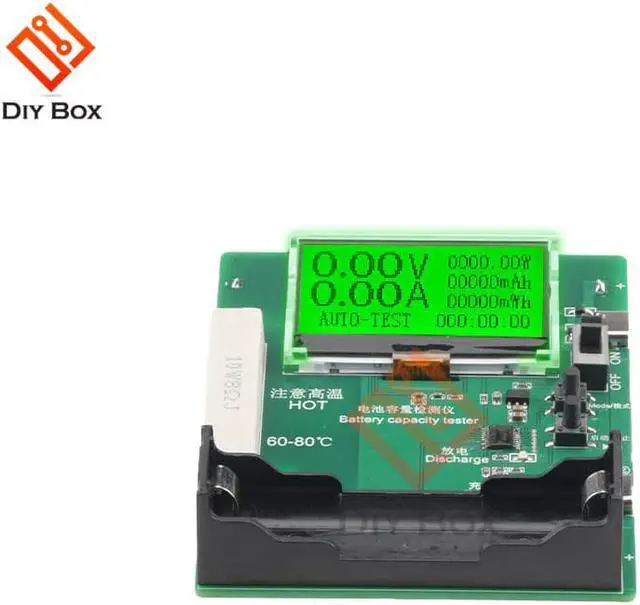

Display mode: 128 × 64px LCD
Capacity range: 9999mah
Energy range: 9999mwh
Timing range: 999:59:59
Working : flat head 18650
Power interface: type-C
External working power supply: 5V 1a (the power supply is self-contained, and the mobile phone charger can be used). The charging mode (charge) and automatic mode (auto-test) can be used normally only when the external working power supply is connected.

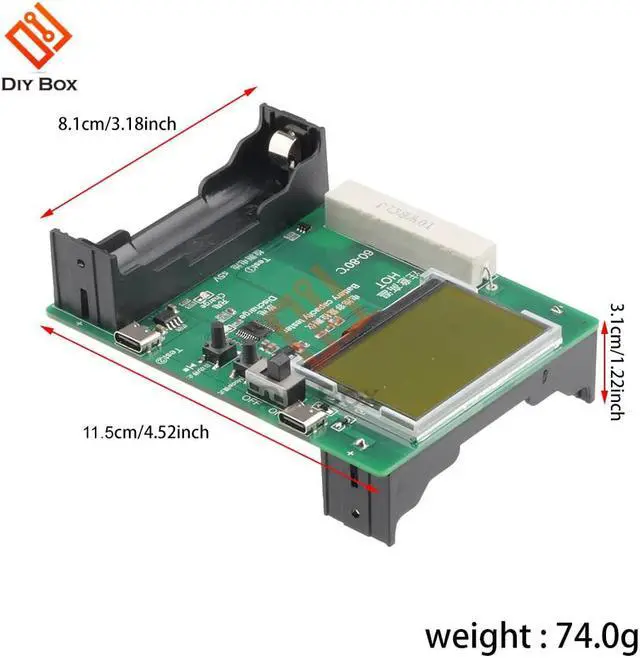

Product size: 115 × eighty-one × 31mm (product); one hundred and fifty × one hundred × 40mm (package),
Product weight: 110g (including packaging); Net weight 74g
Safety tips: when discharging, the load resistance will release a high temperature of 60 ~ 80 . During use, keep ventilation to avoid approaching flammable and explosive substances. Notice to pay attention to safety and avoid scalding.
Working mode (5V power supply is required)
Auto-test automatic mode (boot default mode)
Start charge (when the charging current is less than 0.12A, trigger full charge and stop charging) discharge (when the load voltage is less than 2.7V, trigger discharge is completed) charge (when the charging current is less than 0.12A, trigger full charge and stop charging) complete stop
When charging, the capacity and energy values are not recorded, only timing.
When discharging, record the capacity and energy value, which is the same as timing.
Charge (charge mode)
Start charge (when the charging current is less than 0.12A, trigger full charge and stop charging) complete the stop
Only the charging time is recorded, and the charging capacity and energy are not recorded
Discharge mode
Start discharge (if the load voltage is less than 2.7V, trigger discharge completion complete stop)
Record discharge capacity, energy and time.
Note:
In the discharge process, as long as the load voltage is detected to drop to 2.7V, the discharge will stop. After the discharge is stopped, the will be unloaded and the voltage will rise; A single discharge process can only detect the capacity released by the at the stage when the voltage drops to 2.7V for the first time after the discharge starts, which can be simply understood as a single available capacity rather than a calibrated capacity.
Shutdown and restart; Switching mode; Long press the start key to clear all data, and shut down without saving historical data.
Test install 18650 for test. Test test through type-C external charging treasure or power supply 5V. However, test and test cannot be used for test at the same time to avoid accidents caused by overshoot of 18650 without protection.
To operate the charging mode, an external working power supply must be connected
Package Include:
1 * capacity tester
