Adjustable Audio Music VU Level indicator meter Dual 12 bit LED Level Display For Amplifier Module With AGC Mode

Certification:NONE
Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Speakers
Model Number:Amplifier Module With AGC Mode
Package:Yes

Adjustable Audio Music VU Level indicator meter Dual 12 bit LED Level Display For Amplifier Module With AGC Mode
Feature:
Ultra-small size stereo level lights, light bar can be adjusted to rise, the rate of decline and peak lamp residence time, the rate of decline. Each lamp set up a separate current limiting resistor, Ensure the same brightness of the different color lights, Signal input through the op-amp isolation, Avoid single-chip high frequency interference audio.
Advantages:

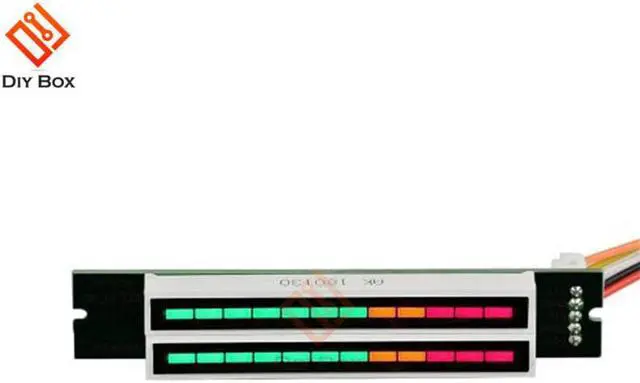

Custom 12 segments three colors LED light bar (7 green + 2 orange +3 red).
The rising speed and the falling speed of the light bar, the holding time and the falling speed of the peak can be adjusted separately.
Real-time mode and AGC mode selection (super wide range of AGC adaptive algorithm to ensure the best effect)
Small size, can be easily loaded into small case.
Single button operation.
Increased brightness adjustment function
Specification:
Operating voltage: DC 7-12V
Operating current: 100MA
Dimensions: 1.4x7.9cm/0.55x3.11inch
Note:
Please allow 0-1cm error due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you.
