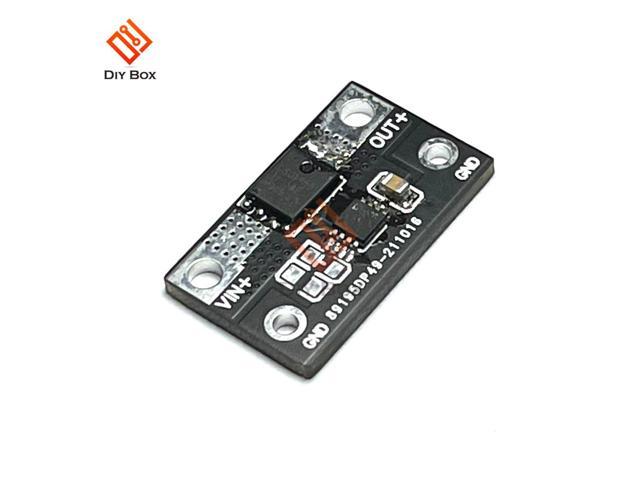

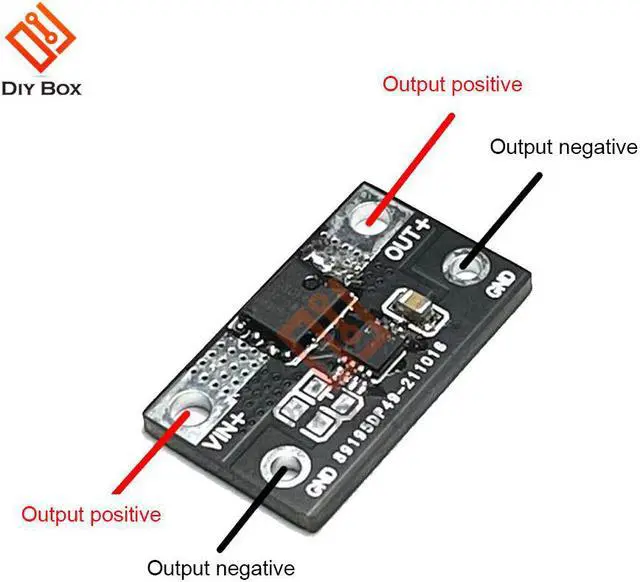

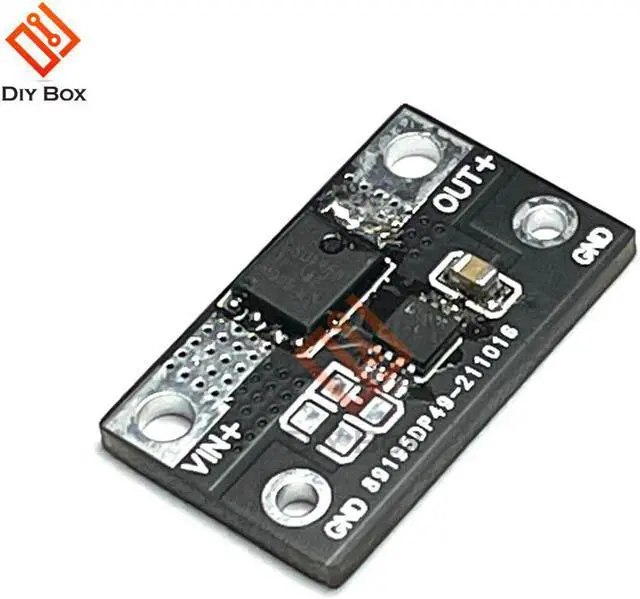

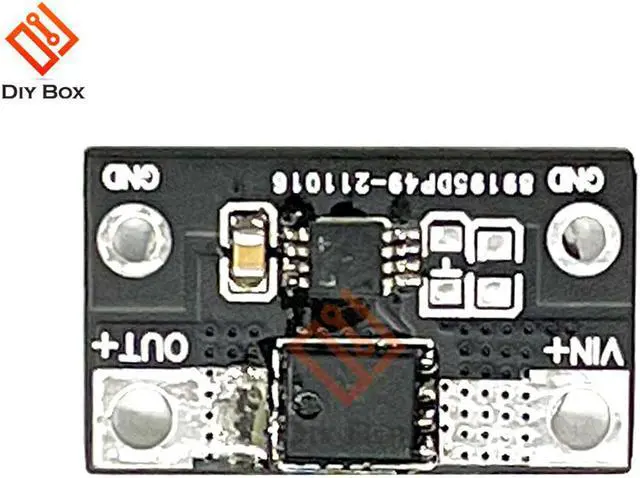

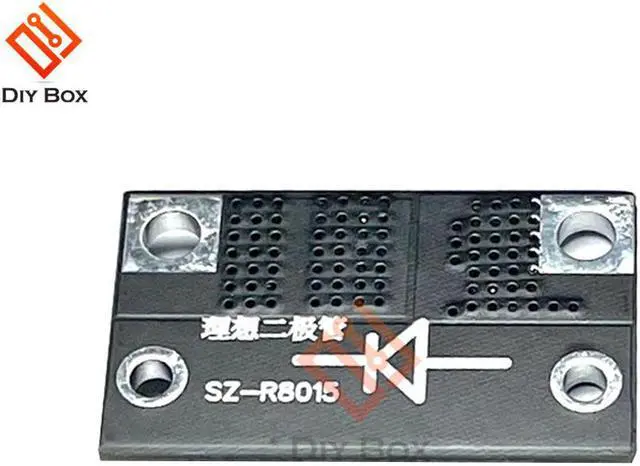

75V 12A High Current Ideal Diode Solar Anti-reverse Charging And Anti-reverse Current Protection Module
- 75V 12A High Current Ideal Diode Solar Anti-reverse Charging And Anti-reverse Current Protection Module
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:75V 12A high current ideal diode solar anti-reverse charging and anti-
Features:
1: Widely used
2: High efficiency
3: Anti backflow of solar panel
4: Small volume
5: Easy to use
Parameter:
Input voltage: 9-75v
On internal resistance: 4 milliohm
Operating temperature: - 20 to 100 degrees
Peak current: 20A
Standby current: 0.7ma (at 24V)
Continuous working current: below 12a
Size: 23 * 14 * 2.6mm
Note:
Without anti reverse connection function, the input positive and negative electrodes shall not be reversed. When the ambient temperature is high and the ventilation is not good
Please reduce the output current
Purpose:
Instead of ordinary diodes, the heating is small
High pressure reduction efficiency
Anti backflow of solar panel
charging anti backflow
DC power charging anti backflow
Isolation of power supply from inductive load
Package Include:
1 * diode module
Model Number:75V 12A high current ideal diode solar anti-reverse charging and anti-
Features:
1: Widely used
2: High efficiency
3: Anti backflow of solar panel
4: Small volume
5: Easy to use
Parameter:
Input voltage: 9-75v
On internal resistance: 4 milliohm
Operating temperature: - 20 to 100 degrees
Peak current: 20A
Standby current: 0.7ma (at 24V)
Continuous working current: below 12a
Size: 23 * 14 * 2.6mm
Note:
Without anti reverse connection function, the input positive and negative electrodes shall not be reversed. When the ambient temperature is high and the ventilation is not good
Please reduce the output current
Purpose:
Instead of ordinary diodes, the heating is small
High pressure reduction efficiency
Anti backflow of solar panel
charging anti backflow
DC power charging anti backflow
Isolation of power supply from inductive load
Package Include:
1 * diode module
