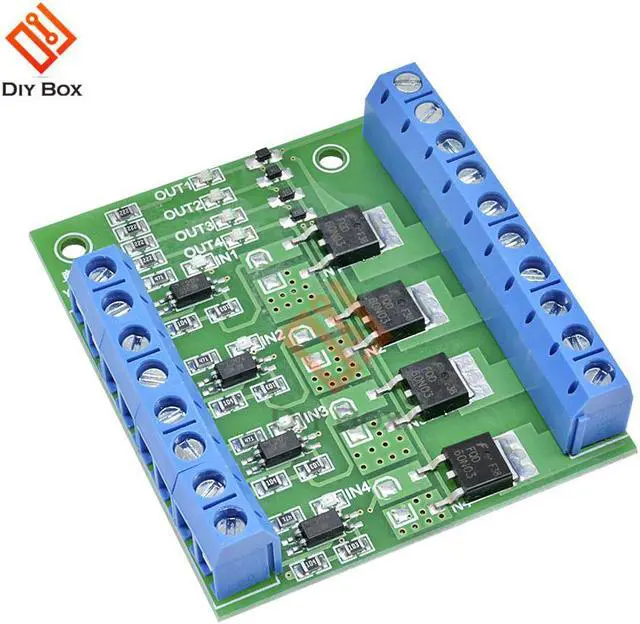

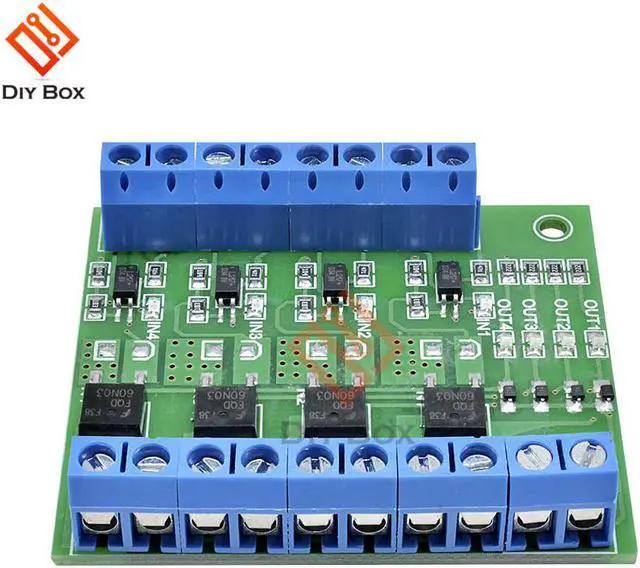

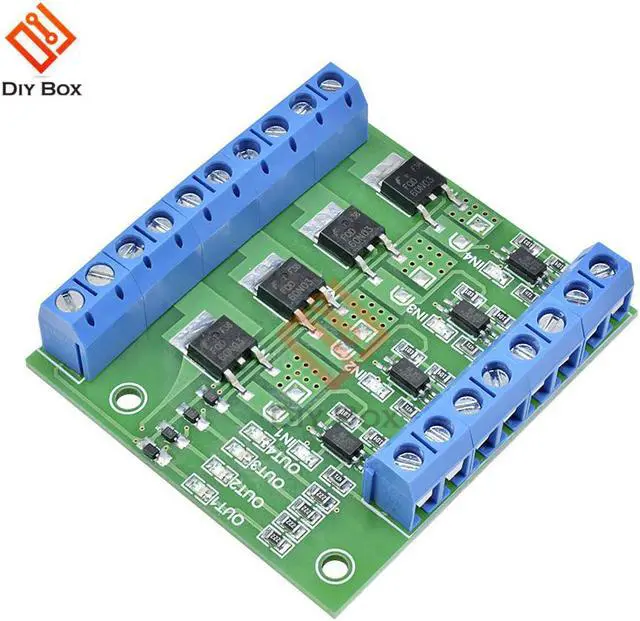

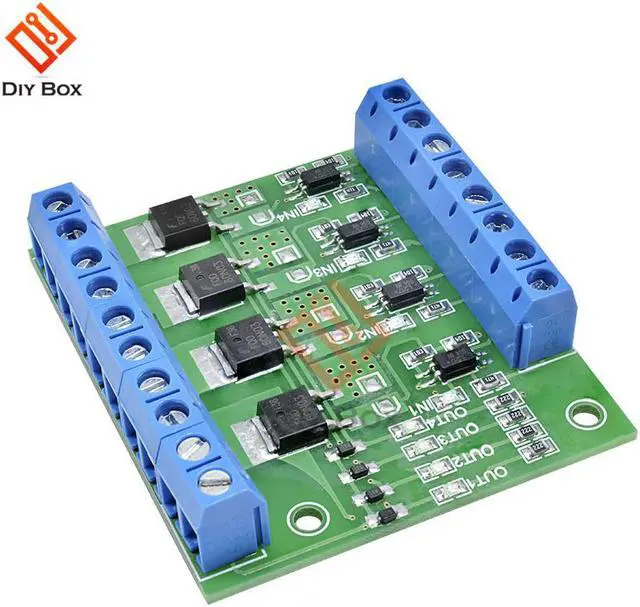

MOS FET F5305S 4 Channels Pulse Trigger Switch Controller PWM Input Steady for Motor LED 4 Way 4ch 4 way Diy Electronic Module
- MOS FET F5305S 4 Channels Pulse Trigger Switch Controller PWM Input Steady for Motor LED 4 Way 4ch 4 way Diy Electronic Module
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:MOS FET F5305S
The module is based on FET model F5305S. We can input PWM signal to control motor speed, lightness of bulb, etc.
Features:
FET module, input and output totally isolated from each other.
Signal trigger: digital high/low signal, can be connected to IO of micro-controller, PLC interface, DC power supply, etc.
The output can control high-power devices: motor, light bulb, LED light & strips, DC motor, small pumps, solenoid valve.
Input signal voltage: 3V~20V; Input current: about 5mA.
Output voltage: 5V~36V(Current: within 5A, Max. current is 20A. When current is over 5A, please add heat sink).
Specifications:
Input Signal: Voltage: 3V~20V; Current: 5mA
Output: Voltage: 5V~36V; Current: within 5A
Item Size: 78 * 65 * 15mm / 3.07 * 2.56 * 0.6in
Item Weight: 52g / 1.86oz
Package Weight: 54g / 1.93oz
Package Included:
1 x Trigger Switch Module
Model Number:MOS FET F5305S
The module is based on FET model F5305S. We can input PWM signal to control motor speed, lightness of bulb, etc.
Features:
FET module, input and output totally isolated from each other.
Signal trigger: digital high/low signal, can be connected to IO of micro-controller, PLC interface, DC power supply, etc.
The output can control high-power devices: motor, light bulb, LED light & strips, DC motor, small pumps, solenoid valve.
Input signal voltage: 3V~20V; Input current: about 5mA.
Output voltage: 5V~36V(Current: within 5A, Max. current is 20A. When current is over 5A, please add heat sink).
Specifications:
Input Signal: Voltage: 3V~20V; Current: 5mA
Output: Voltage: 5V~36V; Current: within 5A
Item Size: 78 * 65 * 15mm / 3.07 * 2.56 * 0.6in
Item Weight: 52g / 1.86oz
Package Weight: 54g / 1.93oz
Package Included:
1 x Trigger Switch Module
