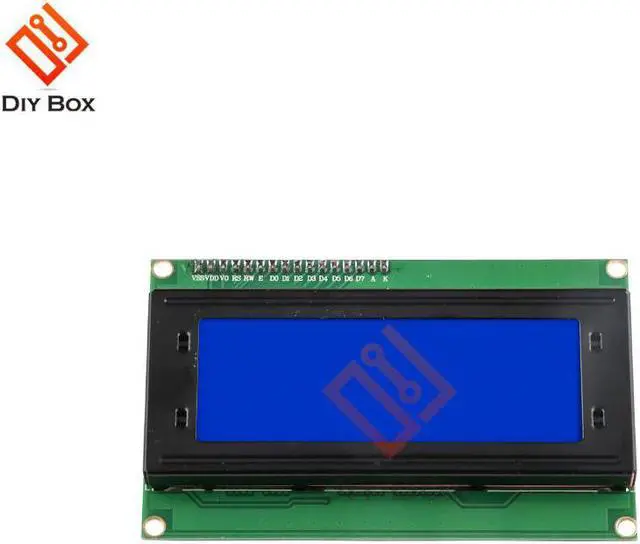

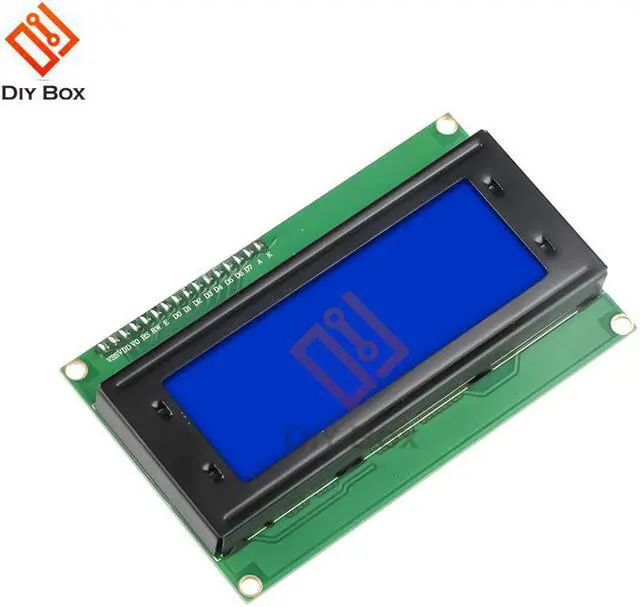

LCD2004 IIC/I2C LCD Display Monitor 2004 20X4 5V Character Blue Backlight Screen LCD2004 IIC I2C for arduino LCD display
- LCD2004 IIC/I2C LCD Display Monitor 2004 20X4 5V Character Blue Backlight Screen LCD2004 IIC I2C for arduino LCD display
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:LCD2004 Display Monitor

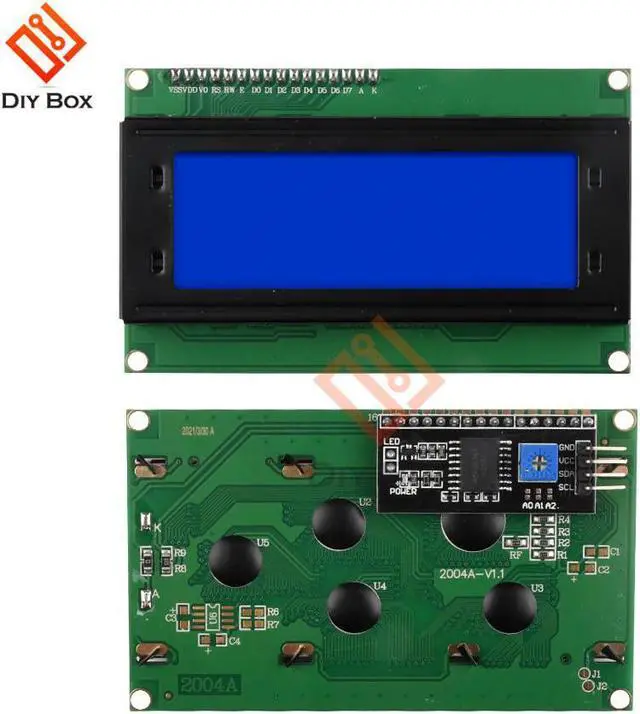

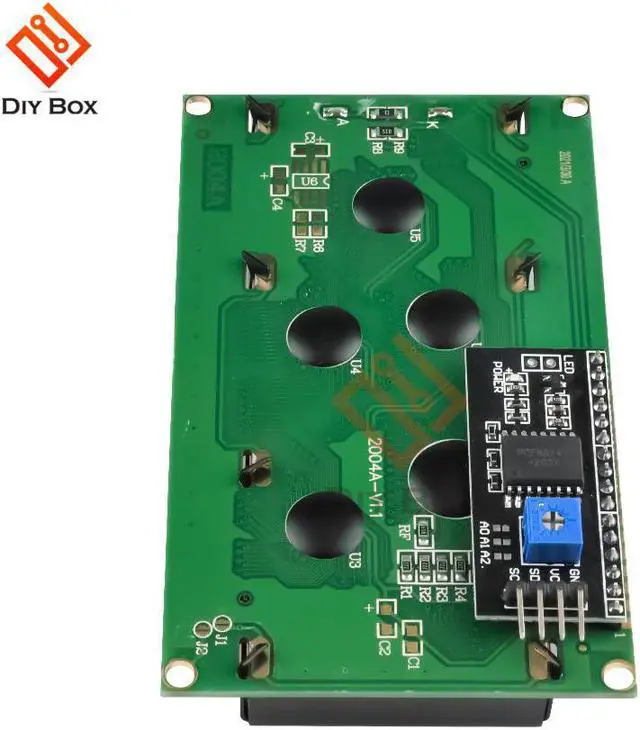

This is IIC Serial 20X4 LCD module . With this I2C interface LCD module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
Specification:
Interface: I2C
I2C Address: 0x20
Sofware version :0022
SDA (DATA) -> analog input pin 4
SCL (CLOCK) -> analog input pin 5
Pin Definition : GND.VCC.SDA.SCL
Back lit (Blue with white char color)
Supply voltage: 5V
Pcb Size : 60mm×99mm
Contrast Adjust : Potentiometer
Backlight Adjust : Jumper
Package:
1 X Blue Display IIC/I2C/TWI/SPI Serial Interface2004 20X4 Character LCD Module
Model Number:LCD2004 Display Monitor
This is IIC Serial 20X4 LCD module . With this I2C interface LCD module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
Specification:
Interface: I2C
I2C Address: 0x20
Sofware version :0022
SDA (DATA) -> analog input pin 4
SCL (CLOCK) -> analog input pin 5
Pin Definition : GND.VCC.SDA.SCL
Back lit (Blue with white char color)
Supply voltage: 5V
Pcb Size : 60mm×99mm
Contrast Adjust : Potentiometer
Backlight Adjust : Jumper
Package:
1 X Blue Display IIC/I2C/TWI/SPI Serial Interface2004 20X4 Character LCD Module
