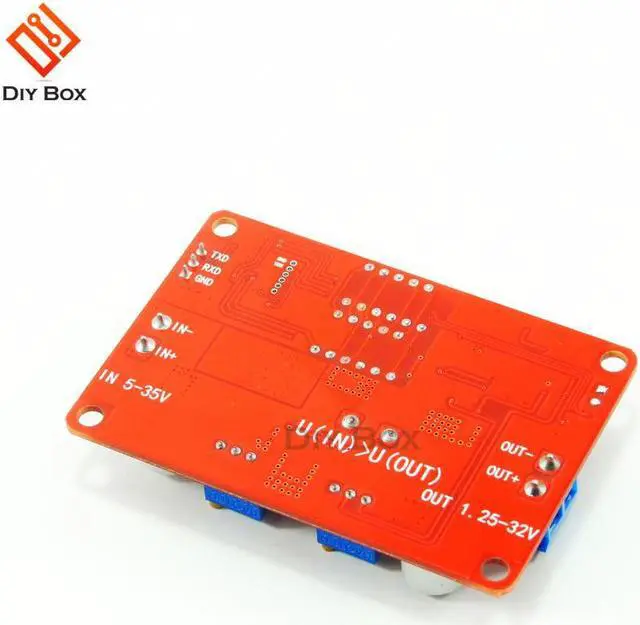

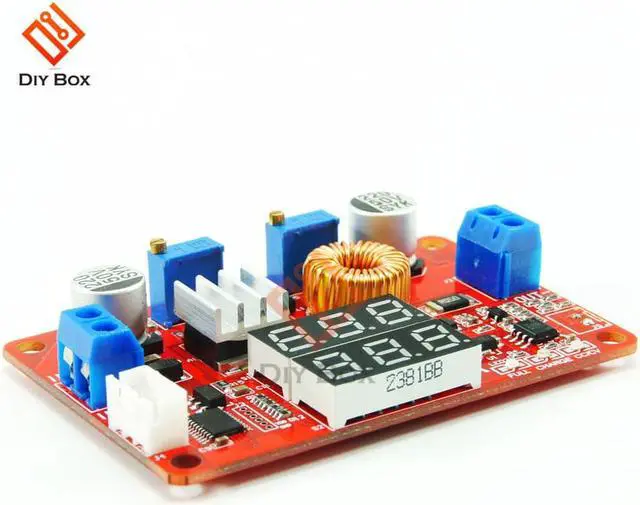

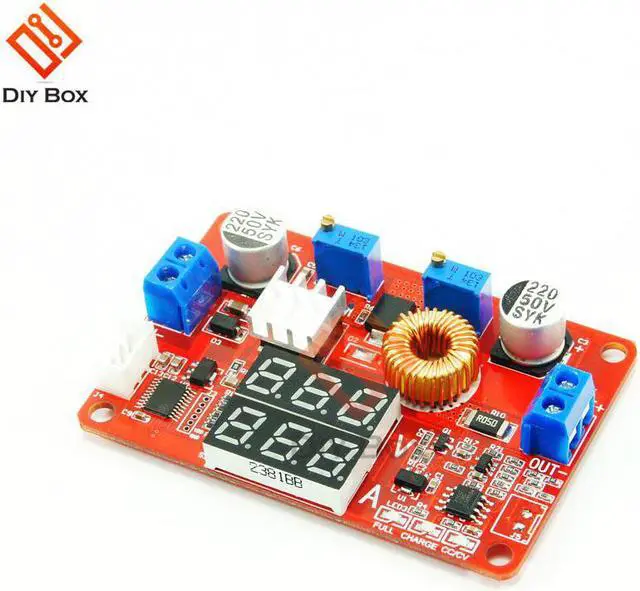

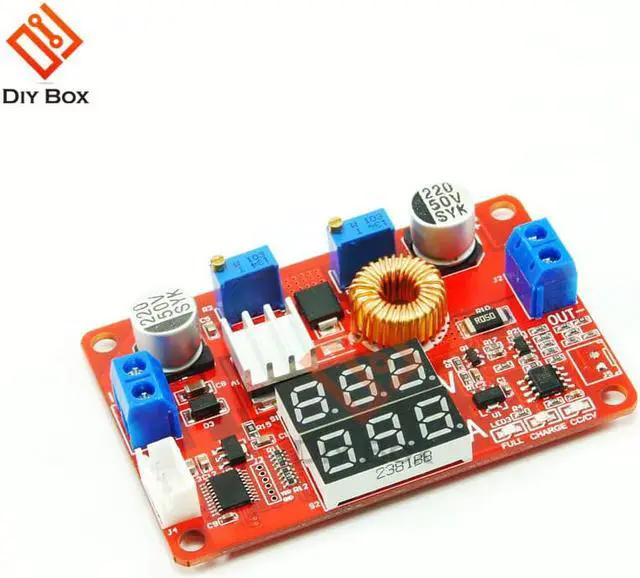

5A 75W Three-Digit Display Constant Current Constant Voltage Step-Down Power Module LED Driver Voltmeter Ammeter DC5V-35V
- 5A 75W Three-Digit Display Constant Current Constant Voltage Step-Down Power Module LED Driver Voltmeter Ammeter DC5V-35V
+
+
Overview
Specs
Reviews
Certification:NONE
Origin:CN(Origin)
State of Assembly:Almost Ready
Model Number:Step-down module
Compatibility:Others
Camera Equipped:No
Specifications:
Module nature: Asynchronous rectification, non-isolated, CC CV Buck module
Input voltage: (U-IN) DC5V~35V
Output voltage: (U-OUT) DC 1.25V~32V
Output current: 5A (max) above 3A to strengthen heat dissipation
Output power: 75W (max)
Switching frequency: 300Hz
Output ripple: ripple 50mmV 20M bandwidth
Load regulation rate: ±0.5%
Voltage adjustment rate: ±2.5%
Working current:
Product size: 73×48.6×14.2mm
Product weight: 32g
Fixed aperture: 3.8mm
Package included:
1*DC5V-35V Step-down power module
