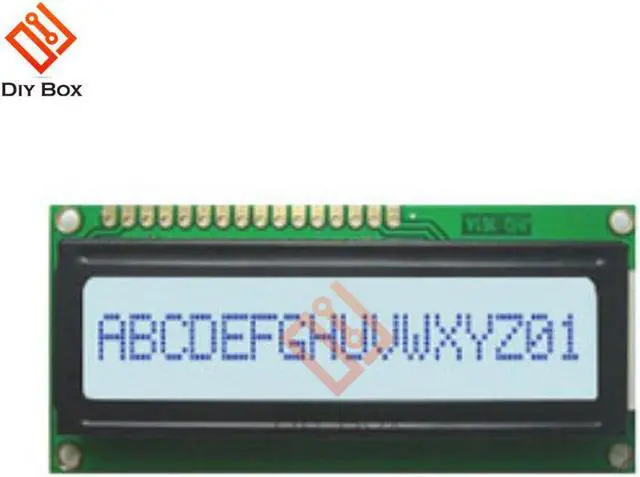

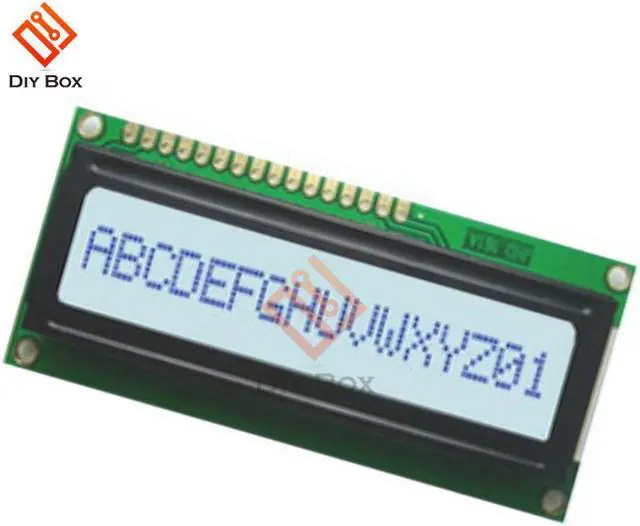

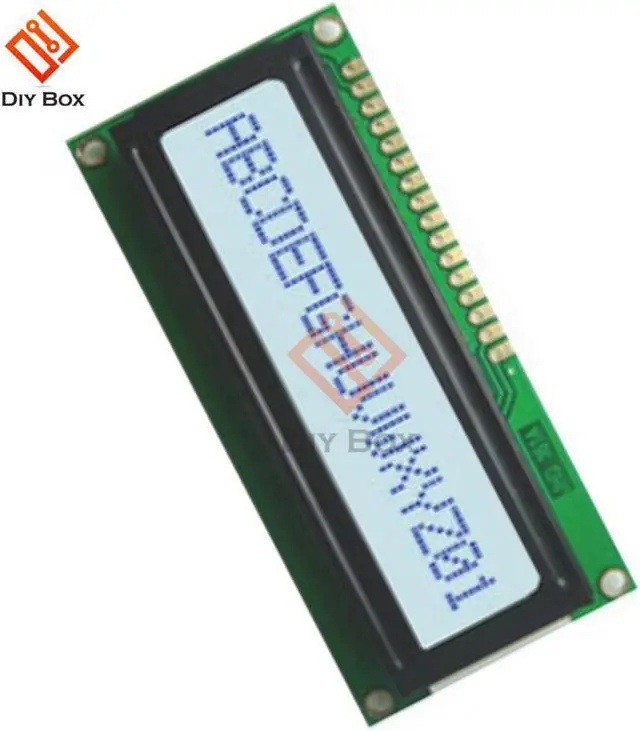

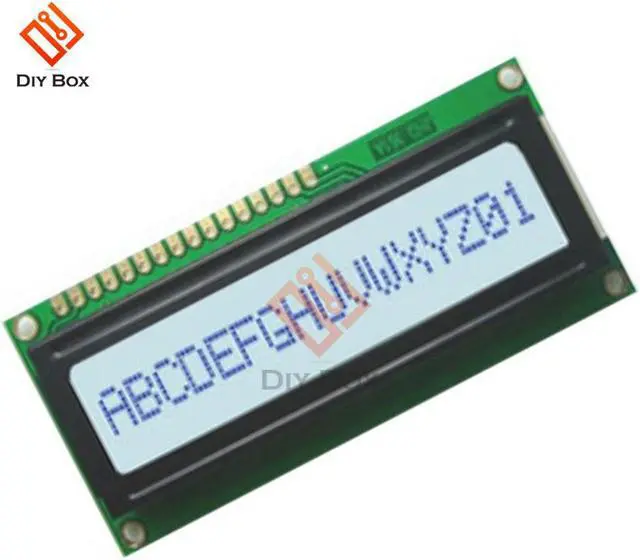

White LED Backlight 1601 16X1 Character Digital LCD Display Module LCM STN SPLC780D KS0066 5V Single Row Interface Board
- White LED Backlight 1601 16X1 Character Digital LCD Display Module LCM STN SPLC780D KS0066 5V Single Row Interface Board
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:1601LCD 5V LCD Screen Board
Dimensions: 80.0X36.0X13.0MM
Sight size: 64.5X13.8/16.0 MM
Point size: 0.55WX0.6 H character size: 3.2x6.35 mm
Drive voltage: 5.0V
The drive: splc780d or ks0066
Backlight: White LED backlight;
Interface: 16 single row interface
Operating temperature: -0 ---- 50 degrees or -20 - 70 degrees
Storage Temperature: -10-60 degrees or -30 ----- 80 degrees
Package Included:
1PCS * White1601 16X1 Character LCD Display Module LCM STN SPLC780D / KS0066
Model Number:1601LCD 5V LCD Screen Board
Dimensions: 80.0X36.0X13.0MM
Sight size: 64.5X13.8/16.0 MM
Point size: 0.55WX0.6 H character size: 3.2x6.35 mm
Drive voltage: 5.0V
The drive: splc780d or ks0066
Backlight: White LED backlight;
Interface: 16 single row interface
Operating temperature: -0 ---- 50 degrees or -20 - 70 degrees
Storage Temperature: -10-60 degrees or -30 ----- 80 degrees
Package Included:
1PCS * White1601 16X1 Character LCD Display Module LCM STN SPLC780D / KS0066
