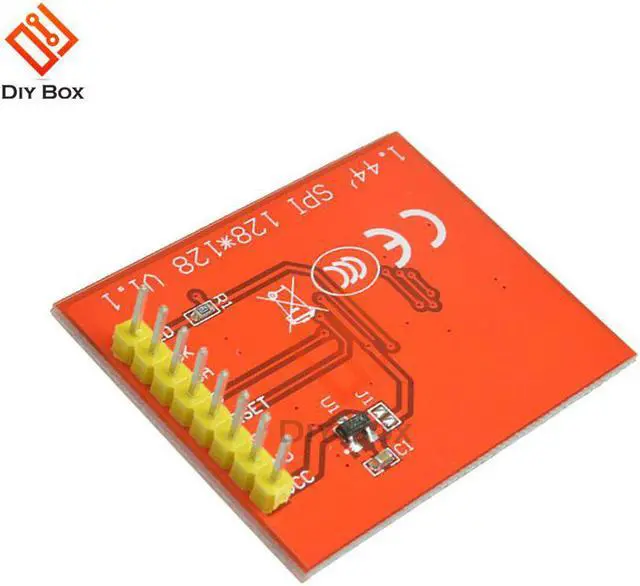

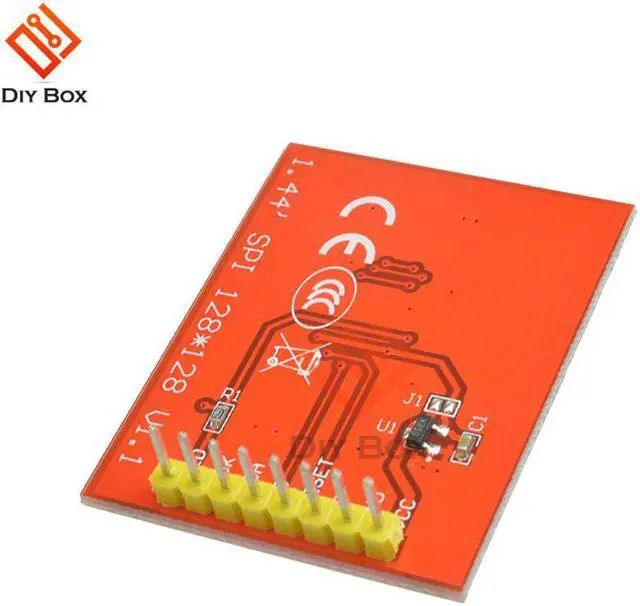

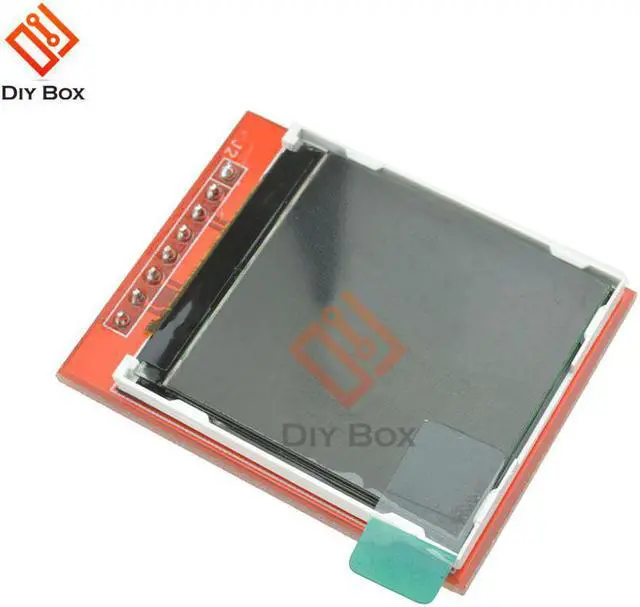

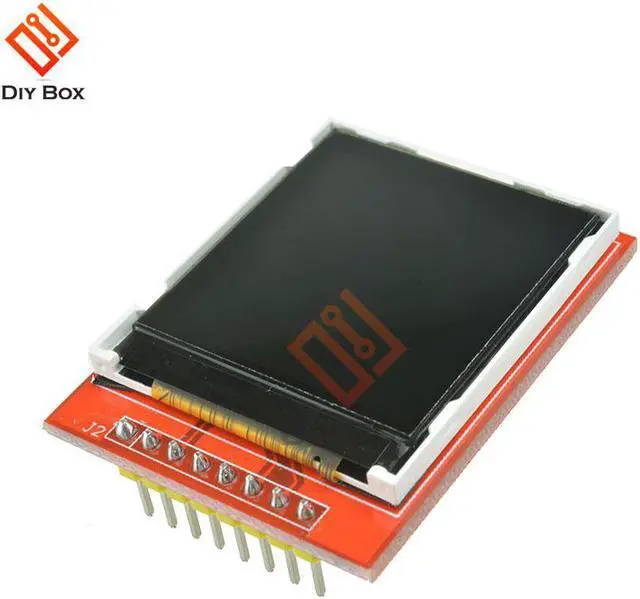

1.44' LCD TFT Display Red Serial 128X128 SPI ST7735 TFT LCD Screen Panel Module for Arduino Mega2560 STM32 SCM 5110 Raspberry Pi

Origin:CN(Origin)
Model Number:128*128 Display Screen Module Board

Description:
1.44-inch color screen, support 16BIT RGB 65K color display, display rich colors
128X128 resolution, clear display
Using SPI serial bus, it only needs a few IOs to light up the display
With SD card slot for easy expansion experiment
Provide rich sample programs
Military-grade process standards, long-term stable work
Provide low-level driver technical support
Parameters:
Display color: RGB 65K color
SKU: MSP1443
Size: 1.44(inch)
Type: TFT
Driver chip: ST7735S
Resolution: 128*128 (Pixel)
Module interface: 4-wire SPI interface
Effective display area (AA area): 26.2x27.2(mm)
Module PCB backplane size: 29.7x43.36(mm)
Working temperature: -10~60
Storage temperature: -20~70
VCC power supply voltage: 3.3V~5V
Logic IO port voltage: 3.3V (TTL)
Power consumption: about 90mA
Product weight: 25(g)
Interface definition:
VCC: 5V/3.3V power input
GND: ground
CS: LCD chip select signal, low level enable
RESET: LCD reset signal, low level reset
A0: LCD screen register/data selection signal, high level: register, low level: data
SDA: SPI bus write data signal
SCK: SPI bus clock signal
LED: Backlight control, high-level lighting, if no control is required, connect to 3.3V to keep on
