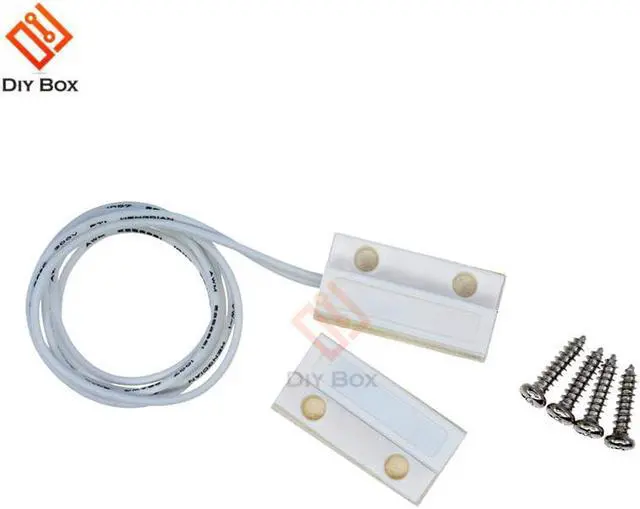

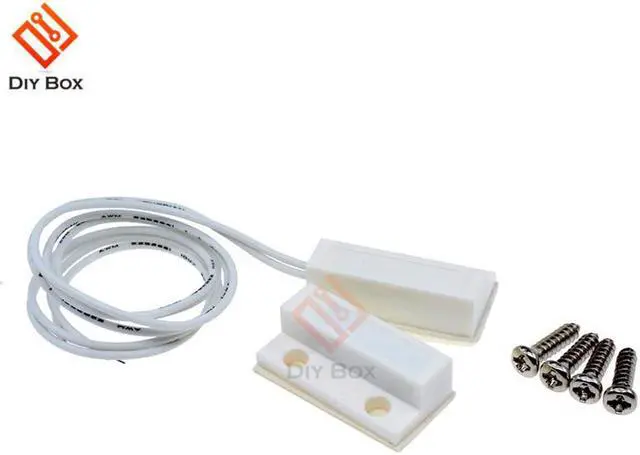

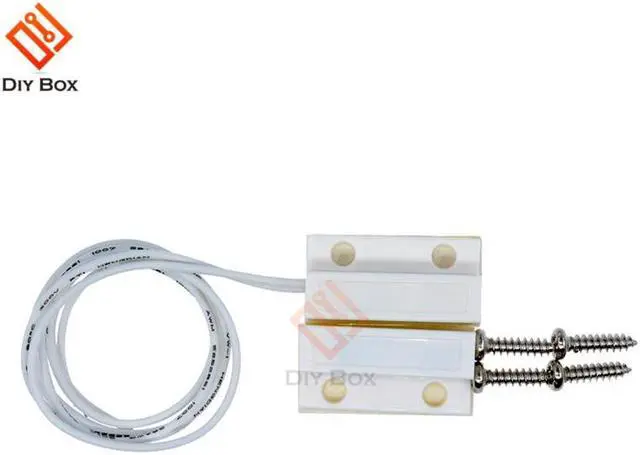

10Pair White MC-38 MC38 Wired Door Window Sensor Magnetic Switch Home Alarm System ABS With Screws

Certification:NONE
Origin:CN(Origin)
Model Number:MC38 Wired Door Window Sensor

Specification:

Color: white
Material: ABS
Dimension: approx. 27 x 14 x 8(mm)
Switch pattern: N/O normally open, alarm-on-broken
Voltage: 100V DC
Rated power: 10W
Actuation distance: 15-25mm
Wire lead: 24 Awg, about 350mm long

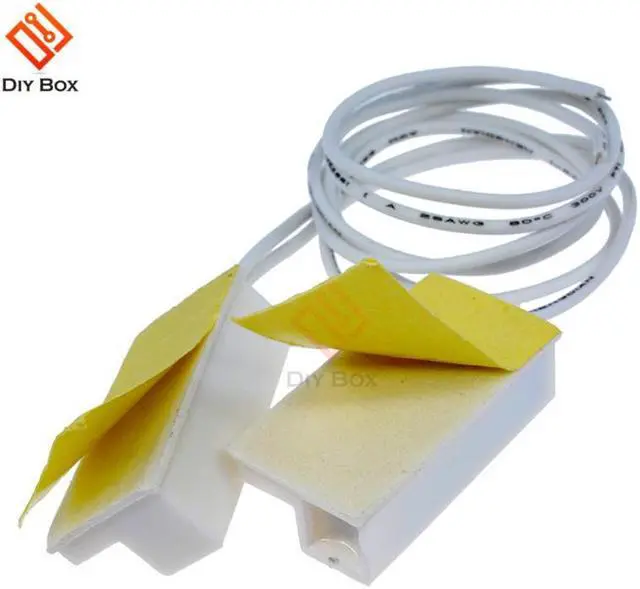

Mounting method: SMD (by screws or double-sided tapes)
Recommendations in application: wooden door, window
Features:
Easy installation Reliable performance
Good characteristic of abrasion-proof
Best Choice for you to protect family
There are two types of reed switches: "normally open" reed switches and "normally closed" reed switches. The metal reeds on a normally open switch stay open when there is no magnet near the switch. In the presence of a magnetic field, the contacts of a normally-open reed switch will close. A normally-closed reed switch is closed when it is not near a magnet; as a magnet is brought close to it, a normally-closed switch will open
Package included:
10 set x door magnets (packaged with screws)
Note:
Please allow 2-3mm errors due to manual measurement
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
