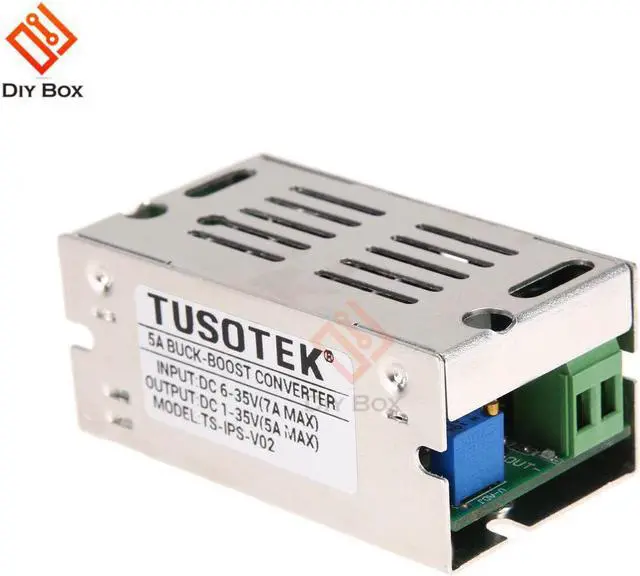

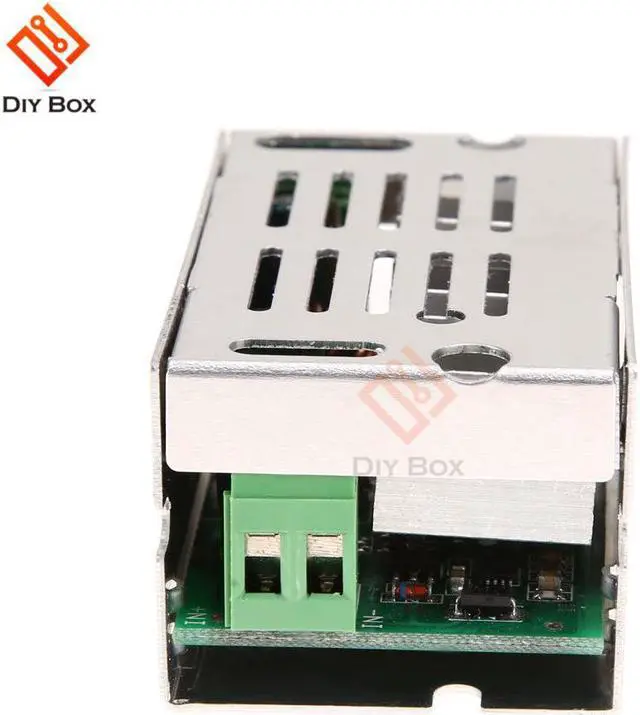

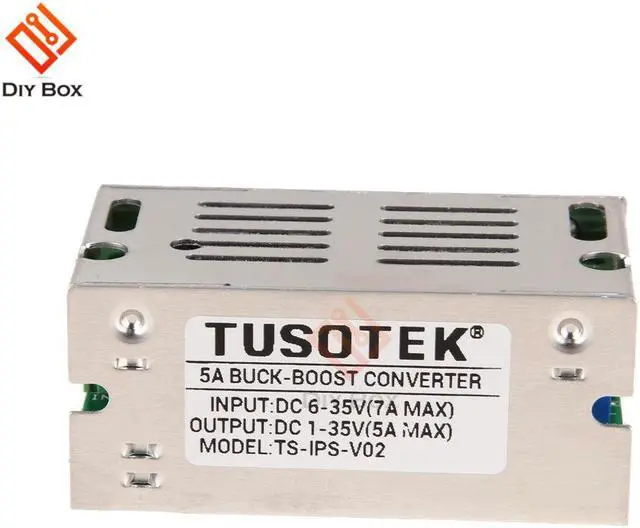

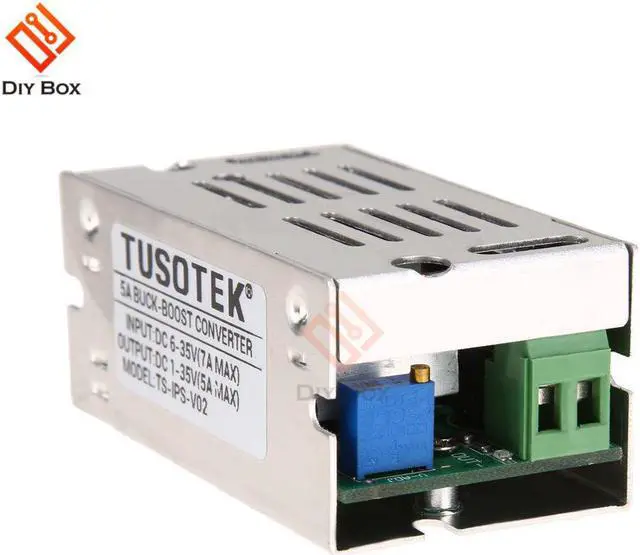

5A DC 6-35V 1-35V Auto Boost Buck Step Up Down Converter Module adjustable power supply Voltage Regulator With Aluminum Case

Origin:CN(Origin)
Certification:NONE
model:5A DC 6-35V 1-35V
type:Adjustable Auto Boost Step Up Down Converter Module

5A DC 6-35V 1-35V Auto Boost Buck Step Up Down Converter Module adjustable power supply Voltage Regulator With Aluminum Case
Feature:
Stable, reliable and heavy-duty performance
Easy to dissipate heat with aluminum case
Portable and easy to carry with the compact size and lightweight design
Convenient to operate with auto voltage regulate function
Powerful with the efficiency in step up mode is 90% and 88% in step-down mode
Used in notebook power supply, car power, industrial power, model power, embedded systems, and so on.
Specification:
Size:(LxWxH) 70 x 39 x 32 mm
Wide Input Voltage Range: DC 6 ~ 35V
Output Voltage: DC 1 ~ 35V
Conversion Efficiency: 90%
Maximum Output Current : 5A
Maximum Input Current : 7A
Operating Frequency : 120KHz
Note
:
1.Do not reverse the positive and negative terminal or it will damage this item.
2.The input current and output current may not reach the maximum value as the item works in long time.
3.This auto step-up/down module which supports the input voltage can higher or lower than the output voltage.
4.90% conversion efficiency was measured as 12V input voltage and 19V/2.5A output voltage.
5.The conversion efficiency is related to input and output voltage, current.
6.This is a voltage regulator module without constant current mode so that it can not connect to directly.
Package Included:
1 x 5A Auto Step Up/Down Regulator Module
