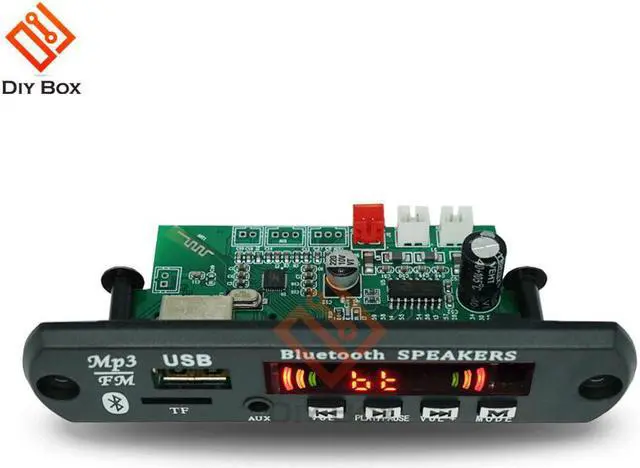

DC12V Car TF Card Version 2*15W Power Amplifier MP3 Decoder Board With Radio FM Function With Remote Control

Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Speakers
Certification:NONE
Type:AUDIO
Package:Yes
Bundle:Bundle 1
Dimensions (WxHxD)):10.70cm*3.50cm*2.50cm
Weight:0.038kg
Model Number:DC12V car TF card version 2*15W power amplifier

DC12V car TF card version 2*15W power amplifier MP3 decoder board with radio FM function with remote control
Description:
Bluetooth IC: Jerry AC6926 Bluetooth version is version 5.0

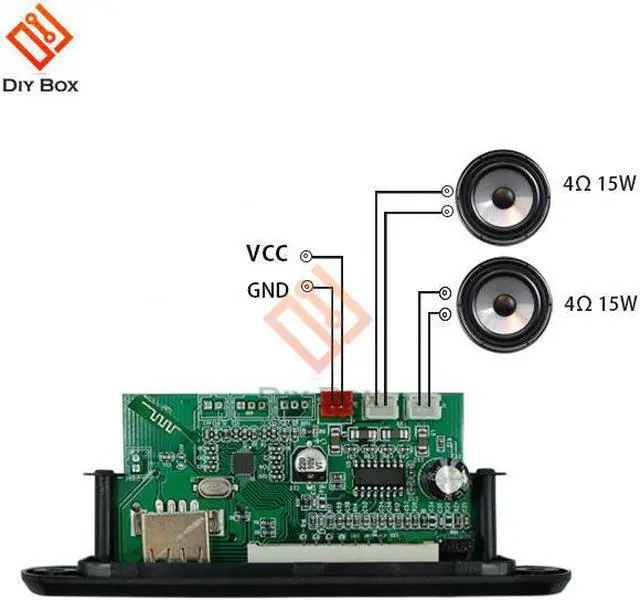

Power: 2*15W, 2 15W speakers can be connected at the same time
Music format: MP3 /WMA / WAV / APE / FLAC lossless format
Radio FM frequency: 87.5-107.5 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 12V
The main function:
1. Double decoding supports music in MP3/WMA/WAV/FLAC/APE lossless format;
2. Support Bluetooth function, Bluetooth version 5.0;
3. Power amplifier: 2*15W, can connect two 15W speakers at the same time;
4. With digital tube display;
5. Support MMC/SD/MMA and other cards, support USB interface (U disk);
6. Power-off memory function;
7. Support infrared remote control operation at a distance of 5-10 meters;
8. Support external audio source input LINE IN;
9. Support for radio FM, radio frequency band (87.5MHZ108.0MHZ);
10. Buttons: Four-button multi-directional control, VOL-/ AUTO / VOL+ / MODE;
Key operation details
1. VOL- button (previous song/volume down): in MP3 state, short press VOL- to last song, long press to decrease volume; in FM state, short press to increase a station number; in Bluetooth Under the function, short press is the previous Bluetooth song, long press is the volume decrease.
2. AUTO button (play/pause): short press AUTO in MP3 state to play/pause; short press in FM state to play/pause, short press to automatically close and save the station; short press in Bluetooth function to play /time out.
3. VOL+ button (next song/volume increase): in MP3 state, short press VOL+ for the next song, long press to increase the volume; in FM state, short press to adjust the station number down; in the Bluetooth function Short press for the next Bluetooth song, long press to decrease the volume.
4. MODE button: switch between USB / TF / FM / audio input / Bluetooth function in turn.

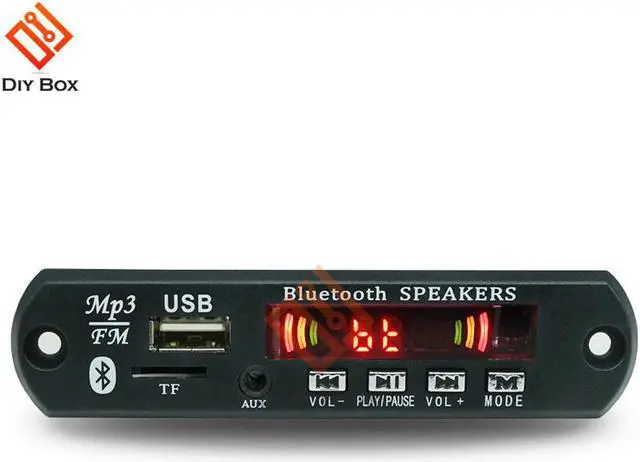

The following are the functions of each interface
USB: Connect U disk (maximum support 32GB)
LED: digital screen display, red
Infrared receiver module
TF: Connect TF memory card (maximum support 32GB)
AUX: Audio input interface
VOL-: Short press is to select the previous song; long press is to decrease the volume
PLAY/PAUSE: Short press is to switch between pause and play; long press is to radio FM automatic station
VOL+: Short press is to select the next song; long press is to increase the volume
MODE: USB / TF / FM / AUX / BLUETOOTH sound switch
Package Included:
MP3 decoder board X1
Remote control X1
Connection line X3
