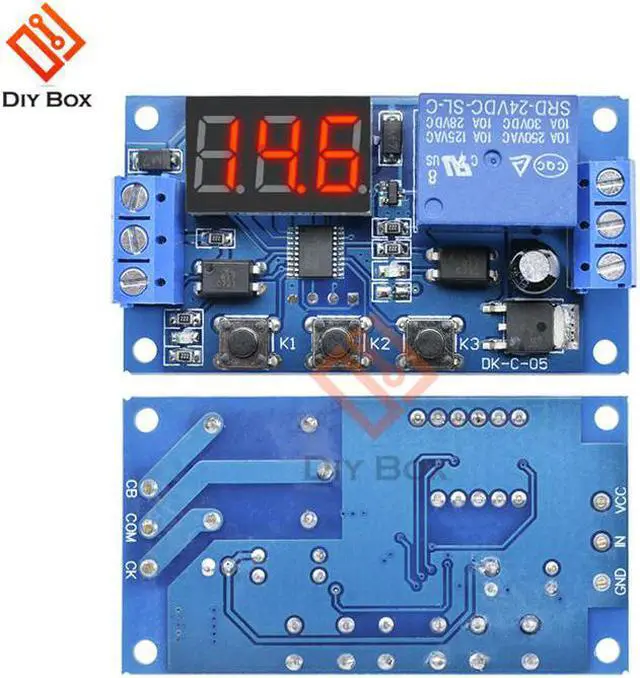

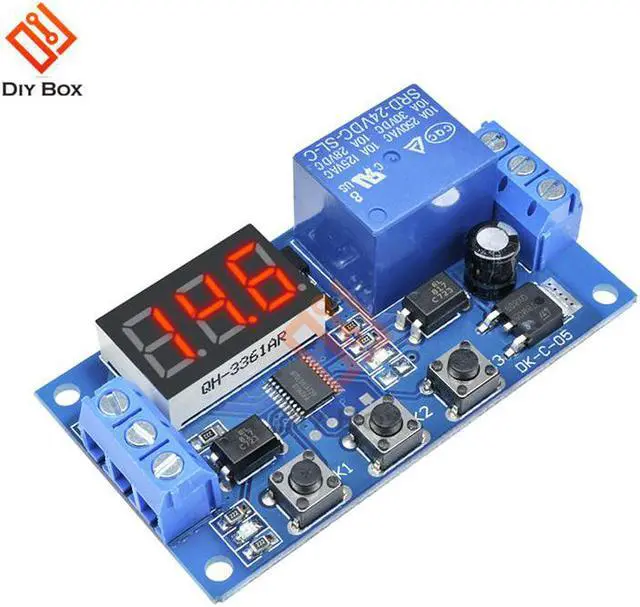

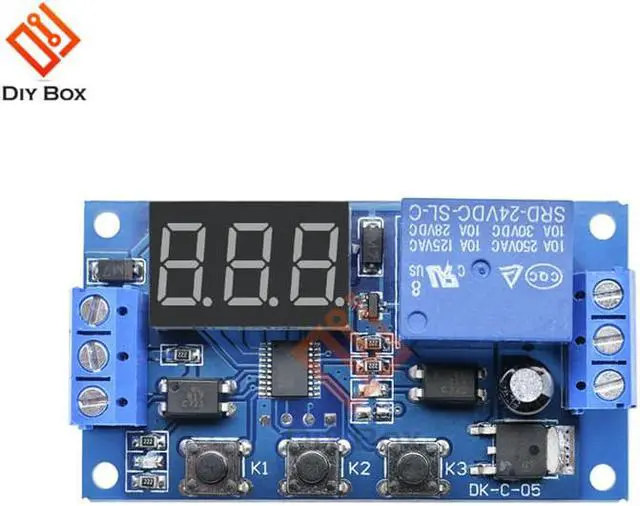

DC 24V Time Delay Relay Module Digital Led Delay Timer Module Switch Control Relais Cycle High PerformanceTimer Module

Origin:CN(Origin)
State of Assembly:Almost Ready
Model Number:DC 24V Time Delay Relay Module
Compatibility:All Compatible

This is a delay timer module with high performance, which is convenient and practical for users.
Features:
upgrades to simplify, meeting the users' needs.
Increase the power supply anti-reverse function.
The use of opto isolated input and output, enhanced anti-jamming capability and consumption.
The last setting parameters can be memorized after power off.
Signal terminal voltage signal can be maintained for a long time.

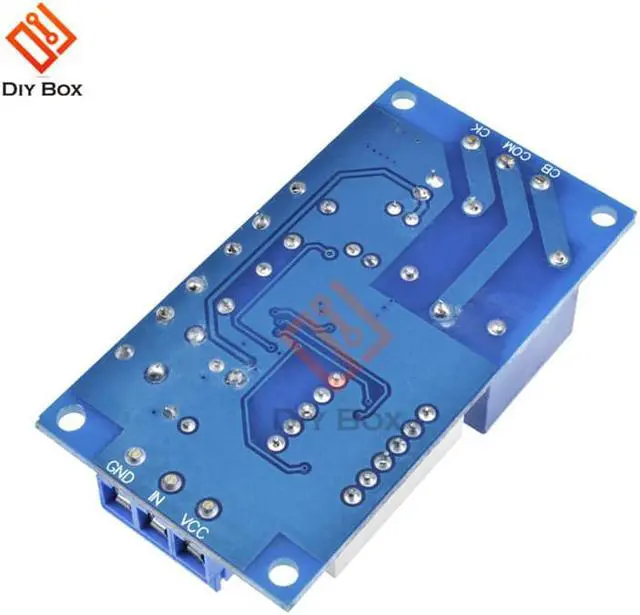

To ensure stability, industrial grade PCB board.
Working modes selection: after power on, long press K1 for 2s, later into the selection of modes: P1~4.
P-1: Monostable trigger delay, a signal to trigger relay, time is up, the relay disconnect;
P-2: A signal trigger and countdown begins, T1 seconds after, the relay open T2 seconds, then close;
P-3: Open T1 seconds, disconnect T2 seconds, infinite loop. Users can set the relay time T1 and T2;
P-4: The relay opens when a signal triggers, when the trigger signal disappears, digital countdown begins, and the relay closes when the time is up.
Specifications:
Working Voltage: DC 24V
Timing Range(Settable): 0.1~99.9 seconds; 1~999 seconds; 1~999 minutes
Signal Voltage: DC 4~20V
Output Capacity: Can Control the Load within DC 30V 10A or AC 220V 10A
Static Current: 20mA
Working Current: 50mA
Working Temperature: -40~85°C
PCB Size: 64 * 35 * 18mm / 2.52 * 1.4 * 0.7in (L * W * H)
PCB Weight: 25g / 0.89oz
Package:
1 X  Delay Timer Module
