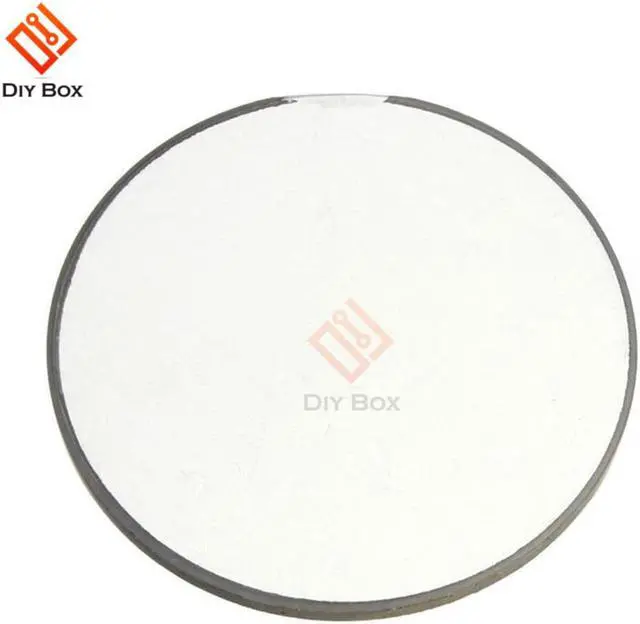

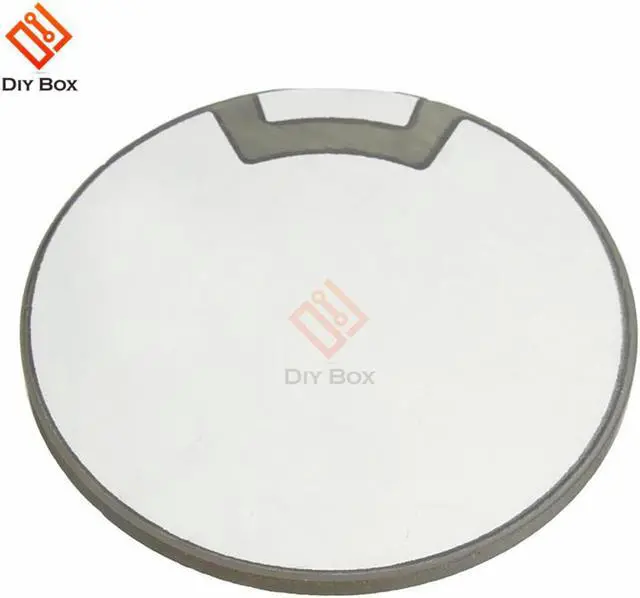

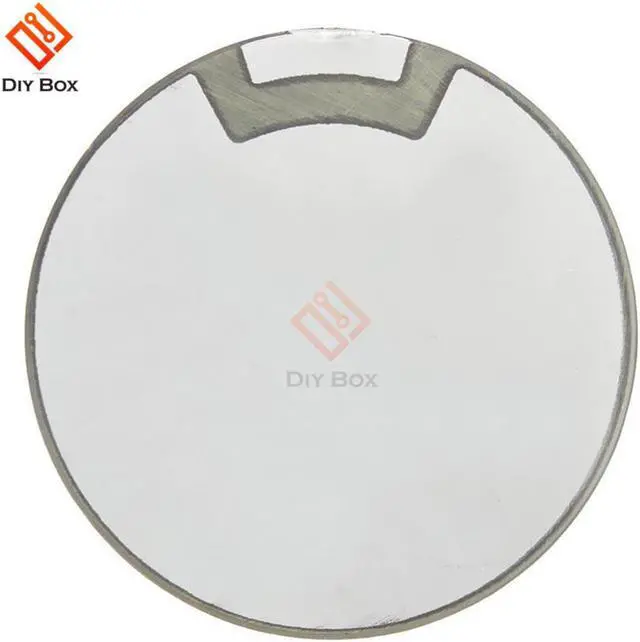

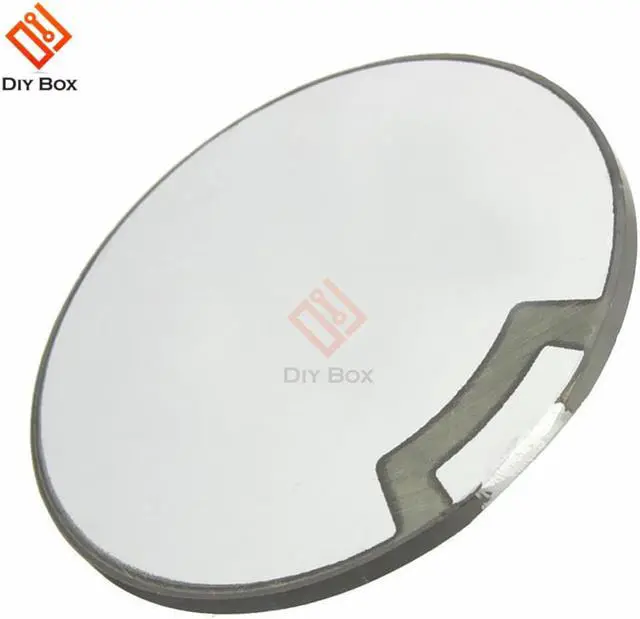

40khz 35W Ultrasonic Piezoelectric Cleaning Transducer Plate Electric Ceramic Sheet For Ultrasonic Cleaning Equipment
- 40khz 35W Ultrasonic Piezoelectric Cleaning Transducer Plate Electric Ceramic Sheet For Ultrasonic Cleaning Equipment
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:Ultrasonic Piezoelectric Cleaning Transducer
model:40khz 35W Ultrasonic Cleaning Equipment
type:Ultrasonic Cleaning Equipment
40khz 35W Ultrasonic Piezoelectric Cleaning Transducer Plate Electric Ceramic Sheet For Ultrasonic Cleaning Equipment
Product size and performance parameters:
Resonant frequency (KHz): 40 ± 1
Static capacitance (pF): 8500 ± 10%
Resonance impedance (): 20
Dimensions: 50 * 2.6mm (diameter * height)
Power (W): 35w
Insulation resistance (2500V DC): 100M
Features:
1. Low heat.
2. Good thermal stability.
3. Frequency and static capacitance strong consistency.
4. Resonant impedance is low.
5. The average length of life.
6. It can be widely used in a variety of ultrasonic cleaning equipment.
7. High performance: mechanical Q value, high vibration efficiency
Special Note:
Received ceramic sheet is not terminal and connecting terminals
Package:
1 x Ultrasonic electric ceramic sheet
Model Number:Ultrasonic Piezoelectric Cleaning Transducer
model:40khz 35W Ultrasonic Cleaning Equipment
type:Ultrasonic Cleaning Equipment
40khz 35W Ultrasonic Piezoelectric Cleaning Transducer Plate Electric Ceramic Sheet For Ultrasonic Cleaning Equipment
Product size and performance parameters:
Resonant frequency (KHz): 40 ± 1
Static capacitance (pF): 8500 ± 10%
Resonance impedance (): 20
Dimensions: 50 * 2.6mm (diameter * height)
Power (W): 35w
Insulation resistance (2500V DC): 100M
Features:
1. Low heat.
2. Good thermal stability.
3. Frequency and static capacitance strong consistency.
4. Resonant impedance is low.
5. The average length of life.
6. It can be widely used in a variety of ultrasonic cleaning equipment.
7. High performance: mechanical Q value, high vibration efficiency
Special Note:
Received ceramic sheet is not terminal and connecting terminals
Package:
1 x Ultrasonic electric ceramic sheet
