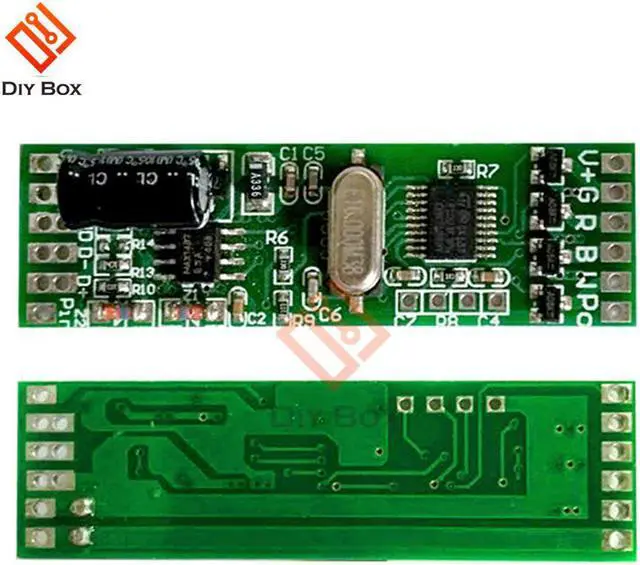

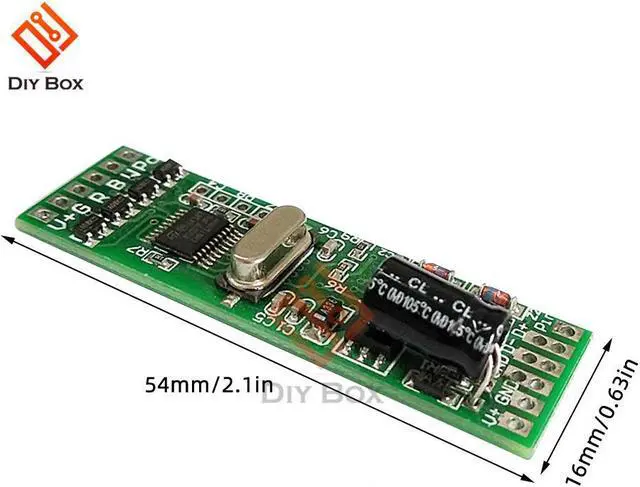

4-Channel DMX512 DM-113 DC12-24V 2A 192W Constant Current Module Decoder Board Four-channel Constant Voltage Decoder Board

Origin:CN(Origin)
Model Number:DMX512 DM-113 decoder board

Product selling point:
1. Protocol: The standard DMX512 protocol (1990) is adopted, with strong modesty;
2. Transmission: RS485 differential transmission, which has the characteristics of high resistance to interference, long transmission distance, and convenient wiring;
3. Constant current: It has a high-precision constant current circuit to ensure high LED light efficiency and low light decay.
4. Power on: there is no impact when booting up (the LEDs are all off at the moment of booting), which protects the LEDs
5. Grayscale: 0-100% dimming, 256*256*256 grayscale;
6. Power supply; DC power supply.

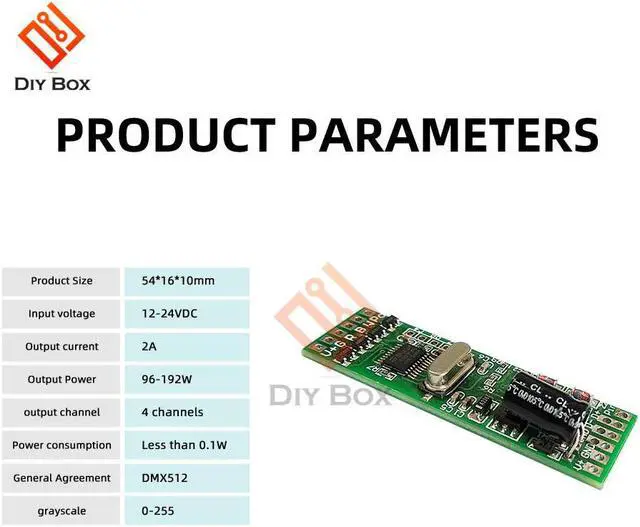

Product parameters:
Item model number: DM-113
Input voltage: 1224VDC
Output current: 2A
Output power: 192W
Power consumption: less than 0.1W

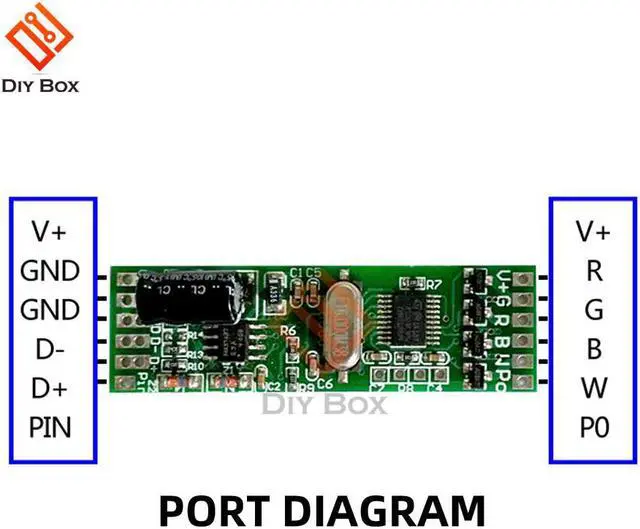

Output channel: four channels
Grayscale: 0-255
Mainly used in high-power full-color wall washers, flood lights, buried lights, underwater lights, stage lights, tunnel lights, etc.
Product function description:
Working in tandem:
Each module is connected in series, no need to set the address, the address is automatically assigned in sequence, it is very convenient to use, the signal distance between drivers can reach 100 meters, and 170 driver boards can be connected
Working in parallel:
Each module is connected in parallel, and an amplifier needs to be added every 32 modules (this number is a theoretical value, the actual value should be subject to the engineering field test), and each module is set with a unique address (can be written by a code writer);
Operating mode:
When the DMX512 controller is connected, it will change according to the effect of the controller. When the DMX512 controller is not connected, the built-in effects (color jump, gradient) will be automatically run; in serial mode, when the main controller is not connected, the first A decoder can automatically become the master to achieve synchronous online changes;
Package Included:
Type A 4-channel DMX512 DM-113 DC12-24V 2A 192W constant current module decoder board Four-channel constant voltage decoder board *1
