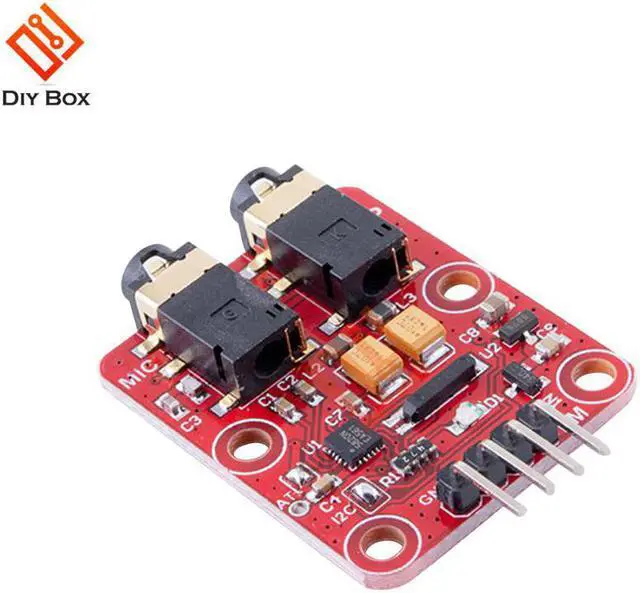

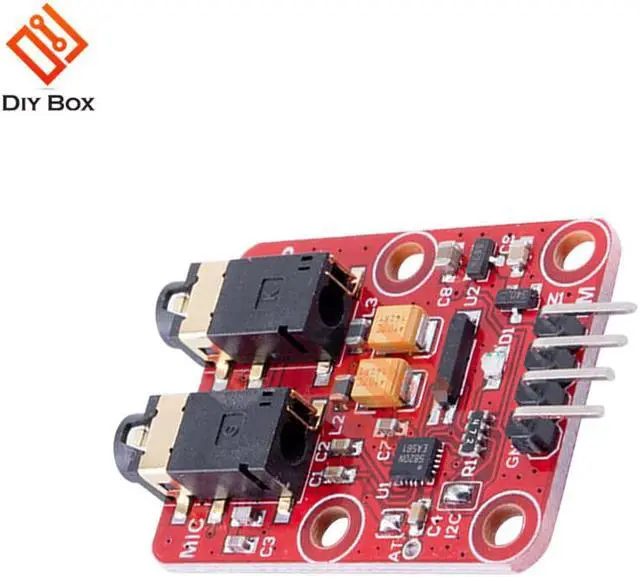

RDA5820N FM Frequency Modulation Transceiver Module 76-108.0MHz FM Broadcast Transmitter Receiver

Origin:CN(Origin)
Model Number:FM radio transceiver module

Features:
1. RDA5820NS is a generation single chip broadcast FM receive/transmit tuner with integrated synthesizer, IF selectivity and MPX decoder
2. Using CMOS technology to support multi-interface, RDA5820NS has a powerful low-IF digital audio processor, which makes it have good sound and with different receiving conditions
3. Using RDA double synthesizer, all-digital transmission structure, so that it has good transmission performance
4. Support 115M frequency band FM and RDS/RBDS transceiver, support power supply range is 1.8-5.5V
Digital Automatic Gain Control (AGC) Digital Low-IF Tuner Digital Adaptive Noise Cancellation Image Suppression Downconverter Mono/Stereo Switch
Parameters:
Voltage: 3.3-5V

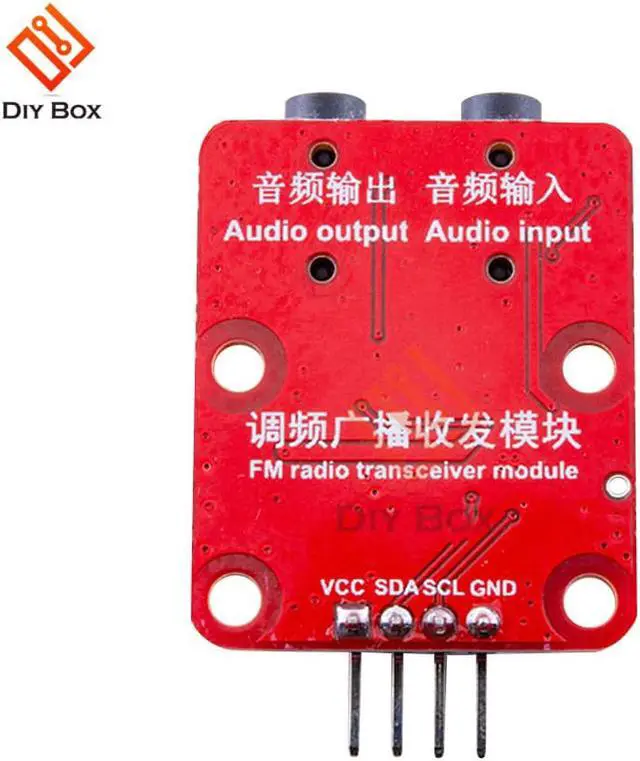

Interface: I2C
Output: can be directly plugged into headphones
Antenna: The earphone cable is used as the antenna by default

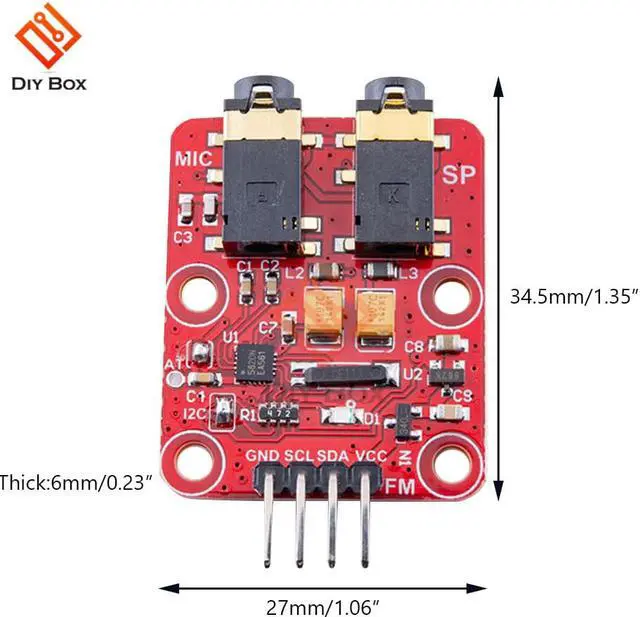

Fixing hole: 3mm
Frequency: 76-108.0MHZ
No-load current: 0.23mA
The package includes:
FM module X1
