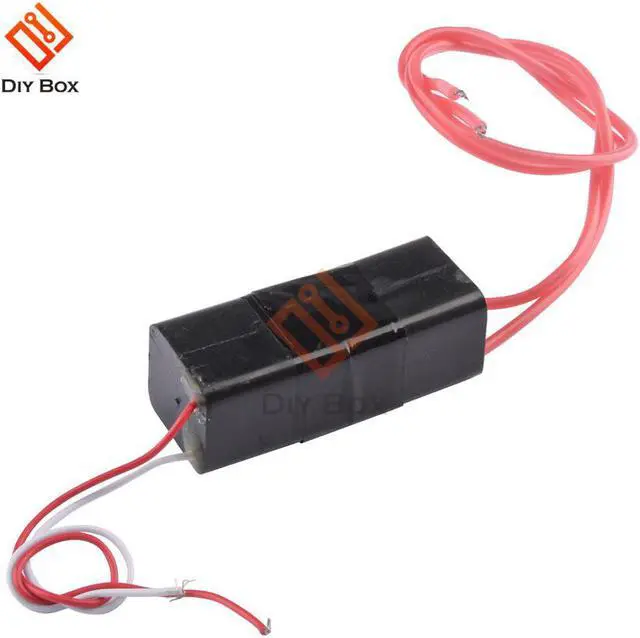

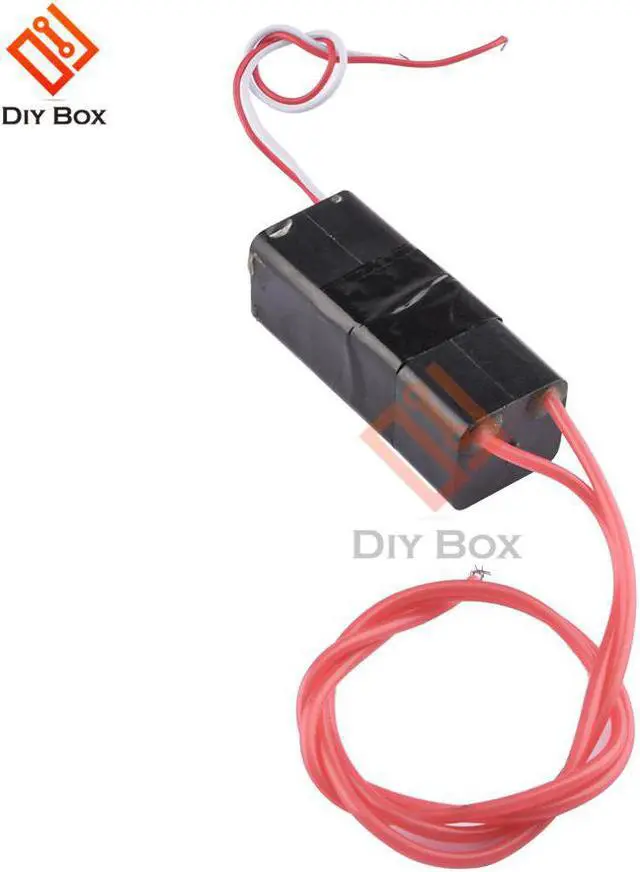

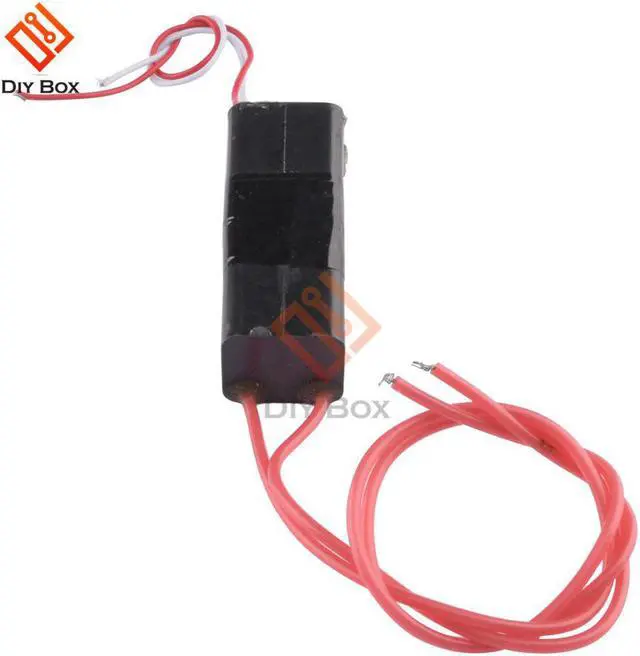

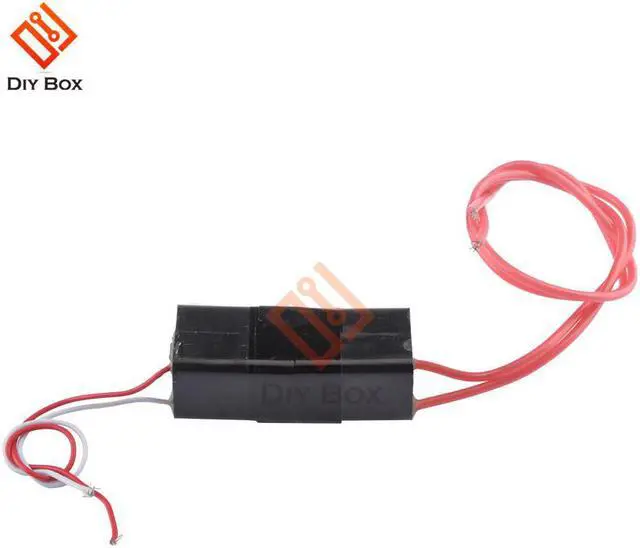

3.6V/4.8V High Voltage Pulse Generator Inverter 40kV-50kV AC Super Arc Ignition Module Pulse Igniter Coil Module 1800mA
- 3.6V/4.8V High Voltage Pulse Generator Inverter 40kV-50kV AC Super Arc Ignition Module Pulse Igniter Coil Module 1800mA
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:40-50KV arc high voltage generator high voltage package module
Product selling point
1: Wide range of applications
2: Small size
3: Simple to use
4: Working current: 1800mA
5: Ignition distance: 2-10mm
Parameter:
Product name: DC pulse high voltage package
Product size: length 50mm width 20mm thickness 18mm
Input voltage: DC 3.6V, 4.8V
Output voltage: 40-50KV
Working current: 1800mA
Ignition distance: 2-10mm
Inlet Diameter & Length 1.2±0.03 & 130mm
Output live wire diameter & wire length 2.2±0.03 & 280mm
Output ground wire diameter & wire length 2.2±0.03 & 280mm
Weight 35g
Product use: security equipment accessories, kitchen stove ignition, electrostatic adsorption experiments
Package list:
1*High Voltage Generator
Model Number:40-50KV arc high voltage generator high voltage package module
Product selling point
1: Wide range of applications
2: Small size
3: Simple to use
4: Working current: 1800mA
5: Ignition distance: 2-10mm
Parameter:
Product name: DC pulse high voltage package
Product size: length 50mm width 20mm thickness 18mm
Input voltage: DC 3.6V, 4.8V
Output voltage: 40-50KV
Working current: 1800mA
Ignition distance: 2-10mm
Inlet Diameter & Length 1.2±0.03 & 130mm
Output live wire diameter & wire length 2.2±0.03 & 280mm
Output ground wire diameter & wire length 2.2±0.03 & 280mm
Weight 35g
Product use: security equipment accessories, kitchen stove ignition, electrostatic adsorption experiments
Package list:
1*High Voltage Generator
