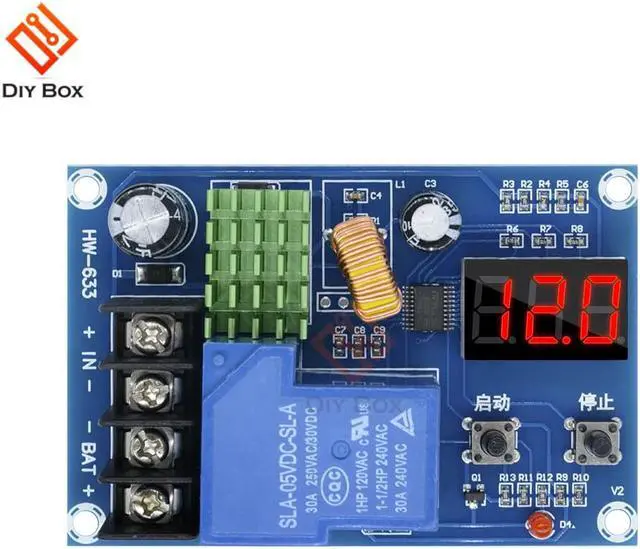

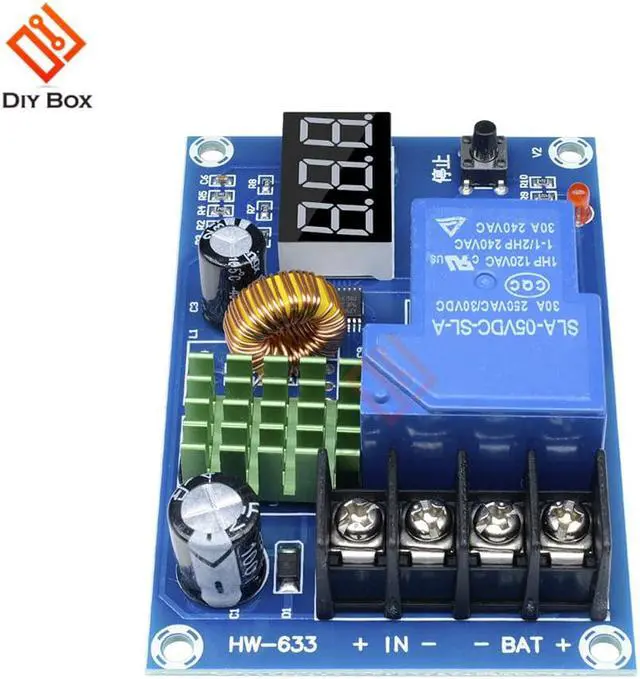

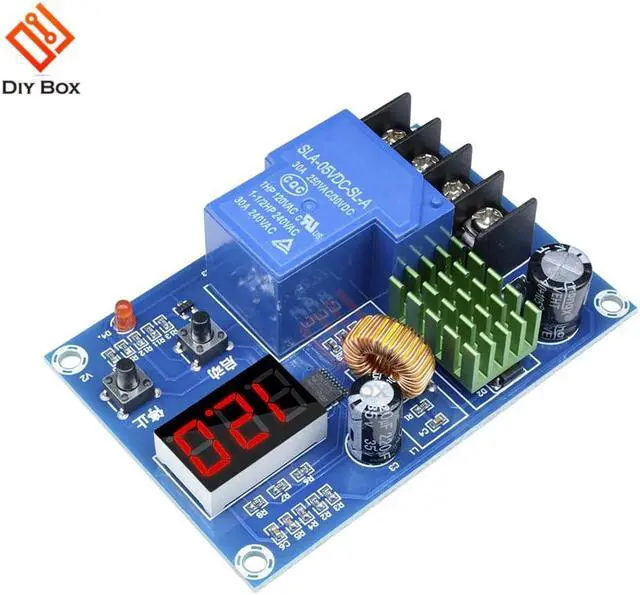

6-60V Lead-acid Lithium Charging Control Module Charge Controller Protection Switch 12V 24V For Home Charger Solar

Certification:NONE
Accessory Type:Charger Accessories
Origin:CN(Origin)
Model Number:6-60V Lead-acid Lithium Charging Control Module
model:charge controller

Input Voltage:DC 6-60V
Display Accuracy:0.1V
Control Accuracy:0.1V
Output Type:direct output
Voltage Tolerance:±0.1V
Apply For:6-60V MAX 80V
Dimension:81*54*18mm
Use: In the setting voltage value, start button play button raised, about stop button role to down key
1.
Set the start voltage:
Normal display voltage state, press to a starting voltage button ,to display the start charging voltage.
long Press the start button, digital flashes, by start and stop button, set the start charging voltage value.
2.
Set Stop voltage:
Normal Voltage normal display mode, press to a Stop voltage button ,to display the Stop charging voltage.
long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.
3.
Setting Error:
Energized state while holding down the start / stop button, digital display 888, which is the factory setting.
Package:
1 x
Digital display
Lead acid Charge Control Module
