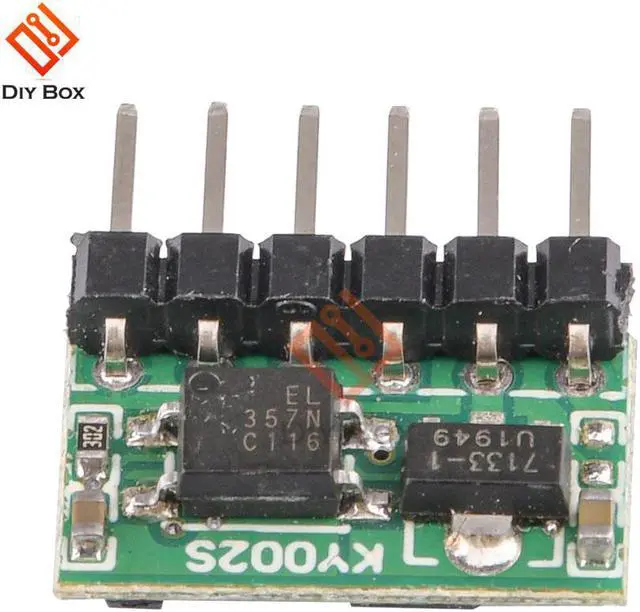

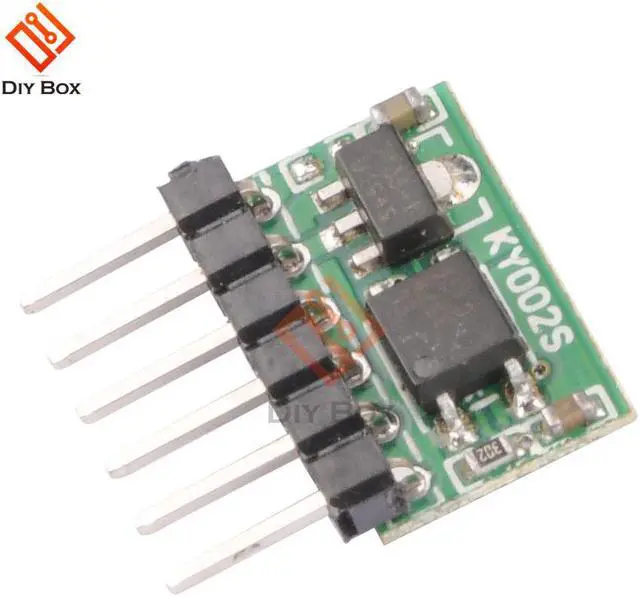

DC 3V-24V KY002S Single Key Switch Bistable High Power 5000mA Optocoupler Isolation
- DC 3V-24V KY002S Single Key Switch Bistable High Power 5000mA Optocoupler Isolation
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:Single key switch module
Product selling point:
1. Using high-quality materials, the quality is guaranteed
2. Suitable for a variety of electronic switches
3. Low standby power consumption and high output power
4. Small size and beautiful appearance
5. Optocoupler isolation has good anti-interference performance
Parameter:
Power supply voltage: DC 3V-24V;
Standby current: less than 2uA;
Allowable continuous output current:
5A (when the power supply voltage is 5V-24V);
4A (when the power supply voltage is 4V-5V);
2A (when the power supply voltage is 3V-4V).

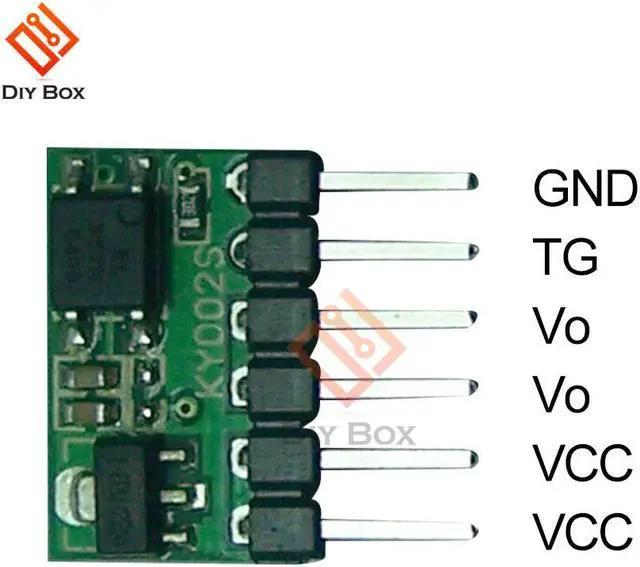

Pin Definition:
VCC: Power
VO: output terminal
Tg: trigger signal input terminal
GND: power ground
Notice:

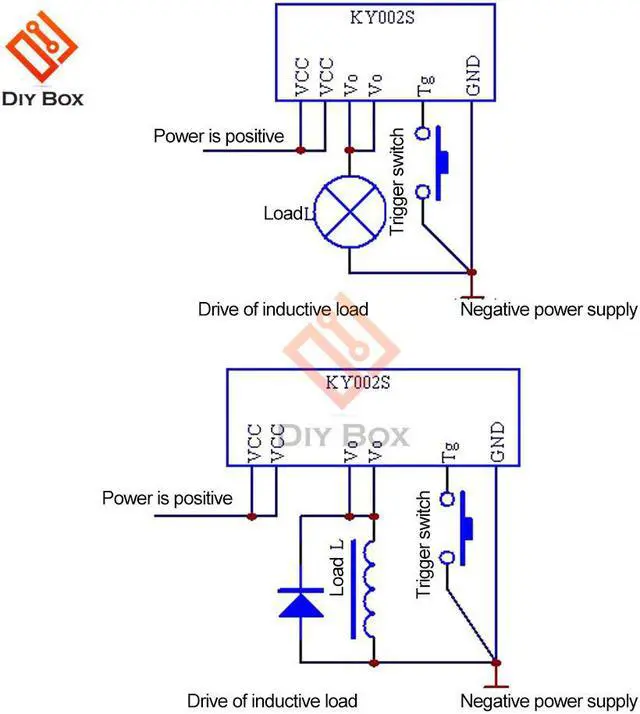

When driving an inductive load, a suitable wheeling diode should be connected in parallel with the load to avoid damage to the switching elements of the circuit.
Package Included:
Switch module *1
Model Number:Single key switch module
Product selling point:
1. Using high-quality materials, the quality is guaranteed
2. Suitable for a variety of electronic switches
3. Low standby power consumption and high output power
4. Small size and beautiful appearance
5. Optocoupler isolation has good anti-interference performance
Parameter:
Power supply voltage: DC 3V-24V;
Standby current: less than 2uA;
Allowable continuous output current:
5A (when the power supply voltage is 5V-24V);
4A (when the power supply voltage is 4V-5V);
2A (when the power supply voltage is 3V-4V).
Pin Definition:
VCC: Power
VO: output terminal
Tg: trigger signal input terminal
GND: power ground
Notice:
When driving an inductive load, a suitable wheeling diode should be connected in parallel with the load to avoid damage to the switching elements of the circuit.
Package Included:
Switch module *1
