3.3 -30V PWM Pulse Number Frequency Duty Cycle Adjustable Signal Generator Module LCD Display Square Wave Rectangular Wave

Origin:CN(Origin)
Certification:NONE
Model Number:Adjustable Signal Generator Module

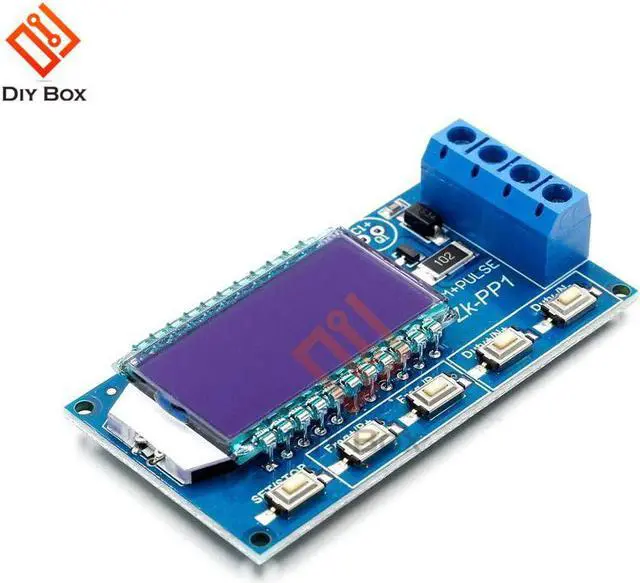

3.3 -30V PWM Pulse Number Frequency Duty Cycle Adjustable Signal Generator Module LCD Display Square Wave Rectangular Wave
Description:
PWM signal generator, square wave rectangular wave signal generator
Used to generate a square wave rectangular wave signal, which is supplied to a DC motor or a stepper motor driver
Combine the driver to realize dimming, speed regulation, control solenoid valve, etc. However, it is not possible to directly drive loads such as electric lights, motors, and solenoid valves.

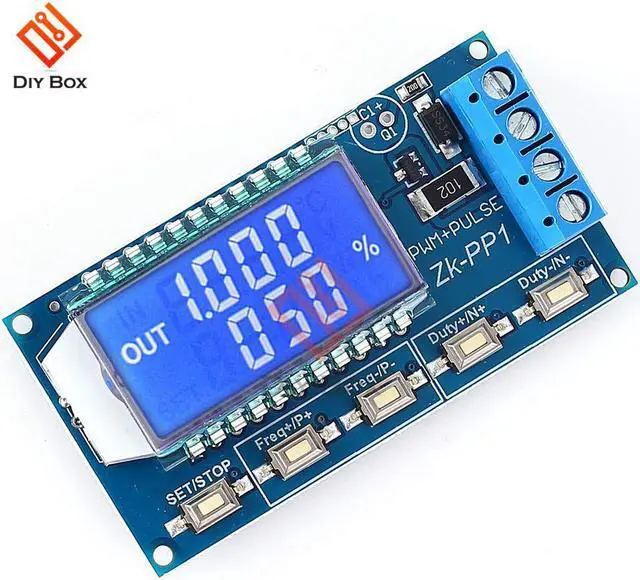

Feature:
Two modes can be selected:

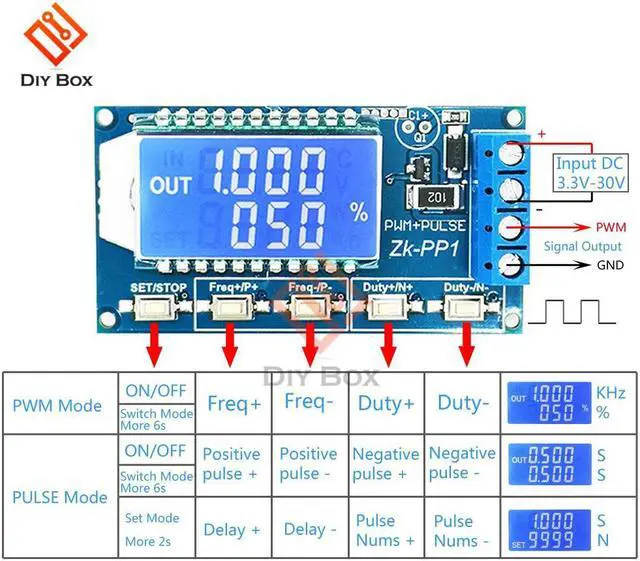

PWM mode - frequency (continuous), duty cycle, pulse number adjustable;
PULSE mode - positive pulse width time, negative pulse width time, delayed start time, and adjustable number of pulses.
With start and stop button, can control the output and stop of the signal

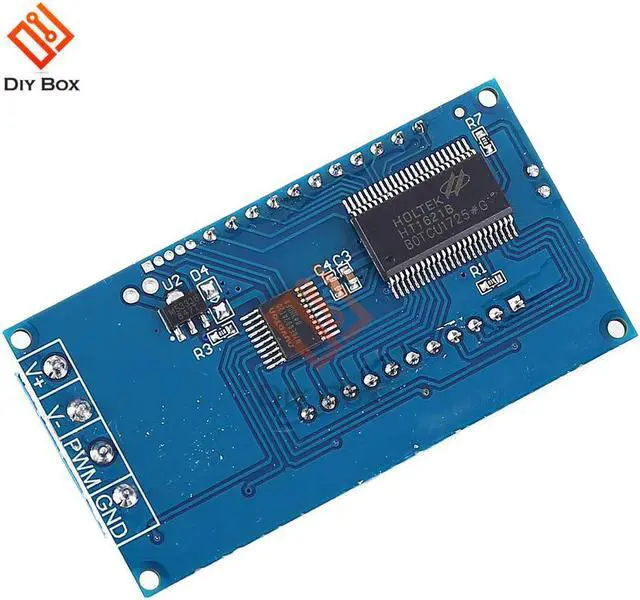

Wide voltage input 3.3 -30V, with anti-reverse protection, 5.08mm terminal wiring
Parameter:
Working voltage: 3.3 -30V, with anti-reverse protection
Frequency range: 1Hz -150KHz, accuracy about 2%
Duty cycle range: 0-100%, 1% stepping
Number of pulses: 1-9999, or infinite (display '----' stands for infinity)
Delay output time: 0.000s-9999s, the minimum can be set 1ms
Positive and negative pulse width length: 0.000s-9999s, the minimum can be set 1ms
Signal loading capacity: less than 30mA
Output signal amplitude: amplitude is equal to the supply voltage
Product size: 60mm*32mm*10mm
Note:
1.Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Included:
1 * 3.3 -30V PMW Pulse Generator Module
