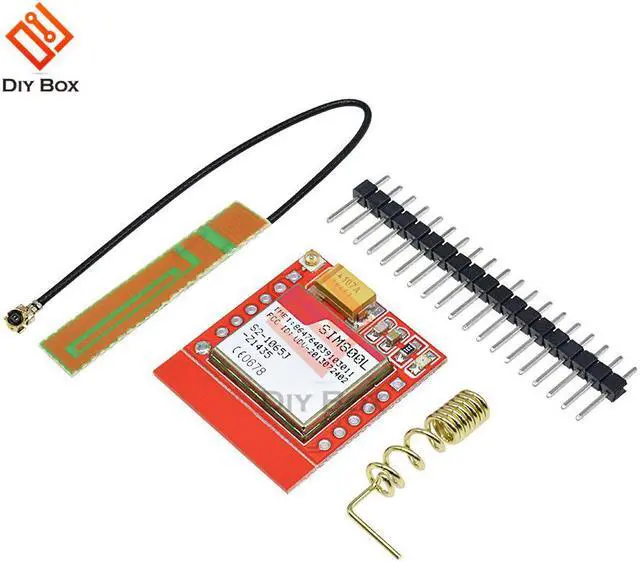

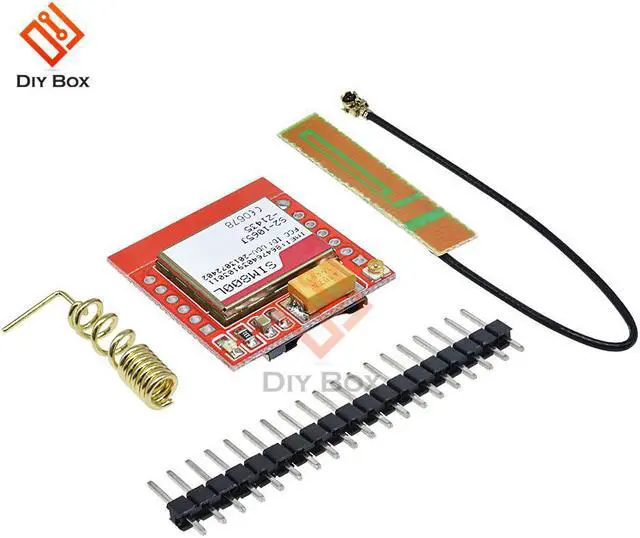

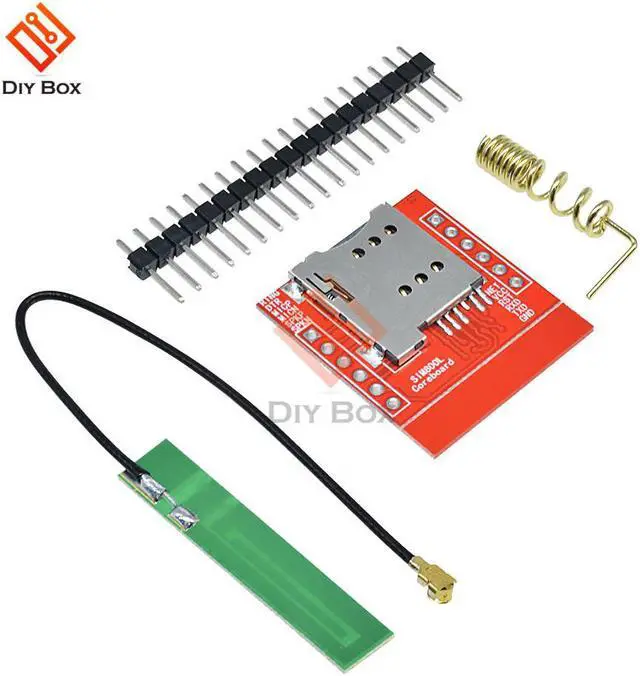

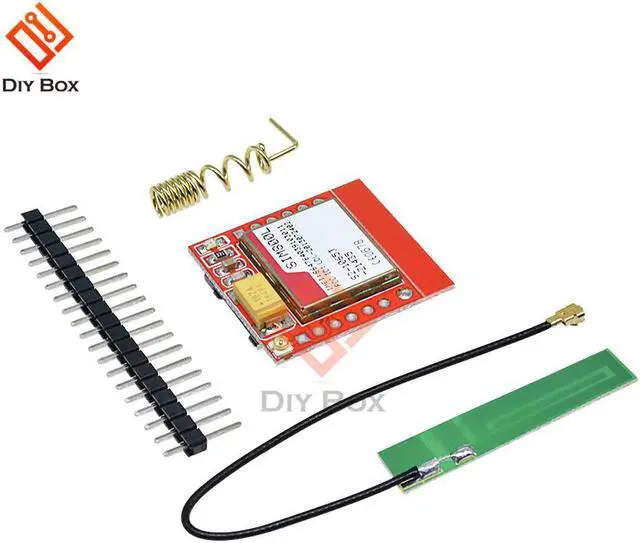

SIM800L GPRS GSM Module Core Quad-band TTL Serial Port IPX Interface PCB Antenna Micro SIM Card for Arduino Smart Phone
- SIM800L GPRS GSM Module Core Quad-band TTL Serial Port IPX Interface PCB Antenna Micro SIM Card for Arduino Smart Phone
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:SIM800L GPRS GSM Module
[SIM800L Module]
Chip: SIM800L
Voltage: 3.7 -4.2V
Support networks: China Mobile, China Unicom and global quad-band network
Module size: 2.5cmx2.3cm
TTL serial port for serial port, you can link directly to the microcontroller. No need MAX232
Power module automatically boot, homing network
Onboard signal lights all the way . It flashes slowly when there is a signal, it flashes quickly when there is no signal.
[Antenna PCB]
Frequency 2400 -2500 MHz
S.W.R. 2.0
Antenna Gain 3.0 ± 0.7dBi
Polarization Linear
Impedance 50 Ohm
Material of Radiator PCB
Cable Type O.D. 1.13 mm // 100 mm
Connector Type Mini Connector
Pull Test 1.0 Kg
Environmental:
Operation Temperature - 40 -65°C
Storage Temperature - 40 -80°C
Application:
1.IEEE 802.11 b/g/n WLAN System
2.Wireless Communication System
3.Wi-Fi / WiMAX / MIMO System
4.Laptop/Bluetooth/Zigbee Antenna
Model Number:SIM800L GPRS GSM Module
[SIM800L Module]
Chip: SIM800L
Voltage: 3.7 -4.2V
Support networks: China Mobile, China Unicom and global quad-band network
Module size: 2.5cmx2.3cm
TTL serial port for serial port, you can link directly to the microcontroller. No need MAX232
Power module automatically boot, homing network
Onboard signal lights all the way . It flashes slowly when there is a signal, it flashes quickly when there is no signal.
[Antenna PCB]
Frequency 2400 -2500 MHz
S.W.R. 2.0
Antenna Gain 3.0 ± 0.7dBi
Polarization Linear
Impedance 50 Ohm
Material of Radiator PCB
Cable Type O.D. 1.13 mm // 100 mm
Connector Type Mini Connector
Pull Test 1.0 Kg
Environmental:
Operation Temperature - 40 -65°C
Storage Temperature - 40 -80°C
Application:
1.IEEE 802.11 b/g/n WLAN System
2.Wireless Communication System
3.Wi-Fi / WiMAX / MIMO System
4.Laptop/Bluetooth/Zigbee Antenna
