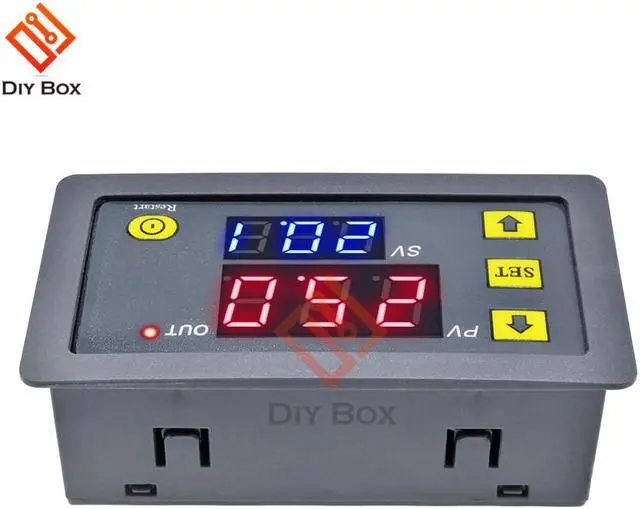

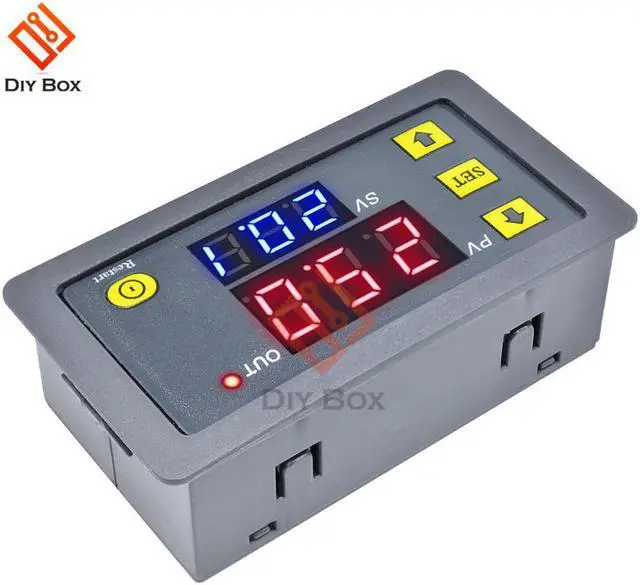

DC 12V Timing Delay Relay Module Cycle Timer LED Time Dual Digital Display Thermolator 0-999 mi With Swtich Case Instruments

Origin:CN(Origin)
Compatibility:All Compatible
State of Assembly:Ready-to-Go
Certification:NONE
Model Number:DC 12V Timing Delay Relay Module
Voltage:DC 12V
Type:Timing Delay Relay Module
Display:Dual Digital Display
Features:Cycle Timer Relay Control Switch Time Relay Module

Description:
Temperature range: -20 ~ +100 °
Resolution: -9.9 ° ~ 99.9 ° 0.1 °, other temperature 1 °
Temperature measurement accuracy: 1 °
Refresh frequency: about 0.5S
Input power: DC5V / 12V / 24V
Measurement input: 1 meter NTC (10K 0.5%) waterproof sensor
Output: All the way 10A relay
Environmental requirements: -10 ° ~ +60 ° Humidity 20% ~ 75%
Appearance size: 79 * 43mm
Hole size: 76 * 39mm

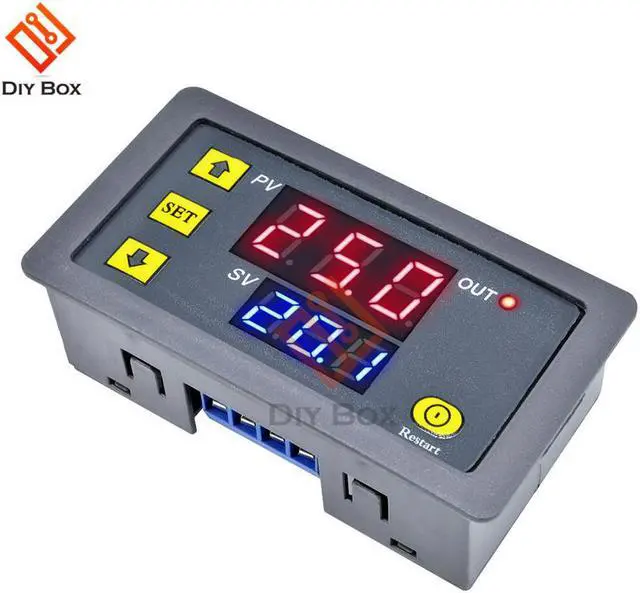

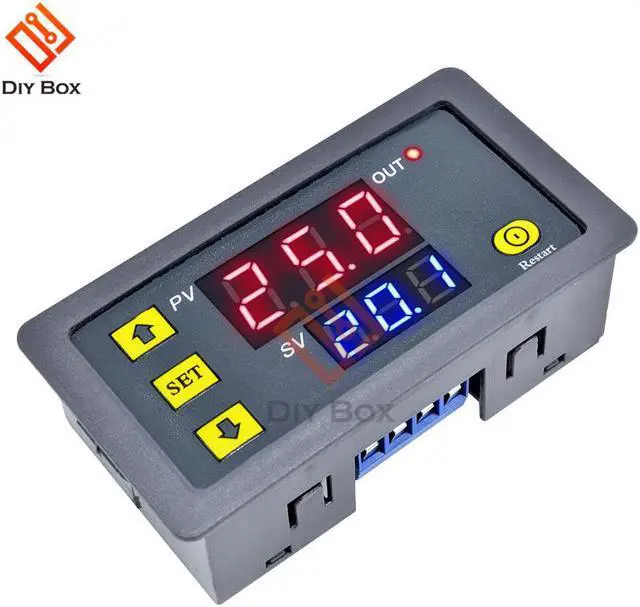

Panel introduction:
Wiring diagram:
Circuit connection:
The reference circuit is connected with the power supply and load. At this time, the digital tube (upper) shows the actual measured temperature, the digital tube (lower) shows the preset temperature. Missing or damaged temperature sensor The digital display shows "- - -" and the purchaser must check if the temperature sensor is installed before use.
The thermostat output 10A relay, to meet a variety of high-power load, make sure the line is correct.
The thermostat output 10A relay, to meet a variety of high-power load, make sure the line is correct.
LED, LED status Description:
Indicator: Off means the relay is off, it means the relay is on
Digital tube: display "- - -", 1, check the temperature sensor is missing or damaged 2, heating mode high temperature protection 3, cooling mode low temperature protection. In protection mode the relay is automatically disconnected.
The use of buttons: Thermostat panel has three buttons, buttons + button - set the button SET
Button +: to achieve rapid accumulation of values
Button -: to achieve the rapid decline in value
Restart: Restart the button
Set the key SET: to achieve two-tier interface settings temperature setting interface parameter settings interface
SET short press digital tube (down) to quickly set the temperature. Preset -20 °, 0 °, 20 °, 40 °, 60 °, 80 °, 100 ° and other data sets to facilitate the user to quickly call. For example: Users need to set 68.8 °, first short press SET adjusted to 60 °, and then through the key to add fine-tuning to the appropriate temperature. Set to wait 5s automatic memory to save data. Relative to the 1st generation thermostat 2 generation more convenient and flexible operation, dual LED display the measured temperature at the same time, set the temperature more easy to observe.
SET long press to enter the parameter setting interface, P0-P5 is the corresponding parameter setting item. Under the parameter setting menu, P0-P5 can be switched by pressing SET briefly. Want to modify a parameter just switch to the corresponding item, through the addition and subtraction button to set. After setting, press and hold SET to save the data, or wait 6s to save the data automatically.
Parameter
