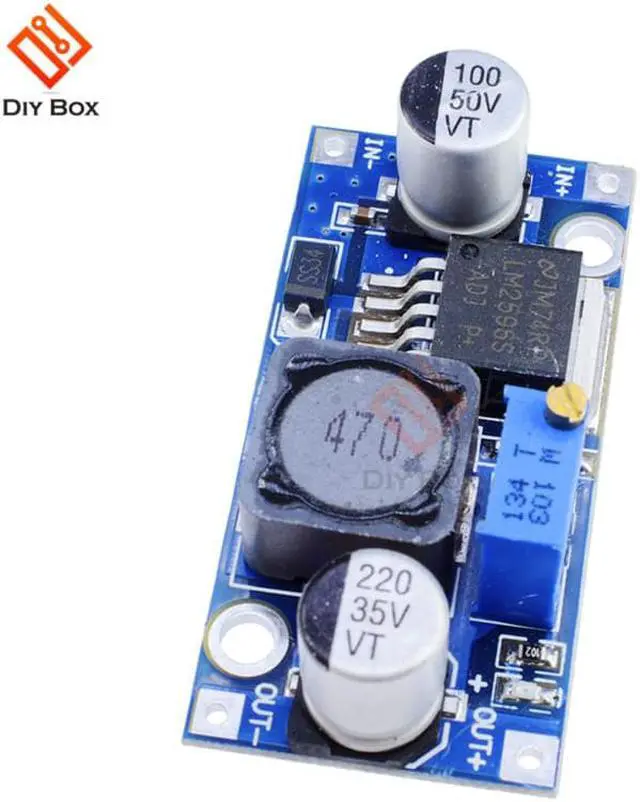

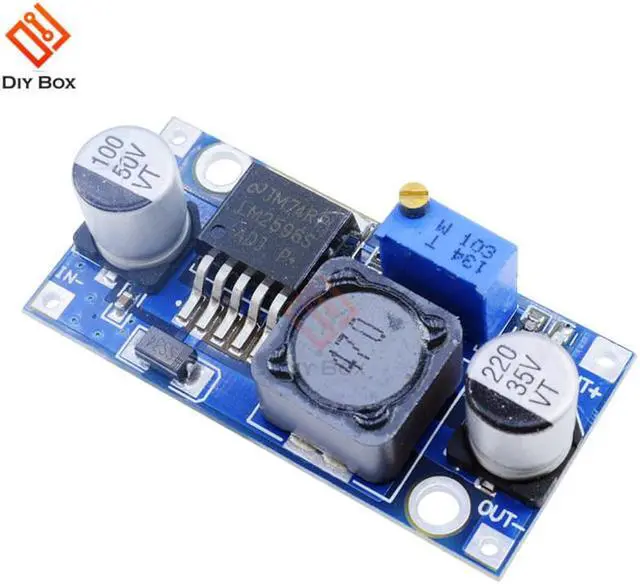

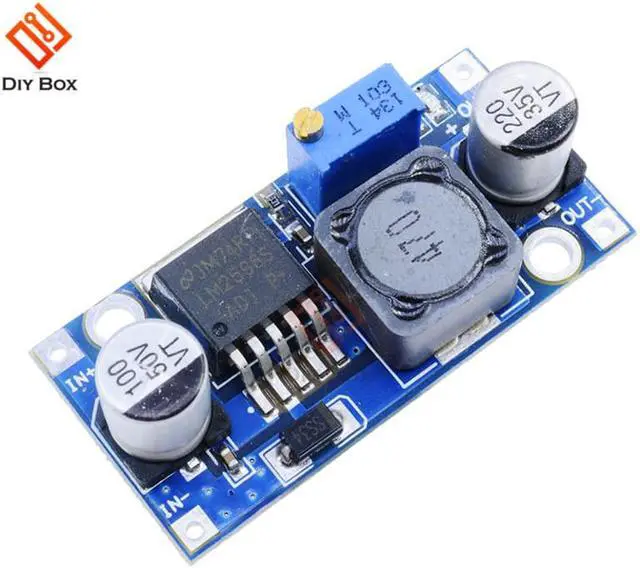

5pcs DC-DC Step Down Buck Converter Module LM2596 3.2V-40V to 1.25V-35V Adjustable Power Voltage Regulator Step-down Transformer
- 5pcs DC-DC Step Down Buck Converter Module LM2596 3.2V-40V to 1.25V-35V Adjustable Power Voltage Regulator Step-down Transformer
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Usage:Switching
Output voltage:1.25V-35V
Output Type:DC
feature 1:DC-DC Voltage Regulator
feature 2:Power Transformer
feature 3:Step Down Power Supply Module
feature 4:Votlage Converter
DC-DC Step Down Buck Converter Module LM2596 3.2V-40V to 1.25V-35V Adjustable Power Voltage Regulator Step-down Transformer
Description:
Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Specification:
Input voltage:4-35V
Output voltage:1.23-30V(Adjustable)
Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)
Dimension:48*23*14mm(L*W*H)
Package Included:
5 x LM2596 DC-DC adjustable power step-down module
Usage:Switching
Output voltage:1.25V-35V
Output Type:DC
feature 1:DC-DC Voltage Regulator
feature 2:Power Transformer
feature 3:Step Down Power Supply Module
feature 4:Votlage Converter
DC-DC Step Down Buck Converter Module LM2596 3.2V-40V to 1.25V-35V Adjustable Power Voltage Regulator Step-down Transformer
Description:
Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Specification:
Input voltage:4-35V
Output voltage:1.23-30V(Adjustable)
Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)
Dimension:48*23*14mm(L*W*H)
Package Included:
5 x LM2596 DC-DC adjustable power step-down module
