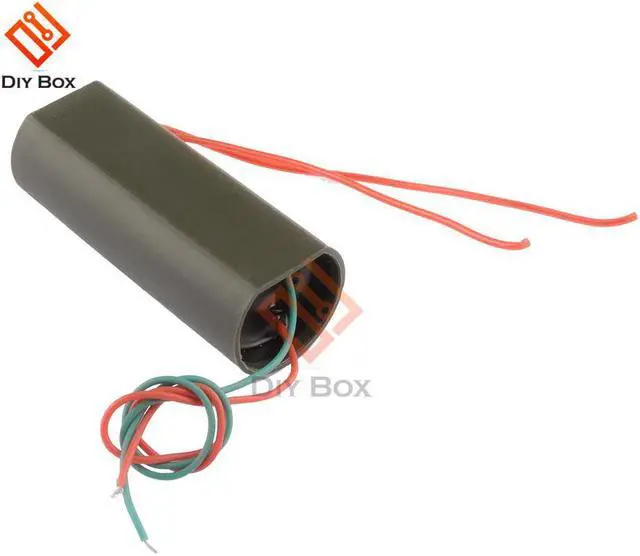

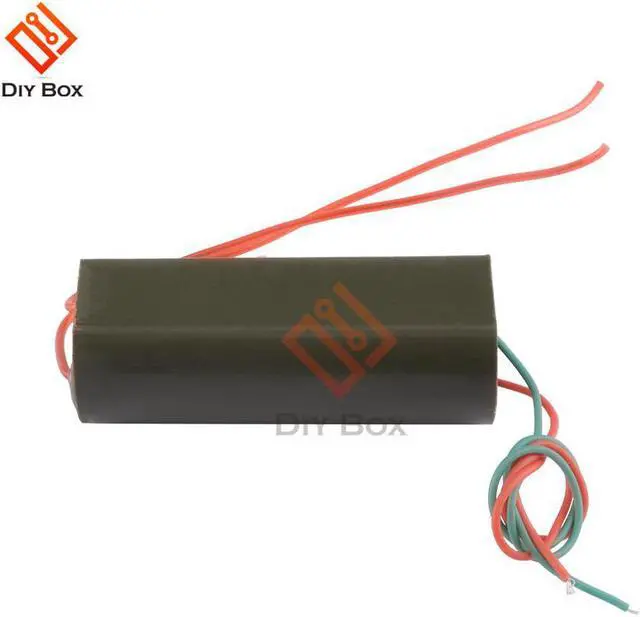

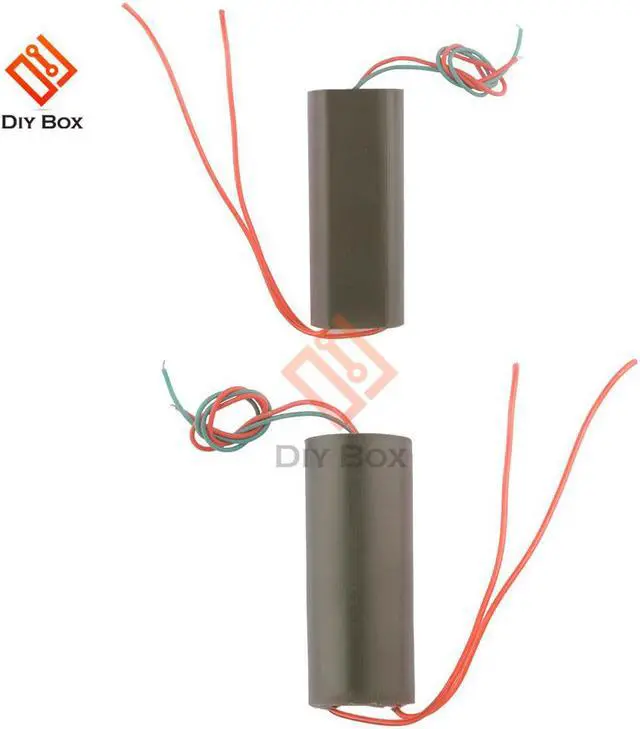

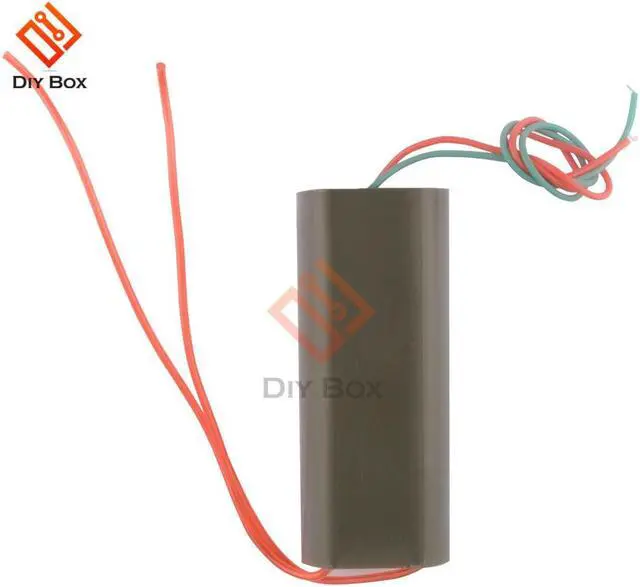

DC6-12V 800KV Arc High Voltage Generator High Voltage Module for Student Science Experiments Electronic Equipment

Origin:CN(Origin)
Model Number:800KV arc high voltage generator high voltage module

Product selling point:
1: Wide range of applications
2: Small size
3: High efficiency
4: Output high voltage pulse
5: cost-effective
This module is a high-voltage module/high-voltage generator made by a high-voltage package/transformer through a circuit composed of components. It can be used as a high-voltage source for students' popular science experiments/electronic instruments/negative ion generator/science mini-production. The module is made using the principle of Tesla coil. It can output high voltage pulse, small size, high efficiency and violent discharge intensity.
Parameter:
Product Name: High Voltage Generator
Volume: length 88mm diameter 26mm cut surface diameter 24mm
Voltage: Input DC6-12V,
Output DC800KV
Current: input 4A, output 0.5A
Line length: input about 10 cm,
output about 10 cm
Structure: shell integrated
Two-pole discharge distance: about 0.5-1.5 cm (more easily damaged)
Uses: commonly used in high-voltage production, electronic DIY, product development, high-voltage electronic anti-theft, etc.
How to use: The two poles of the high-voltage output end (single-color thick line) are fixed within the specified discharge distance, and the red line of the low-voltage input end (two-color thin line) is connected to the .
Input requirements: This product does not need auxiliary circuits, and can be used directly when connected to a . The input terminal is connected to a single 3.7V lithium (such as 18650 ) or a nickel-cadmium/nickel-metal hydride pack, 4V or 6V , etc. (6V can reach the maximum best effect)
Notes on using the module:
1. The high-voltage module should be avoided to be powered on when the high-voltage is no-load. Before power-on, the appropriate distance from the high-voltage line must be adjusted. The arcing distance of the high-voltage line is proportional to the voltage and capacity of the used.
2. When testing the arc distance, the experiment should be from short to long. It is strictly forbidden to exceed the longest arcing distance when power is on. Because the high-voltage energy cannot be released, it is very easy to damage the module.
3. The power of the module is large, and it is not suitable for heat dissipation inside, so it cannot work for a long time.
4. The way to judge whether the capacity can drive the maximum output power is to measure the voltage when the arc is drawn. If it is around 6V, it can output the maximum power.
5. Two small-capacity lithium batteries are connected in series to 7.2V, and the measured voltage has dropped to about 4V in the arcing state. The smaller the capacity, the lower the voltage. Therefore, it is recommended to use a lithium above 2000MA, and it is best to use a above 4000MA if possible.
Package Included:
1* High voltage generator high voltage module
