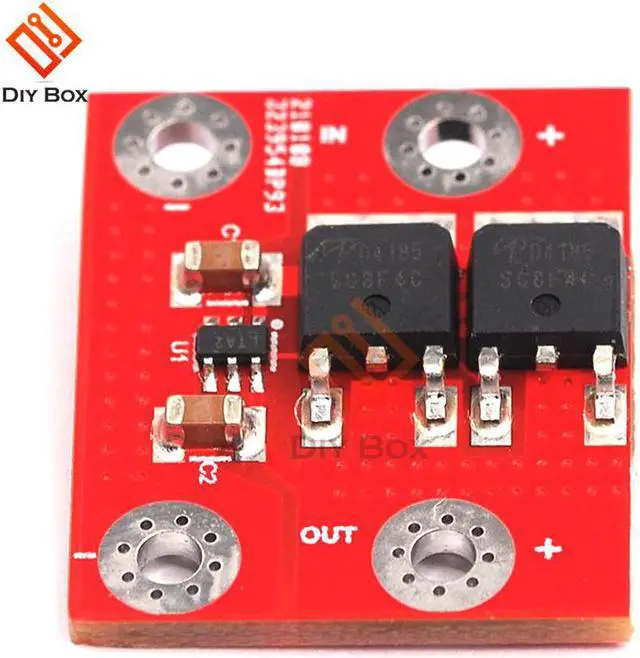

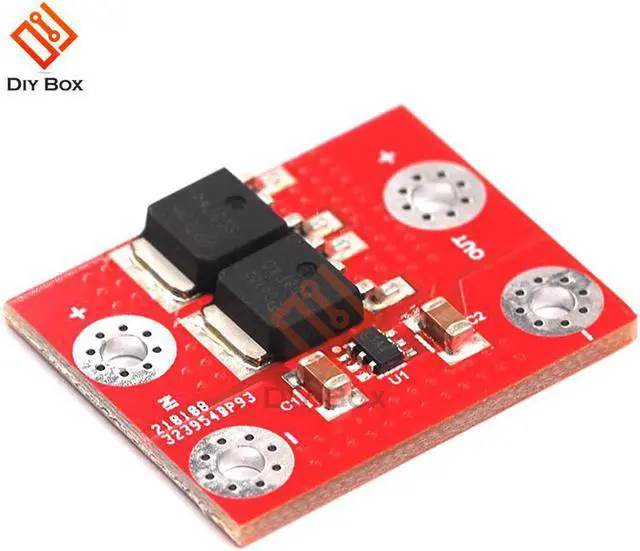

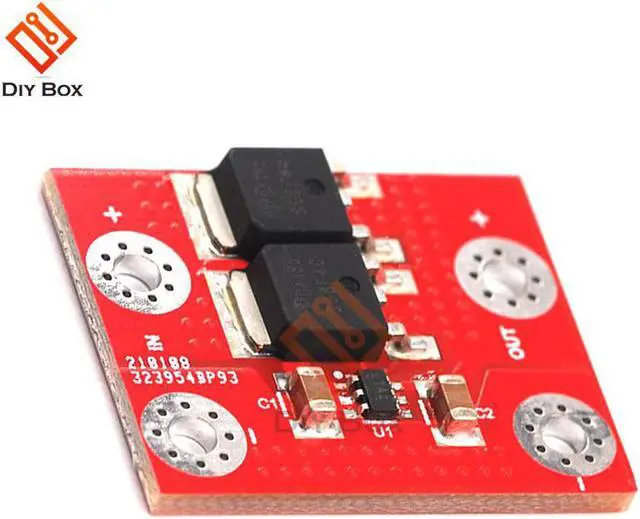

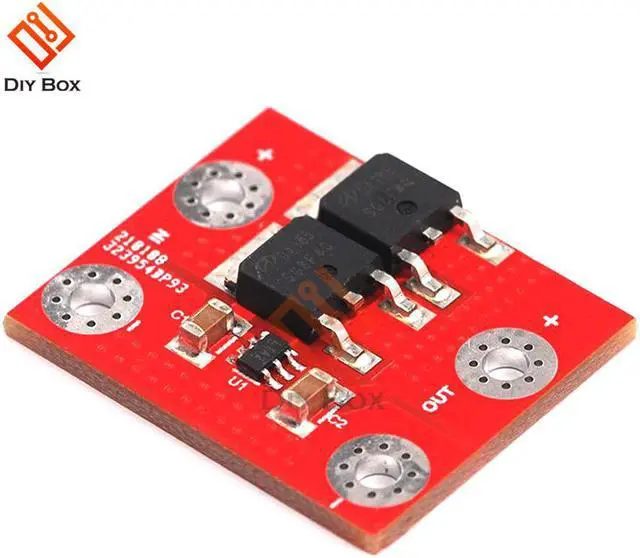

15A Ideal Diode Low Dropout Diode Solar Anti-Backflow and Charging Backflow Protection

Origin:CN(Origin)
Model Number:15A Ideal Diode Low Dropout Diode Solar Anti-Backflow

Product selling point:
1. Using high-quality materials, the quality is guaranteed
2. Replace the power supply Schottky diode
3. Low quiescent current: 11A
4.3V to 28V AC/DC Adapter Voltage Range
5.2.5V to 28V voltage range
6. Wide range of applications
Parameter:
Working voltage: 3-28V
Working current: 15A
Use:
Replacing ordinary high-current diodes, ideal for parallel connection of solar panels, suitable for charging backflow protection
Ideal Diode Controller with Reverse Input Protection
Replacing diodes---Solar anti-backflow and charging backflow protection
Low forward voltage diode function. This can provide a lower loss path compared to Schottky diodes and in high power applications this can provide a more efficient solution and save valuable circuitry by reducing the need for heat dissipation board space. When turned on, the voltage drop across the MOSFET is typically 20mV.
The wide power supply operating range supports the use of 1 to 6 series Li-Ion batteries to provide operating power. Low quiescent current (11µA typical) independent of load current. The gate driver includes an internal voltage clamp for MOSFET protection.
The input and output are equivalent to diodes. When it is detected that the output voltage is greater than the input, the output is turned off immediately, and the detection value is at the millivolt level.
The response speed is very fast.
The package includes:
Module*1
