2.15-5.5V SHT30 Temperature and Humidity Sensor HY2.0-4P Interface IIC Digital Signal Output Cable length 28cm

Smart home platform:NONE
Certification:NONE
Origin:CN(Origin)
Model Number:Temperature and humidity sensor

Features:
1: Wide range of applications
2: Simple to use
3: Small appearance
4: PE cylinder protective sleeve
5: Working voltage: 2.15-5.5V

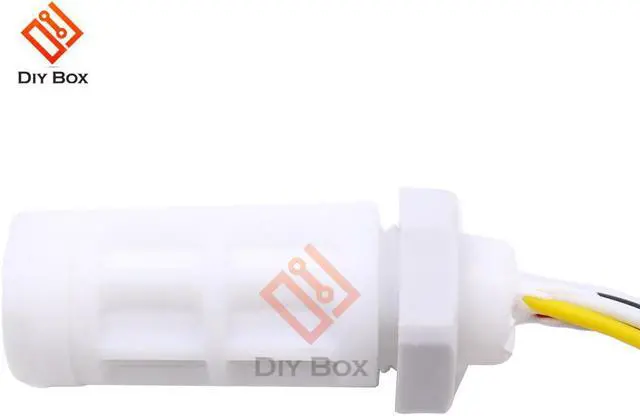

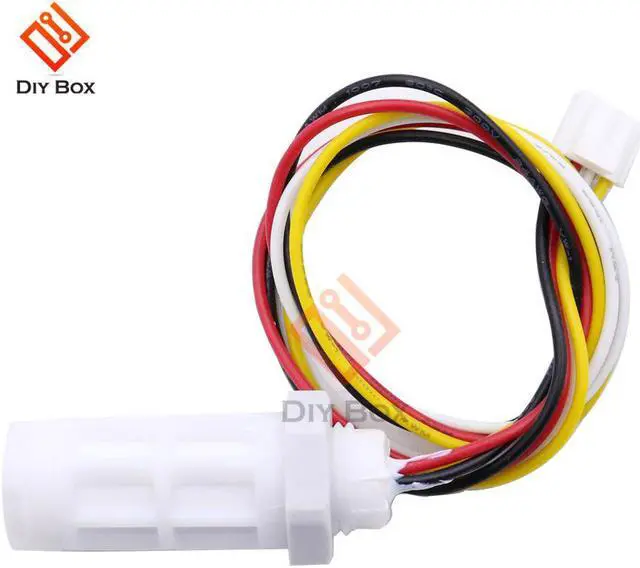

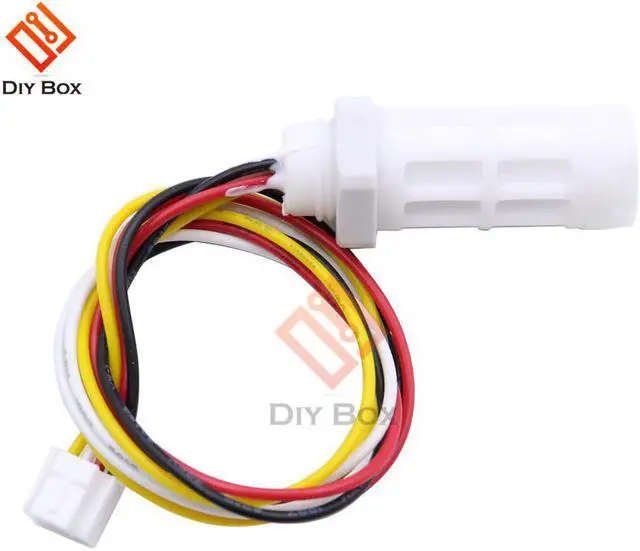

SHT30, the whole is made of glue and waterproof treatment, to prevent condensation and cause short circuit damage to the sensor. Onboard 10K pull-up resistor and 100nF filter capacitor. The sensor PCB board is encapsulated in the protective cover of the PE cylinder, and it is led out through a 30cm 4PIN 24 electronic wire, and the interface is HY2.0-4P (2.0 with lock)
Product model: IOT SHT30
Working voltage: 2.15-5.5V
Output signal: IIC digital signal
Humidity measurement range: 0...100%RH
Temperature measurement range: -40...125
Accuracy: ±2%RH ±0.2
IIC address: 0X44
Product shell material: PE sintered
Interface: HY2.0-4P (2.0 with lock)
Line length: about 28cm

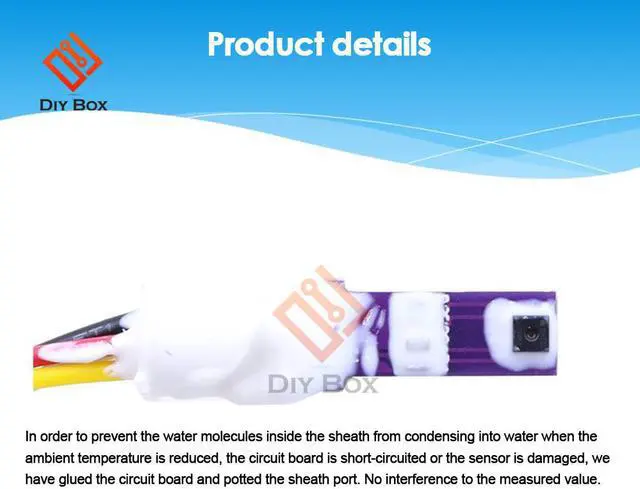

In order to prevent the water molecules inside the sheath from condensing into water when the ambient temperature is lowered, which causes the circuit board to be short-circuited or the sensor is damaged, we have applied glue to the circuit board and potted the mouth of the sheath. No interference to the measured value.
Package Included:
1*Temperature and humidity sensor
