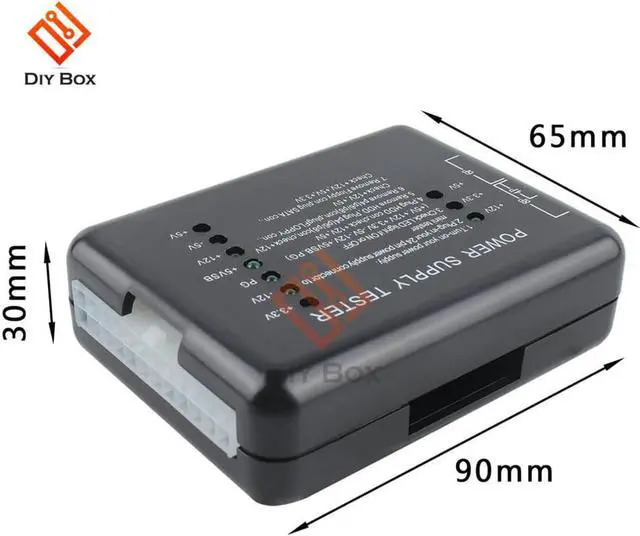

Computer Power Supply Tester ATX Power Supply Diagnostic Instrument Computer Case Power Supply Tester

Origin:CN(Origin)
Model Number:Computer Power Tester

Product selling point:
1. Using high-quality materials, the quality is guaranteed
2. Easy to use, good stability
3. Small and exquisite size
4. The power tester is a stable voltage PC power tester to protect your computer from damage
5. Green indicator = power is OK
parameter:
Input port: 20/24pin (ATX-connector)
Voltage detection: +12V, -12V, +5V, -5V, +3.3V, 5V Stand by (SB) 12V, power Good (PG)
Ports: Floppy, HDD, CDROM, SATA, 4 pin(P4), 8 pin(Dual-CPU), 6 pin(PCI-Express)
Operation method:
1. Supply power to the power supply to be tested.
2. Insert the 24P (20P) plug of the power supply to be tested into the corresponding 24P (20P) socket of the power supply tester.

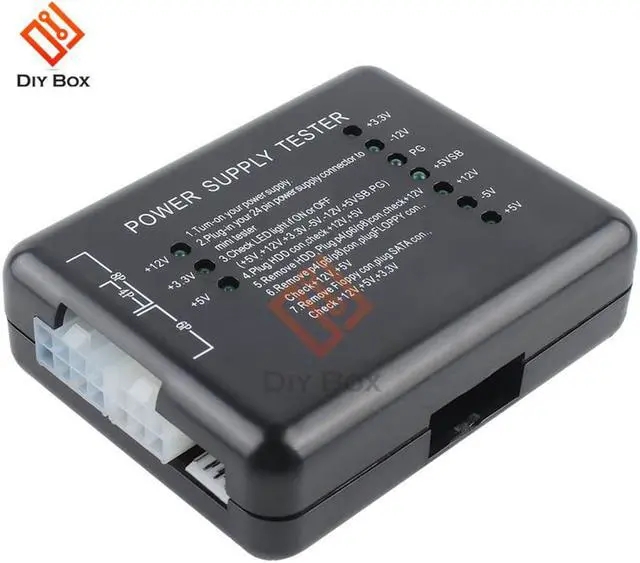

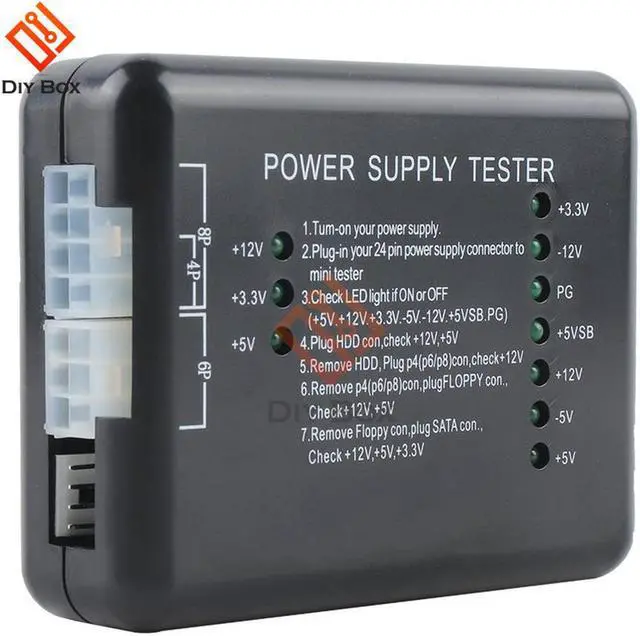

3. Check if the seven lights on the right (+3.3,-12V,PG,+5VSB,+12V,-5V,+5V) are on, it is better if they are all on.
4. Insert the HDD plug of the power supply to be tested into the HDD socket of the power supply tester, and check whether the two lights on the left (+12, +5V) are on.
5. Pull out the HDD plug from the power tester, and then insert the P4 (P6/P8) plug into the corresponding P4 (P6/P8) socket, and check whether the left light (+12V) is on.
6. Pull out the P4 (P6/P8) plug from the power tester, and then insert the FLOPPY (floppy drive) plug into the corresponding FLOPPY socket, and check whether the two lights on the left (+12V, +5V) are on, and all lights are good. .
7. Unplug the FLOPPY plug from the power tester, then insert the SATA plug into the corresponding SATA socket, and check whether the three lights on the left (+12V, +3.3V, +5V) are on, and all lights are good.
The package includes:
Power tester*1
