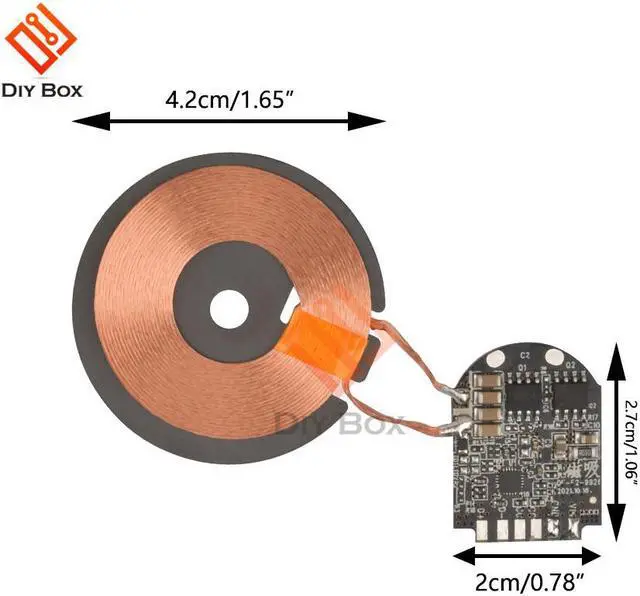

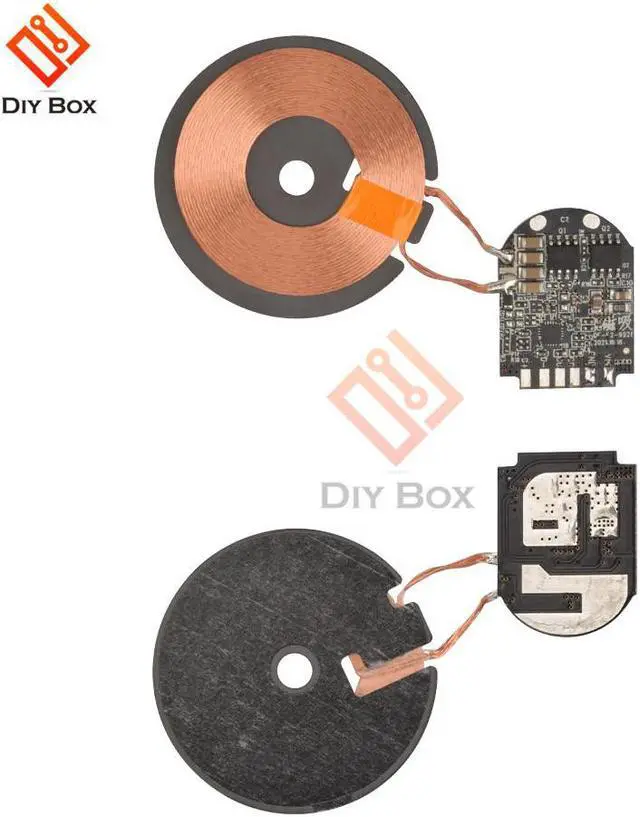

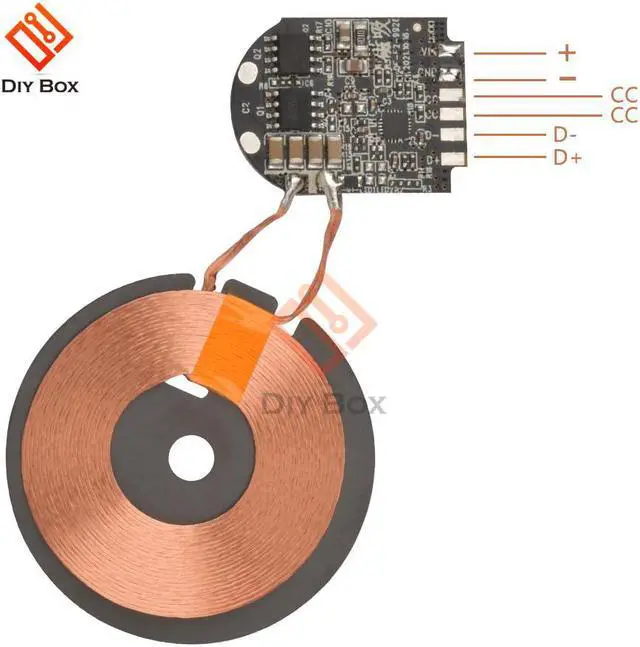

15W High Power Wireless Charger Module Transmitter PCBA Circuit Board with Qi Coil Support PD Fast Charging

Accessory Type:Charger Accessories
Origin:CN(Origin)
Model Number:15W wireless charger module transmitter module
Certification:CE

Product selling point:
Suitable for electronic product modification wireless charging
Compatible with QI wireless charging standard
Output power: 15W (max)
Transmission distance: spacer 0-5mm, space 0-10mm
Product certification: CE/FCC/ROHS
Wireless charging = transmitter + receiver
1. The mobile phone "has" the wireless charging function: If your mobile phone has the wireless charging function, or has already purchased the "receiver", then you only need to purchase the "transmitter" to charge it.
2. Mobile phone "does not have" wireless charging function: If your mobile phone does not have "receiving end (coil patch)"", then you need to purchase "transmitting end + receiving end" before it can be charged.
Input power: 5V2A/9V/12V (Apple 12/13 with pop-up window)
Output power: 5V2A 5W (Max)/9V/12V 15W/10W/7.5W/5W automatic identification
Transmission distance: spacer 0-5mm, space 0-10mm
Note: The module is not equipped with magnets. If you need magnetic suction, you need to prepare your own magnets
Charging efficiency: greater than 73%
Charging protocol: QI standard
The package includes:
Wireless charging transmitter module X1
