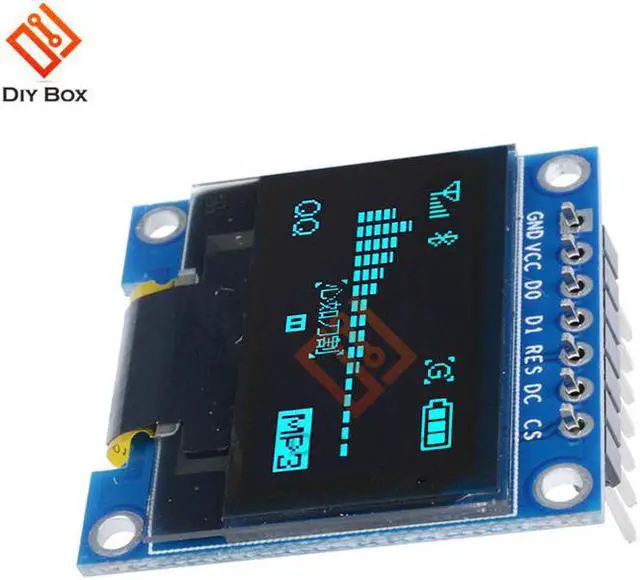

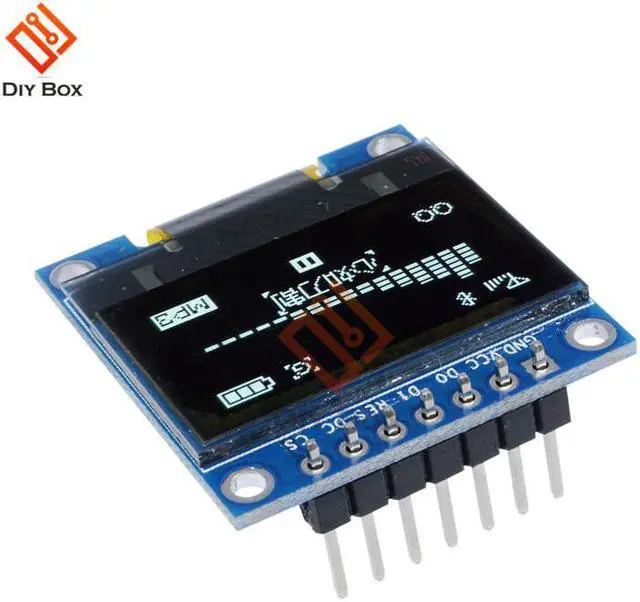

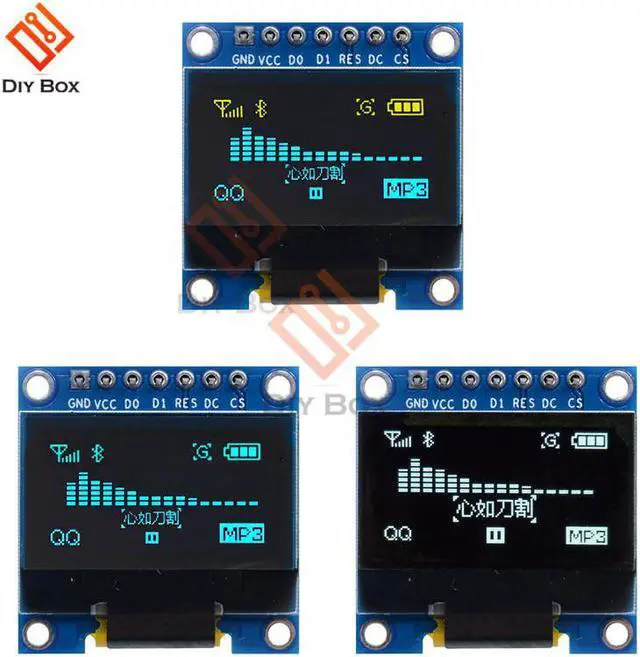

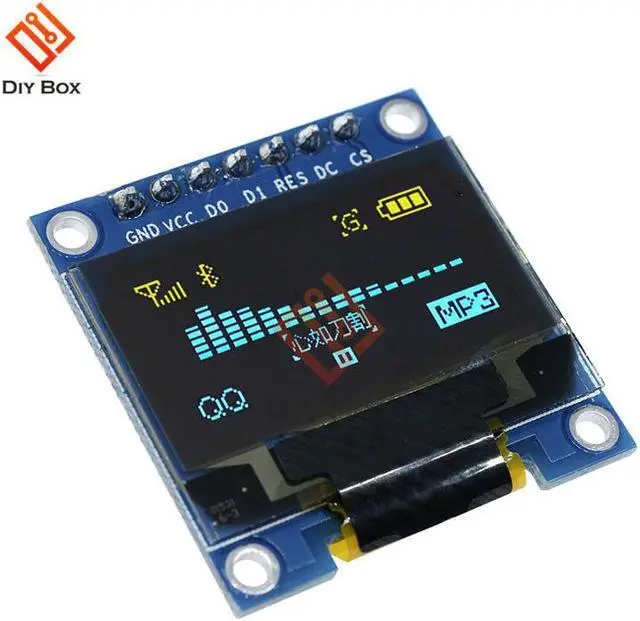

0.96 inch I2C IIC SPI 128x64 OLED Display STM32 CSR SSD1306 12864 LCD Screen Board GND VCC SCL SDA 7Pin DC 3-5V for Arduino

Origin:CN(Origin)
Display Size:0.96 inch
Compatible Audio & Video Equipment Style:Display Equipment
Certification:NONE
Model Number:0.96" OLED Display Module
model:0.96 inch I2C IIC SPI 128x64 OLED Display
Display color:White

0.96 Inch 6Pin IIC I2C SPI Interface OLED White LCD Display Module For Arduino Raspberry Pi SMT32 128X64 Interface SSD136 Board
What is OLED?
OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
The use of OLED technology offers the following advantages for flat-panel displays?
1. A simplified manufacturing process compared to TFT-LCD (See comparison of Picture 1 and Picture 2 below)
2. Self-emitting light, in contrast to the required backlight for TFT-LCD
3. High luminosity
4. Lightweight and thin (less than 2 mm)
5. Capable of wide viewing angles?~180??
6. Low operating voltage and power consumption
7. Quick response (~ ? second level)
8. Wide range of operating temperatures (-40c to 85c)
How Does OLED Emit Light?
OLED"s basic structure consists of organic materials positioned between the cathode and the anode, which is composed of electric conductive transparent Indium Tin Oxide (ITO). The organic materials compose a multi-layered thin film, which includes the Hole Transporting Layer (HTL), Emission Layer (EML) and the Electron Transporting Layer (ETL). By applying the appropriate electric voltage, holes and electrons are injected into the EML from the anode and the cathode, respectively. The holes and electrons combine inside the EML to form excitons, after which electroluminescence occurs. The transfer material, emission layer material and choice of electrode are the key factors that determine the quality of OLED components.
Specifications:
Needn't backlight, the display unit can self-luminous
High resolution: 128 * 64
Viewing angle:> 160 °
Supports many control chip: Fully compatible for Arduino, for 51 Series, for MSP430 Series, for STM32 / 2, for CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -30 c ~ 70 c
Module Size: 27.3MM *27.8MM
I2C/IIC Interface, need 2 IO only.
Driver IC: SSD1306
Display color:White
Package Included:
1 x 0.96" I2C IIC SPI Serial 128X64 OLED LCD LED Display Module for Arduino
