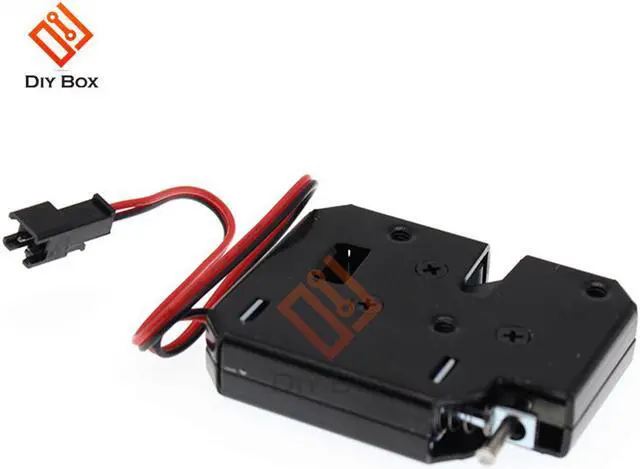

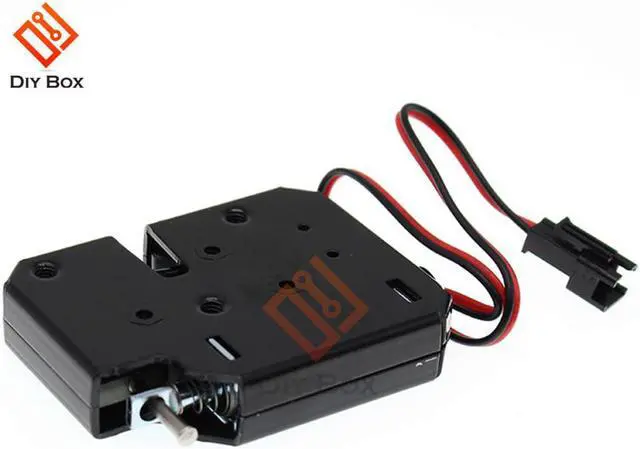

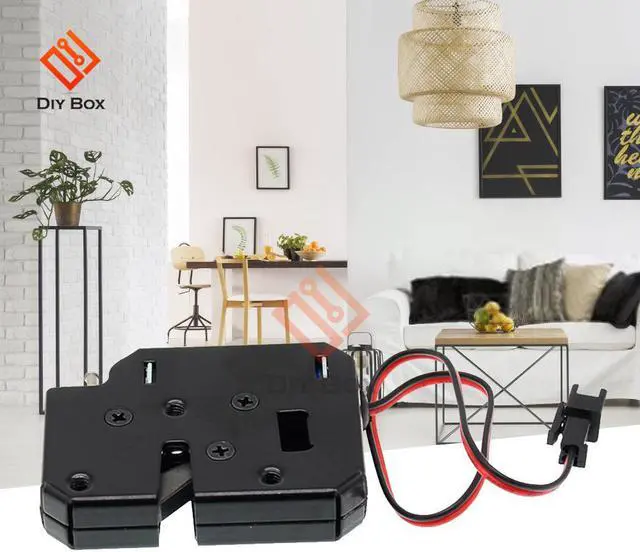

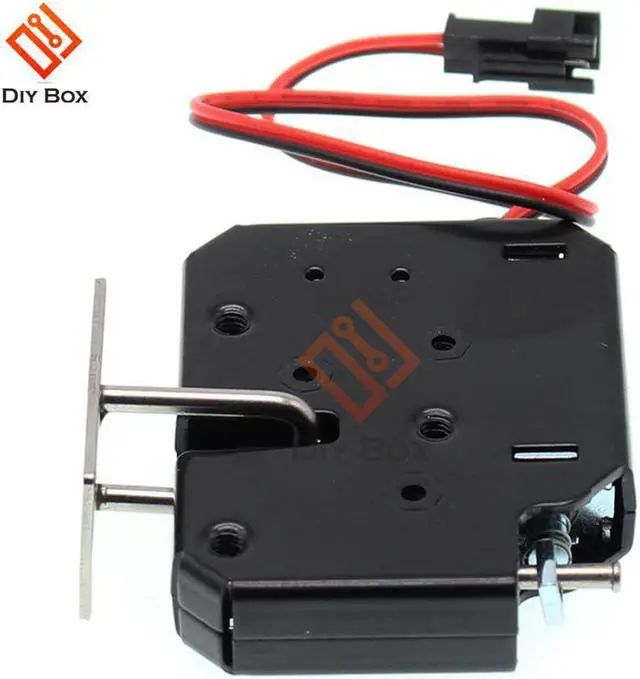

150KG/330lb Electric Magnetic Lock Door Access Control DC 12V Cabinet Drawer Electromagnetic Lock with Emergency Unlock

Origin:CN(Origin)
Model Number:Electromagnetic lock

Features:
1. 100% high-quality products.
2. The electric lock is applicable to express lock, refrigerator, mailbox or spaper box, self-service lock, bookcase, wardrobe, etc. The shell is made of steel plate and the inner tank is made of carbon steel. Strong and safe to use.
3. The elasticity is superior to other similar products and can be applied to the rebound of 0.5-4kg heavy door.
4. It supports the emergency unlocking mode of hidden lock body and can be used as the manual emergency unlocking function.
5.Test 500000 times continuously at 10 second intervals to ensure that the coil will never burn out.
6. The electric lock has smooth switch and sensitive response. It is powered on instantly, so the power consumption is very low. And the common electric control lock has high voltage, and this lock has the advantages of simple structure, low cost and convenient installation.
Parameters:
Input voltage: 12V
Operating current: 2A
Maximum power on time allowed for a single time: 0.2 seconds
Product size: 63 * 49 * 13mm
Instructions for use and installation:
1. The red and black wire SM male terminals are the power lines of the electromagnetic lock, regardless of the positive and negative poles;
2. When the switch is powered on, the electromagnet in the lock body drives the spring to open the latch and the door. When closing the door, push the door directly, and the latch will be locked by the lock body.
Package Include:
Electromagnetic lock * 1
