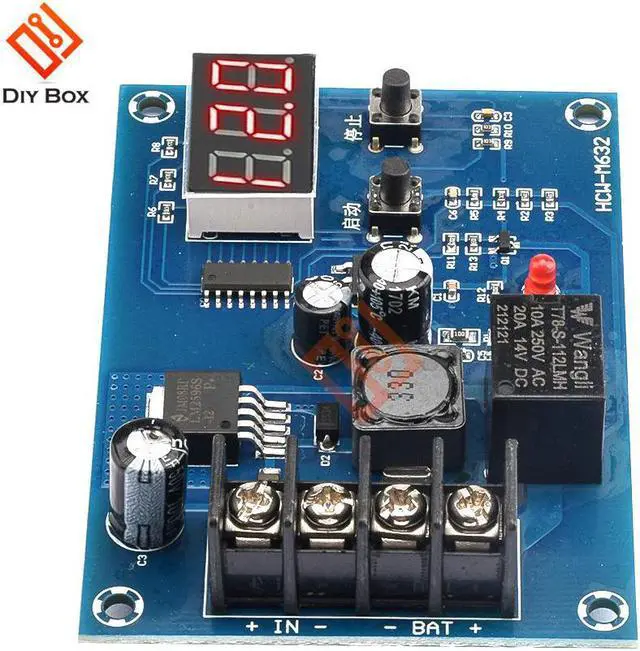

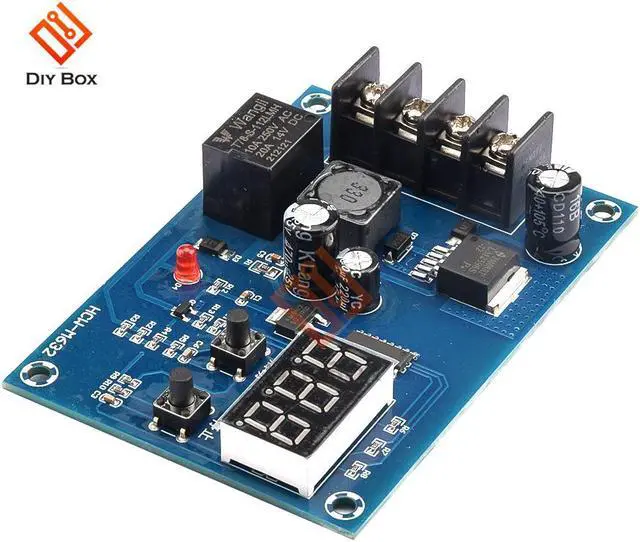

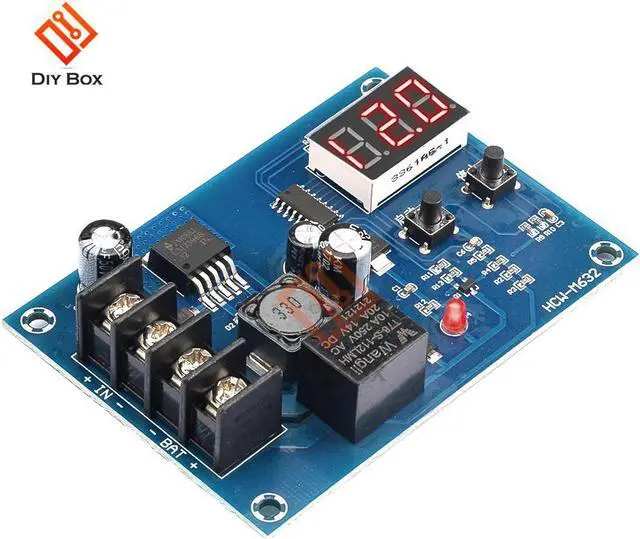

HW632 XH-M603 Charging Control Module Digital LED Display Storage 12-24V Lithium Charger Control Switch Protection Board
- HW632 XH-M603 Charging Control Module Digital LED Display Storage 12-24V Lithium Charger Control Switch Protection Board
+
+
Overview
Specs
Reviews
Certification:NONE
Accessory Type:Charger Accessories
Origin:CN(Origin)
Model Number:XH-M603
Product Introduction:
1.Model:XH-M603
2.Input Voltage:DC 10-30V
3.Display Precision:0.1V
4.Control Precision:0.1V
5.Output Type:direct output
6.Voltage Tolerance:+/-0.1V
7.Application Fields:12-24V storage
8.Size;82x58x18mm
Using Method:
1.Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value
2.Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value
3.Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings
Package Included:
1x DC 12V-24V Lithium Charge Control Protection Board
Accessory Type:Charger Accessories
Origin:CN(Origin)
Model Number:XH-M603
Product Introduction:
1.Model:XH-M603
2.Input Voltage:DC 10-30V
3.Display Precision:0.1V
4.Control Precision:0.1V
5.Output Type:direct output
6.Voltage Tolerance:+/-0.1V
7.Application Fields:12-24V storage
8.Size;82x58x18mm
Using Method:
1.Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value
2.Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value
3.Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings
Package Included:
1x DC 12V-24V Lithium Charge Control Protection Board
