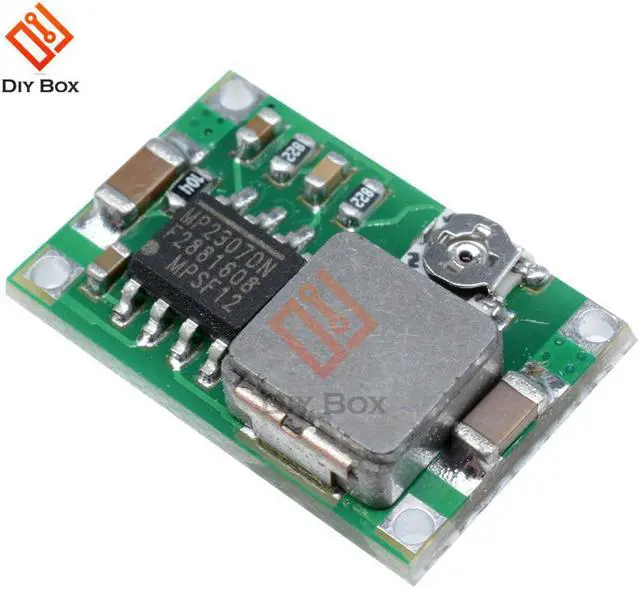

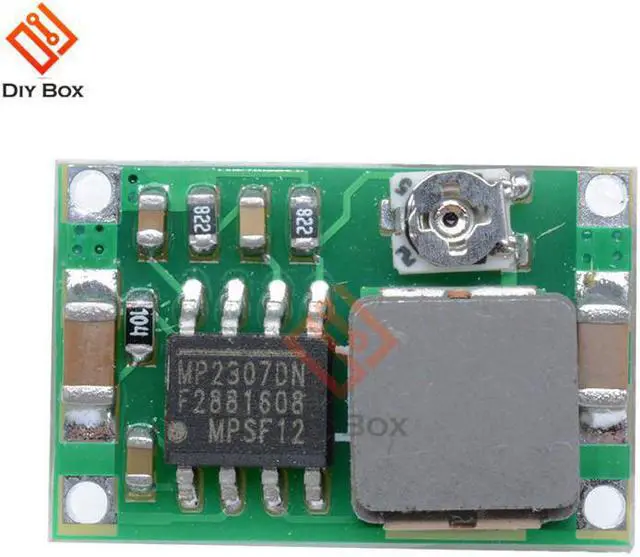

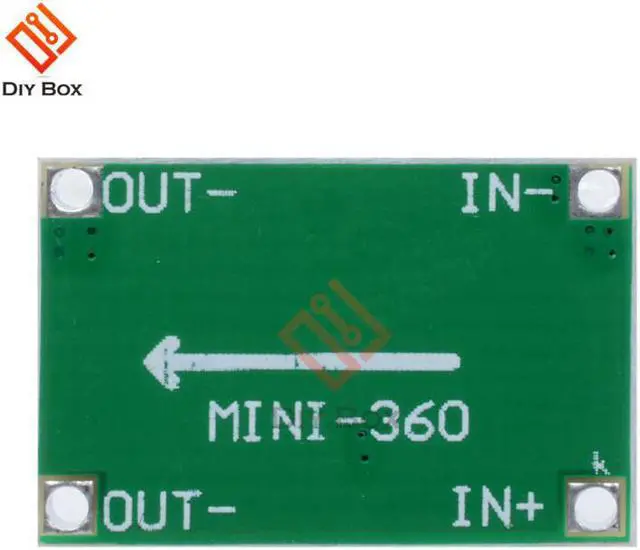

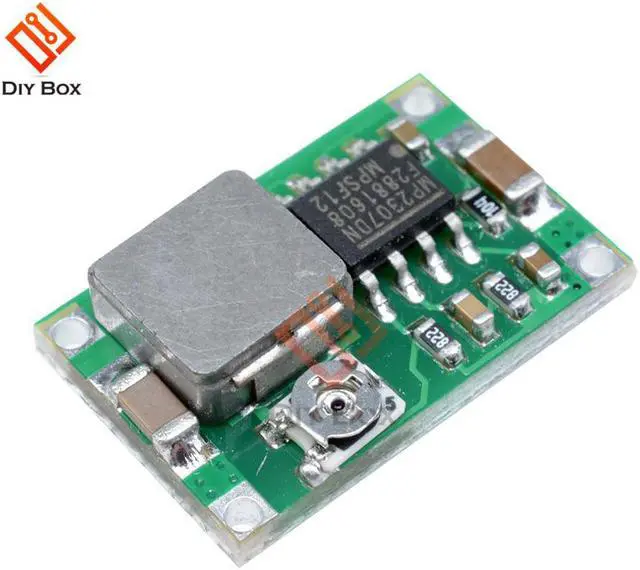

5PCS Mini360 Mini 360 DC-DC Buck Non-isolated Converter Step Down Module For Flight Control Car 4.75V-23V To 1V-17V SG125-SZ+
- 5PCS Mini360 Mini 360 DC-DC Buck Non-isolated Converter Step Down Module For Flight Control Car 4.75V-23V To 1V-17V SG125-SZ+
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Usage:Switching
Output voltage:4.75V-23V To 1V-17V
Output Type:DC
type:Mini360 Converter Step Down Module
feature:Mini360 DC-DC Buck Non-isolated Converter
5PCS Mini360 Mini 360 DC-DC Buck Non-isolated Converter Step Down Module For Flight Control Car 4.75V-23V To 1V-17V SG125-SZ+
100% and .
Module Properties: Non-isolated step-down module (BUCK)
Rectification: Synchronous rectification
Input voltage: DC 4.75V-23V
Output voltage: DC 1.0V-17V (Adjustable, Output
Output current: Rated current 1.8A (3A MAX, can not be prolonged)
Conversion efficiency:96%(highest)
Switching Frequency: 340KHz.
Output ripple:30mV(no-load)
Load regulation:±0.5%
Voltage regulation:±2.5%
Operating Temperature: Industrial (-40 ~ +85)
Short circuit protection: No(Please do not short-circuit)
Input Reverse protection: No(Can not be reversed)
22mm*17mm*4mm(L*W*H)/0.87'' * 0.67'' * 0.16'' approx
Supper mini board
NOTE:This can't be used to step up Voltage. Output voltage is always smaller than input!
