D1 Mini ESP8266 ESP-12 ESP-12F CH340G CH340 V2 USB For WeMos WIFI Development Board D1 Mini NodeMCU Lua IOT Board 3.3V With Pins

Demo Board Type:FPGA
Certification:NONE
Origin:CN(Origin)
Model Number:ESP8266 ESP-12F
Intergrated Feature:WiFi 802.11b/g/n

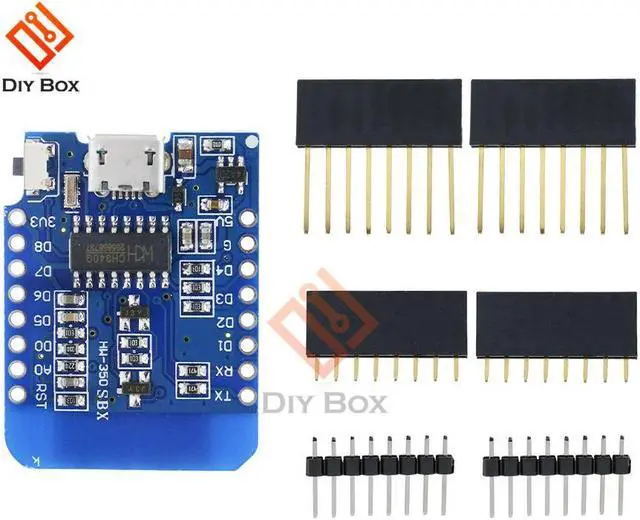

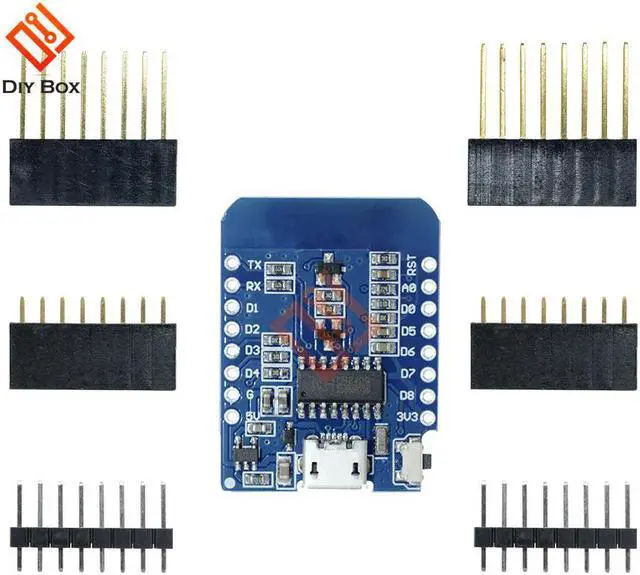

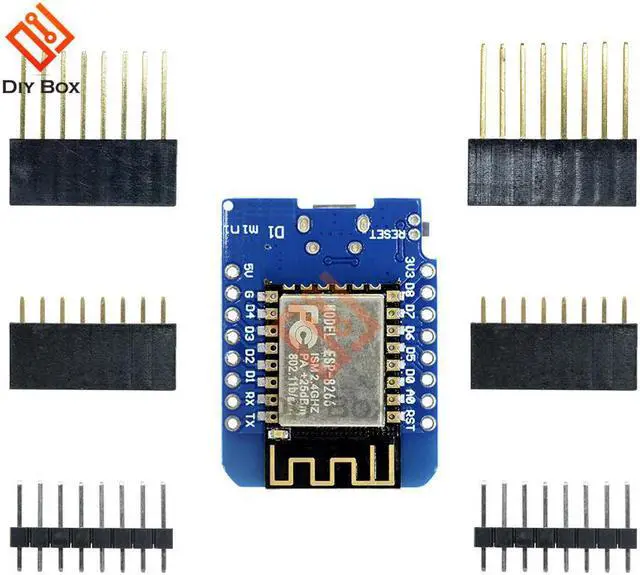

This is D1 mini, it is a mini WIFI board based on ESP-8266EX.
11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire
supported(exceptD0)
1 analog input(3.3V max input)
a Micro USB connection
How to get started in for arduino :
Setup driver
Before you use miniD1 boards, you need setup CH340g driver.
Python
On Windows you need install Python 2.7.10.
On Linux & OSX, you don't need install it, comes preinstalled with OS.
Installing Hardware package
There is two ways to install hardware package, Boards Manager or GIT
Installing with Boards Manager
Starting with 1.6.4, for arduino allows installation of third-party platform packages using
Boards Manager. We have packages available for Windows, OS, and Linux (32 and 64 bit).
. Install for arduino 1.6.7 from the for arduino website.
. Start for arduino and open Preferences window.
. into Additional Boards Manager URLs field. You can add multiple URLs, separating them with commas.
. Open ToolsBoard:xxxBoards Manager and install esp8266 by ESP8266
Community (and don't forget to select your ESP8266 board from Tools > Board menu after installation).
Installing with GIT (Recommend):
We recommend using GIT to install Hardware package,
you can always get the latest version of it.
Packge Included
1×For WeMos D1 mini

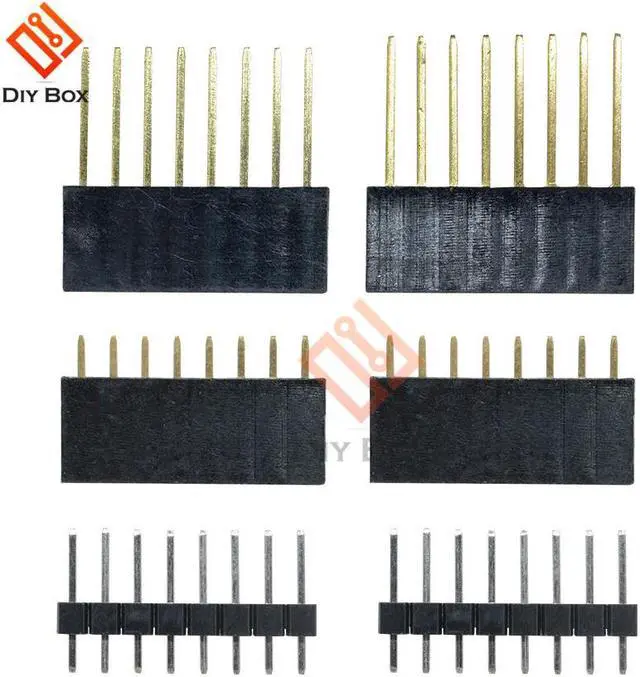

2×Long female pins
2×Short female pins
2×Normal pins
