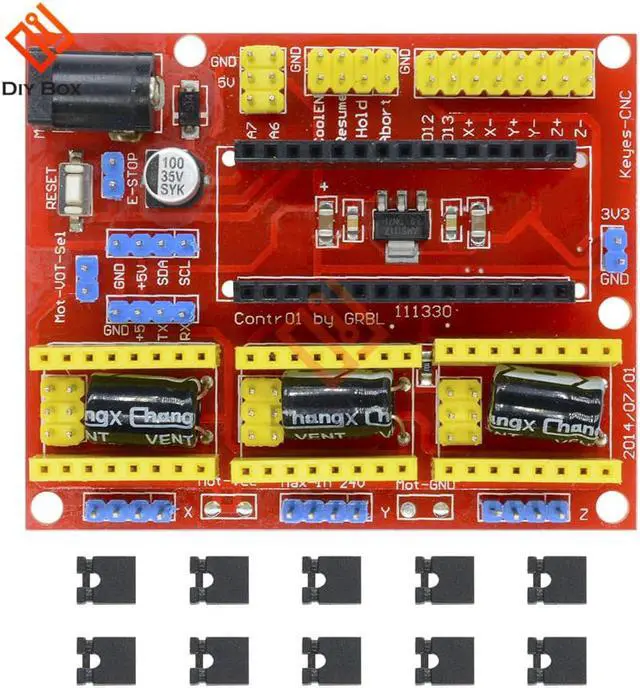

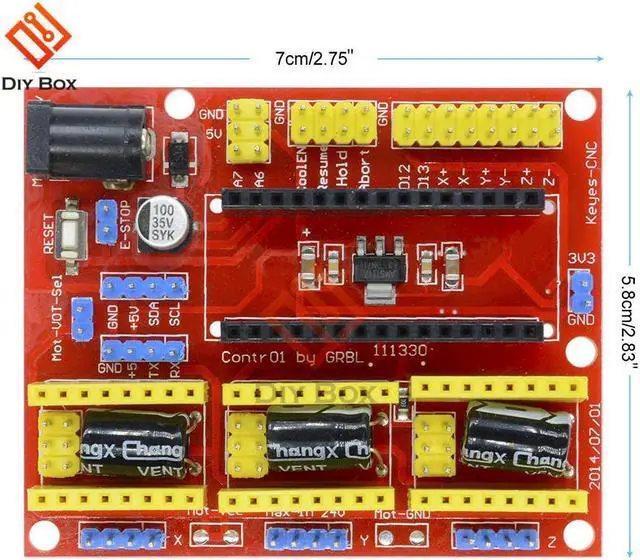

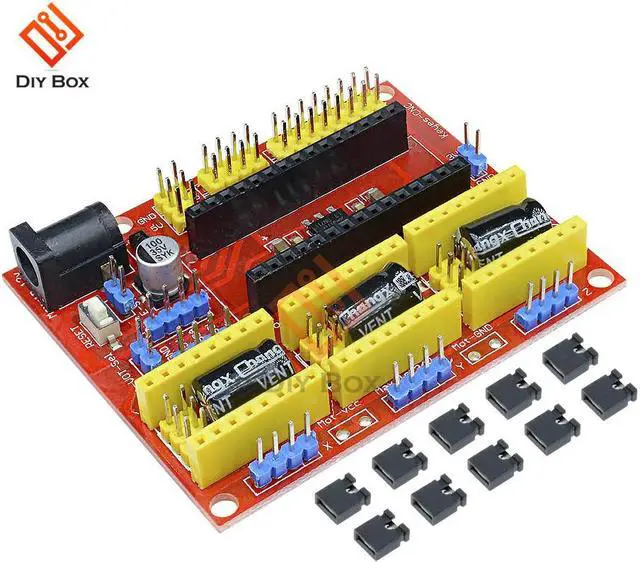

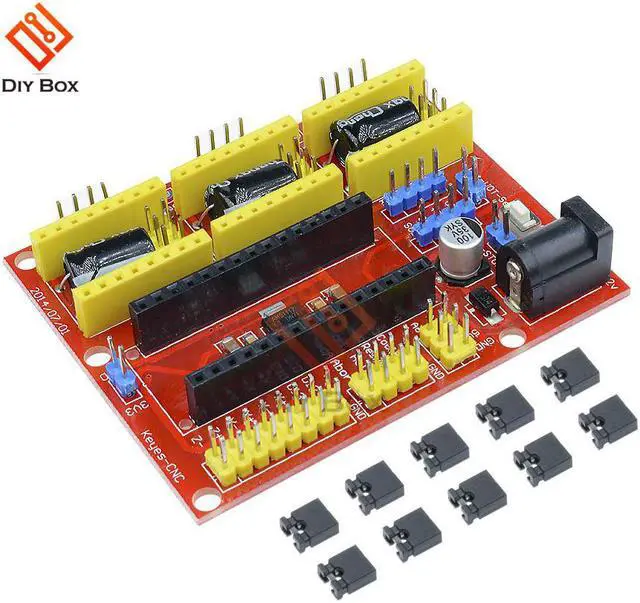

CNC Shield V4 Engraving Machine / 3D Printer / A4988 Driver Expansion Board for arduino Diy Kit

Item Type:Control Panel
Origin:CN(Origin)
Model Number:CNC A4988 expansion board V4.0

This 3D printer stepper motor driven CNC Shield V4 needs to work with nanoboards. It can be used as a drive expansion board for engraving machines and 3D printers. It has a total of 3-channel slots in the 3-channel A4988 stepper motor driver module (not included) for driving stepper motors. Each channel of the stepper motor only needs 2 IO ports, which means that 6 IO ports are enough to manage 3 stepper motors. This shield quickly makes work on project management of stepper motors.
Specification:
The 3-axis stepper motor driver is compatible with the micro-drive laser all-in-one machine, and the three-axis CNC engraving machine.
Figure 2A can be controlled within a two-phase four-wire stepper motor.
Published digital IO interface for easy connection to other modules such as check stops.
A published I2C interface that can be connected to an I2C LCD or other I2C modules.
Power DC5V interface, 7.5-12V voltage input.
Package includes:
1 CNC Shield V4 Engraving Machine Stepper Motor Driver
