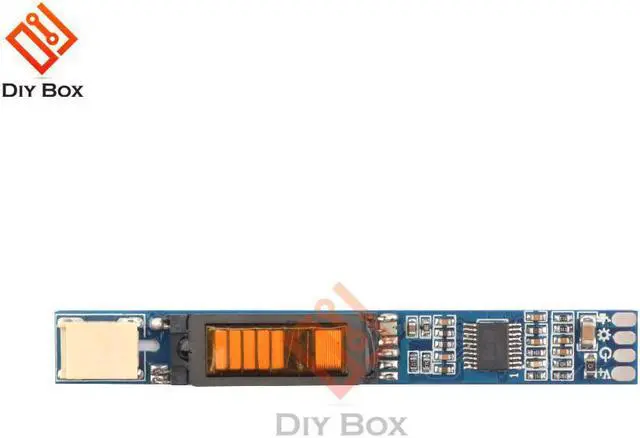

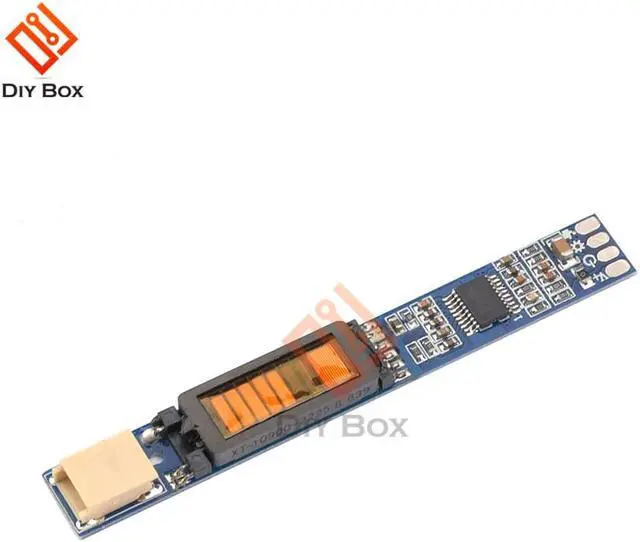

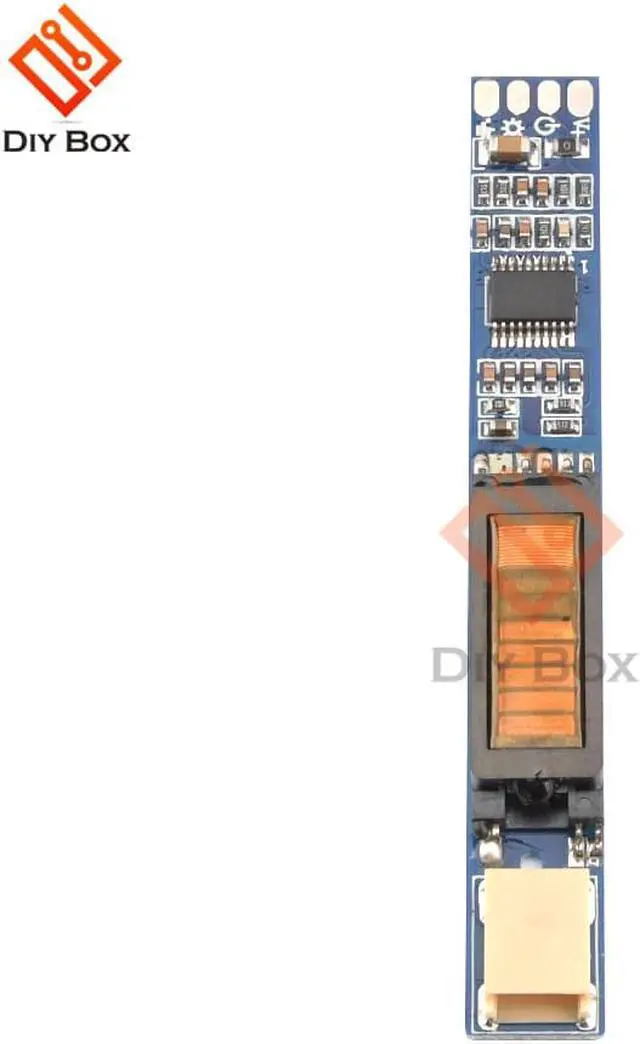

5-28V Ultra-wide Voltage High Voltage Strip LCD Liquid Crystal Single Lamp Small Mouth Notebook General High Voltage Board
- 5-28V Ultra-wide Voltage High Voltage Strip LCD Liquid Crystal Single Lamp Small Mouth Notebook General High Voltage Board
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:Notebook universal high voltage bar
Features:
1. 100% and high-quality products.
2. Made of high-quality materials, durable and practical.
3. Suitable for retrofitting when repairing notebooks.
4. Ultra-small size, ultra-wide voltage design.
5. Simple and convenient to use.
Parameter:
Size: 8.3cm*1cm*0.45cm
Interface definition: power supply switch brightness ground wire [with brightness adjustment function]

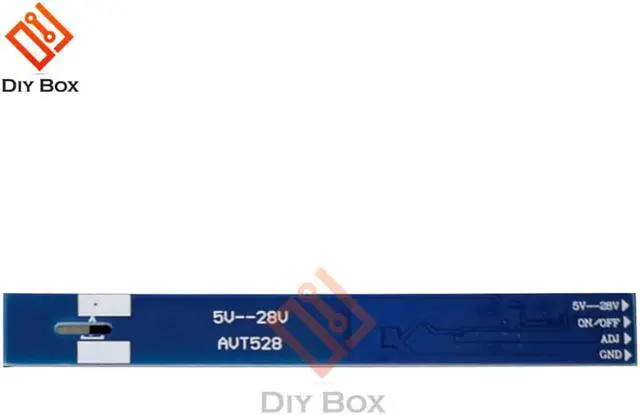

Interface definition: VIN (power supply) ON (switch signal) ADJ (brightness control) GND (ground wire)
Lamp interface: single lamp small mouth
Input voltage:5.0V----28.0V
Working environment
Temperature: -10-50 0 C
Humidity: 5-90%
Dimming voltage:0V----5V
Output waveform:Distortion: 10%,Asymmetry: 3%
Lamp current:3.0mA---6.5mA
Radiation level:CLASS B
Lamp frequency:45KHZ,60KHZ,80KHZ
Standby power consumption: 0.1W
Starting voltage:High level
Working ripple: 100mV
Dimming range:18%-100%
Working temperature rise: 18 0 C
life span:50000 hours
Package Included:
1* High voltage bar
Model Number:Notebook universal high voltage bar
Features:
1. 100% and high-quality products.
2. Made of high-quality materials, durable and practical.
3. Suitable for retrofitting when repairing notebooks.
4. Ultra-small size, ultra-wide voltage design.
5. Simple and convenient to use.
Parameter:
Size: 8.3cm*1cm*0.45cm
Interface definition: power supply switch brightness ground wire [with brightness adjustment function]
Interface definition: VIN (power supply) ON (switch signal) ADJ (brightness control) GND (ground wire)
Lamp interface: single lamp small mouth
Input voltage:5.0V----28.0V
Working environment
Temperature: -10-50 0 C
Humidity: 5-90%
Dimming voltage:0V----5V
Output waveform:Distortion: 10%,Asymmetry: 3%
Lamp current:3.0mA---6.5mA
Radiation level:CLASS B
Lamp frequency:45KHZ,60KHZ,80KHZ
Standby power consumption: 0.1W
Starting voltage:High level
Working ripple: 100mV
Dimming range:18%-100%
Working temperature rise: 18 0 C
life span:50000 hours
Package Included:
1* High voltage bar
