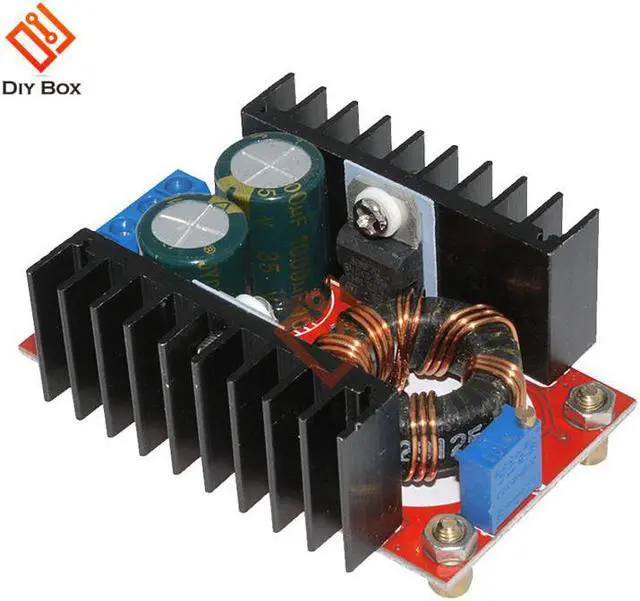

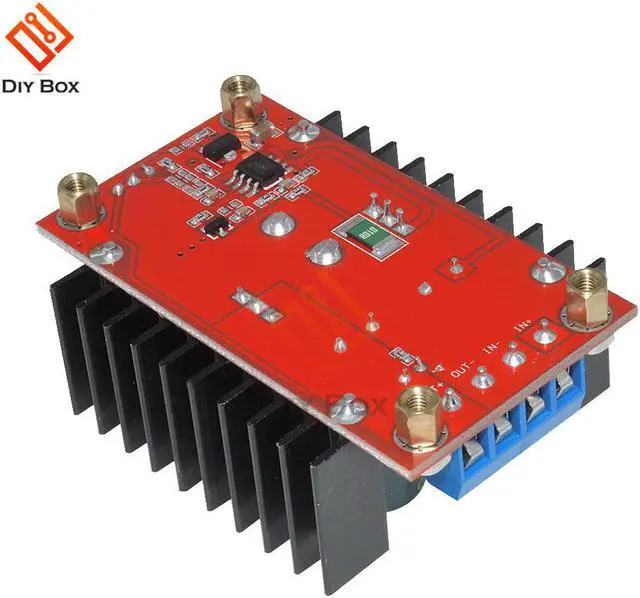

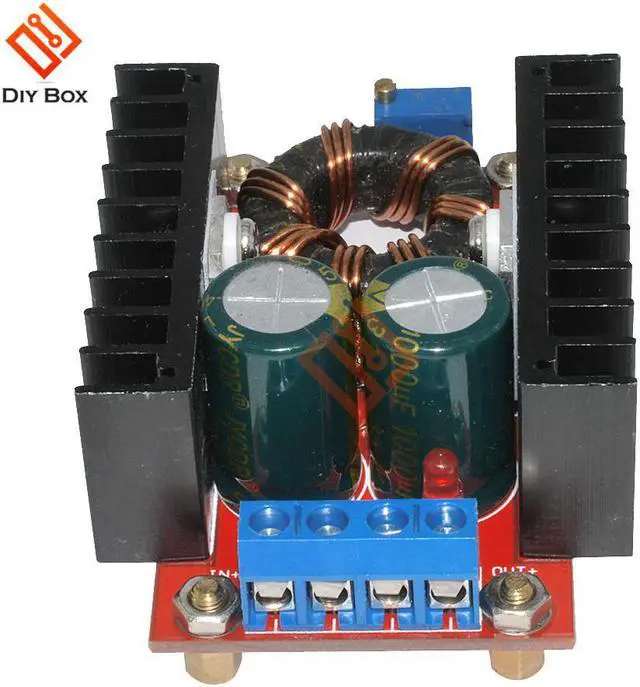

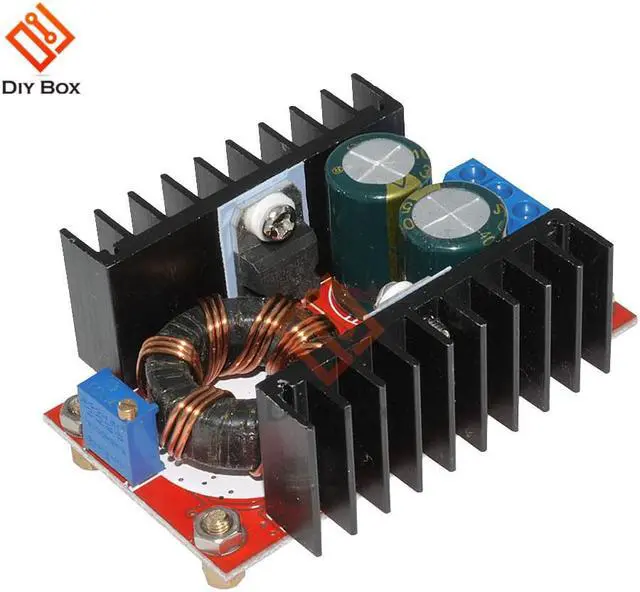

150W DC-DC 10-32V to 12-35V 24V Step Up Boost Converter Module Adjustable Static Power Supply Voltage Regulator Step Up Module

Origin:CN(Origin)
Usage:Monitors
Output voltage:12-35V
Output Type:DC
model:150W DC-DC 10-32V to 12-35V
Output current:10A

150W DC-DC 10-32V to 12-35V 24V Step Up Boost Converter Module Adjustable Static Power Supply Voltage Regulator Step Up Module
Input voltage :10-32V
Output voltage: 12-35V (adjustable)
Output Current: 10A (MAX)
Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V drive 19V 3.42A notebook, the module temperature about 45°c
Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45°c
No-load current: 25mA typical
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Applications:
DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable ly), However, the output voltage can not be less than the input voltage.
Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
Boost charger. You can use the 12V power supply to charge more than 12V, for example, 24V batter
